600V Electronic Water Pump video

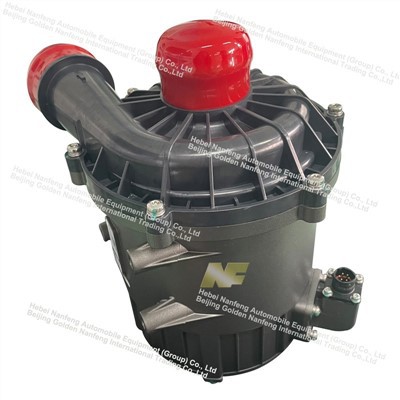

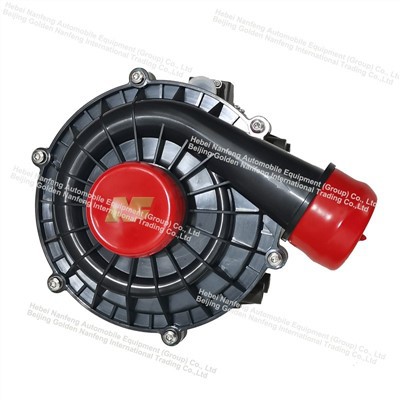

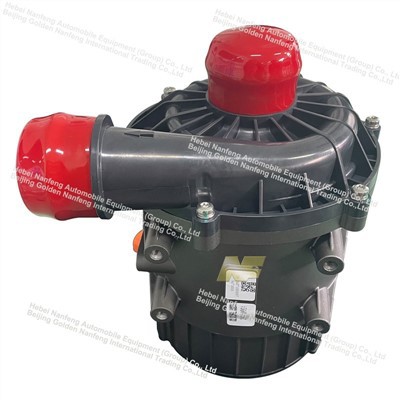

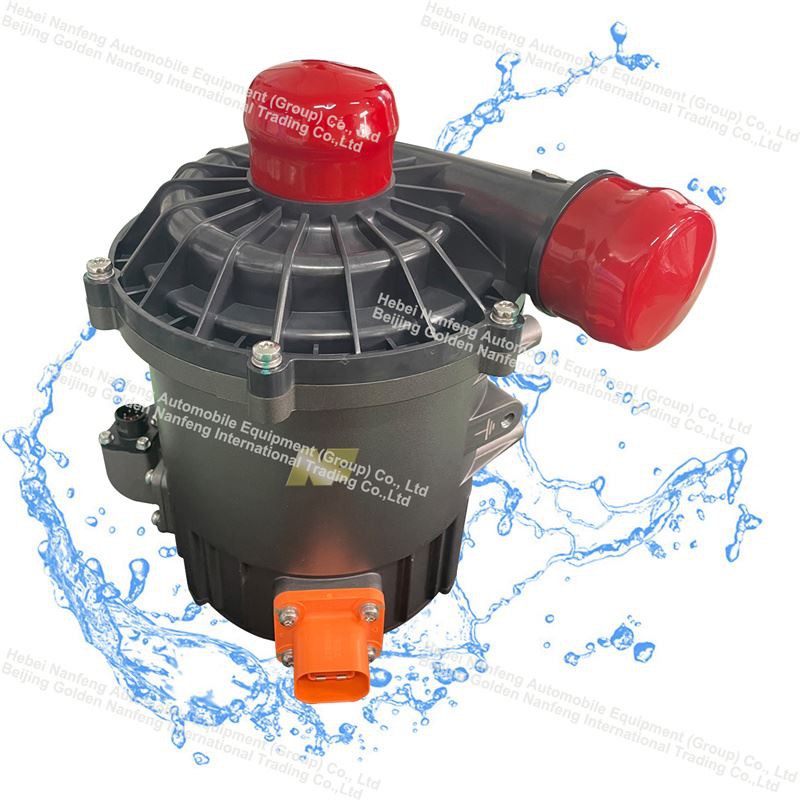

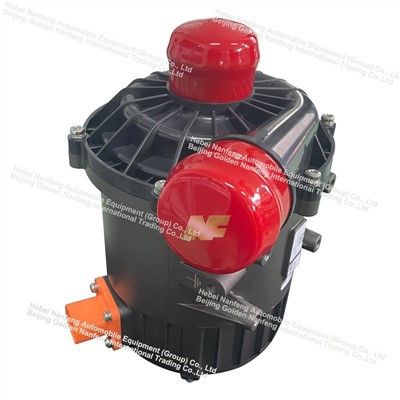

600V Electronic Water Pump

NF's new energy electric water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries, and other electrical appliances in new energy (hybrid and pure electric vehicles).

Description

600V Electronic Water Pump



Products Description

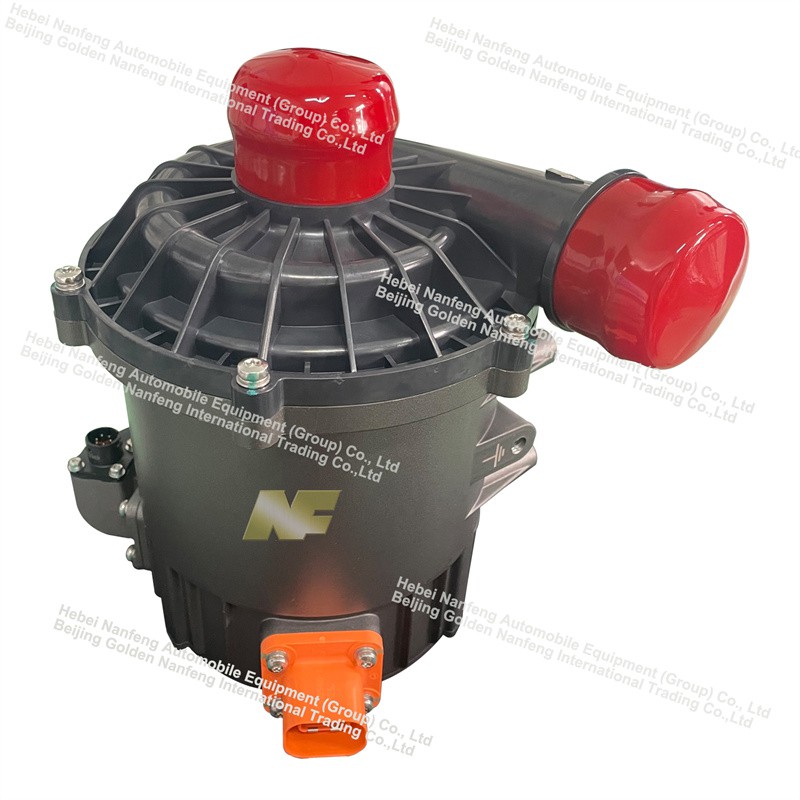

electric bus water pump

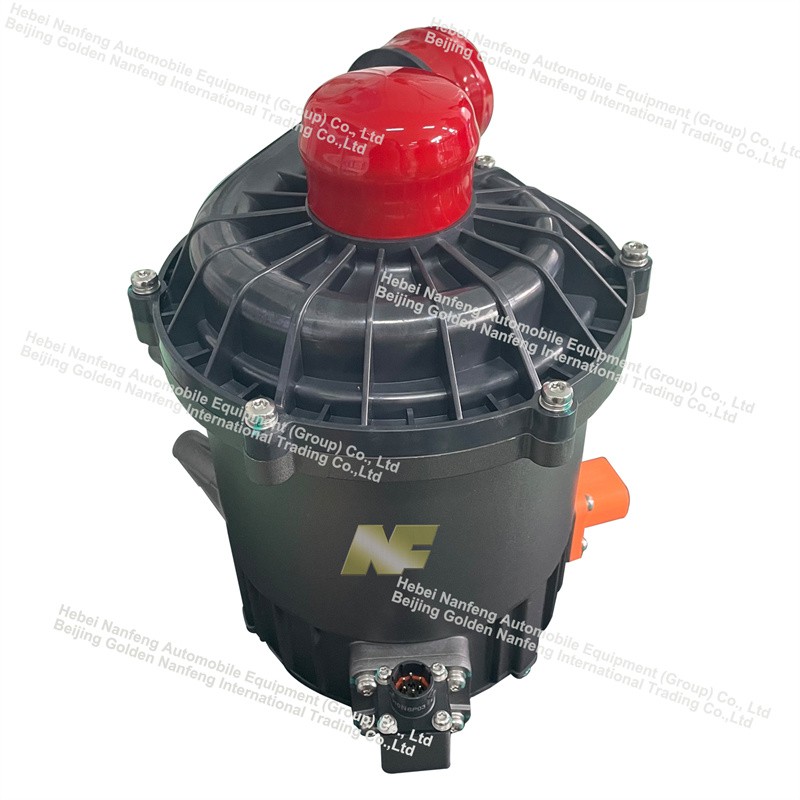

electronic brushless water pump

Electric Water Pumps consist of the pump head, impeller, and brushless motor, and the structure is tight, and the weight is light.

NFHS-030-256H electronic water pump mainly provides power for circulating, heat dissipation medium of the fuel cell systems.



This kind of high voltage electronic water pump has advantages as follows:

1. Shielded structure, low noise, and high reliability;

2. Brushless motor and long service life;

3. Low power consumption and high efficiency;

4. Dielectric insulation;

5. High voltage water pump control.



NFHS-030-256H water pump is our company's latest product developed in 2024, especially suitable for hydrogen energy vehicles.



Products Parameters



OE NO. 02.03.256H
Car Model Fuel cell system, energy storage vehicle, hydrogen fuel vehicle
Rated voltage 600V DC
Rated speed 4800rpm
Input power ≤2500W
Rated point flow 385L/min@18m
Maximum head ≥27m
Weight 8.2kg
Service life ≥30000h
Waterproofing Grade IP67
Communication method CAN2.0
Insulation resistance ≥50MΩ @1000VDC



Products Size

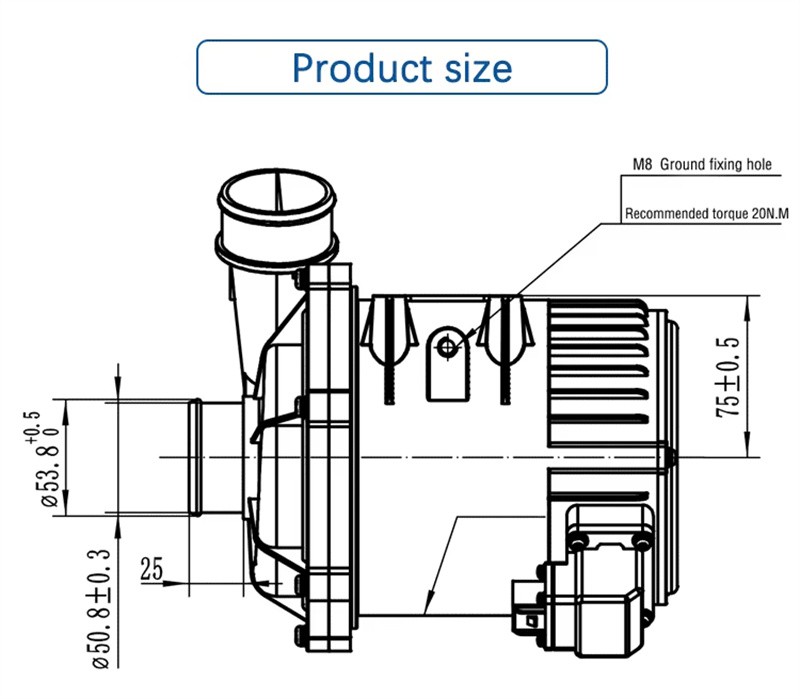

electric water pump size

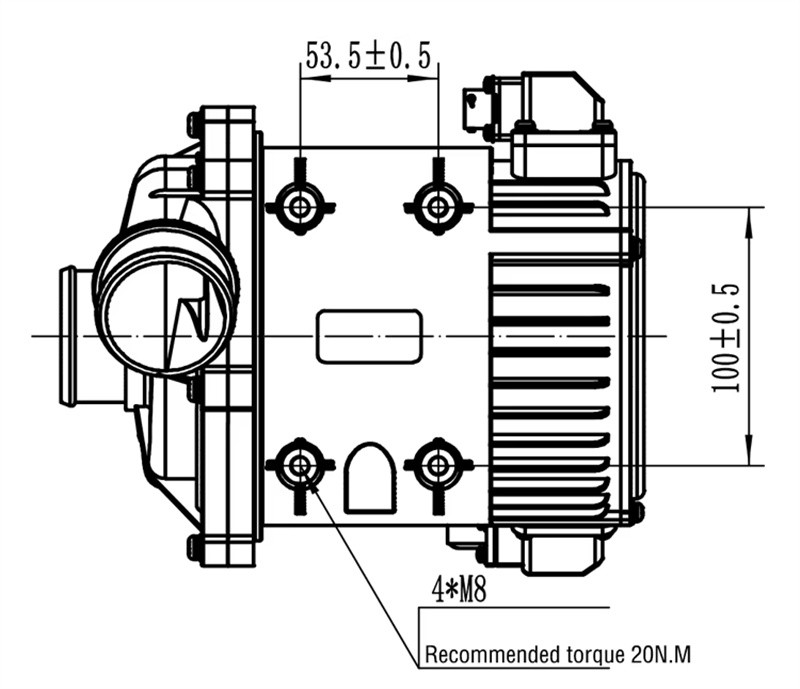

electronic water pump size

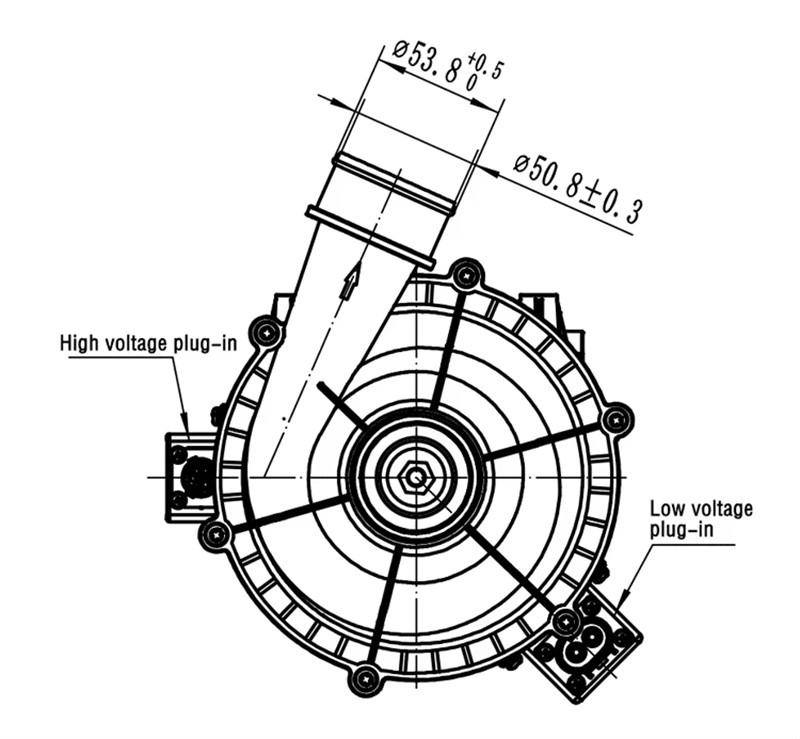

new energy water pump size



Products Details

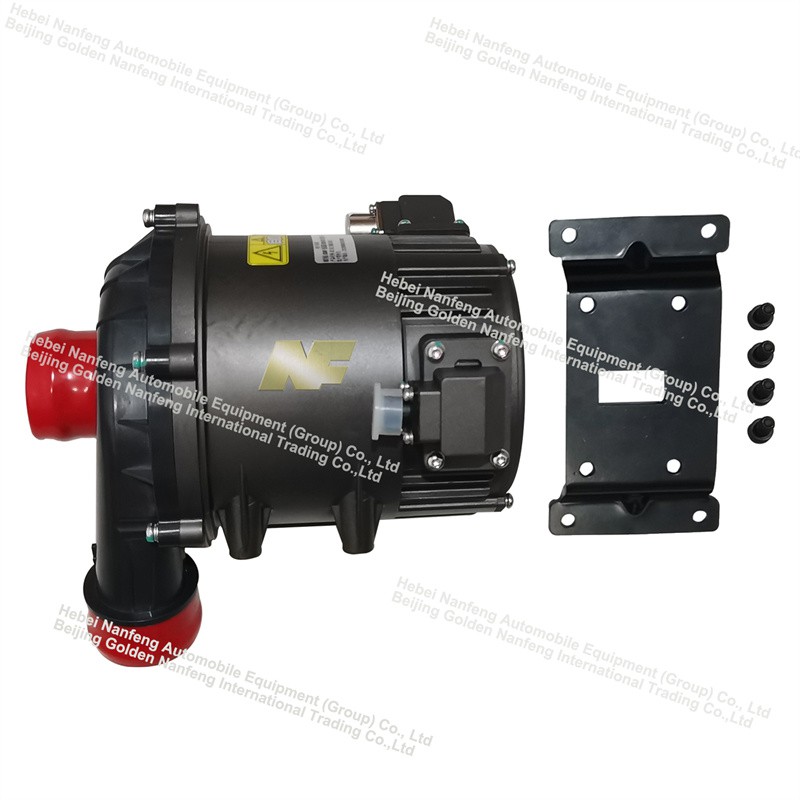

electronic car liquid water pump

electronic water pump

new energy coolant pump

electric car liquid water pump

electric car water pump

coolant water pump

Products Application

electronic water pump application



Our Company

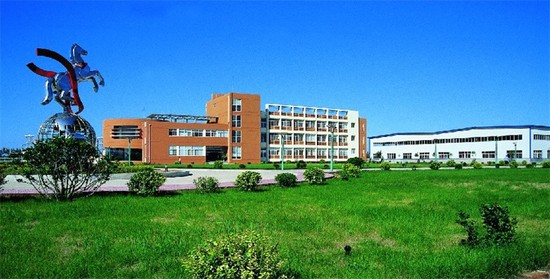

Hebei Nannfeng Company

Hebei Nanfeng Automobile Equipment (Group)Co., Ltd was established in 1993, which is a group company with 6 factories and 1 international trading company.We are the biggest vehicle heating & cooling system manufacturer in China and the designated supplier of Chinese military vehicles. Our main products are high-voltage coolant heaters, electronic water pumps, plate heat exchangers, parking heaters, parking air conditioners, etc.

Our factory's production units are equipped with high-tech pieces of machinery, strict quality control testing devices, and a team of professional technicians and engineers endorsing the quality and authenticity of our products.

In 2006, our company has passed ISO/TS 16949:2002 quality management system certification. We also bagged the CE certificate and E-mark certificate making us among the only few companies in the world acquiring such high-level certifications. Currently being the largest stakeholders in China, we hold a domestic market share of 40% and then we export them around the globe, particularly in Asia, Europe, and the  Americas.

Meeting the standards and demands of our customers has always been our top priority. It always encourages our experts to continuously brainstorm, innovate, design, and manufacture new products, impeccably suitable for the Chinese market and our customers from every nook of the world.

If you're looking for the 600v electronic water pump, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
