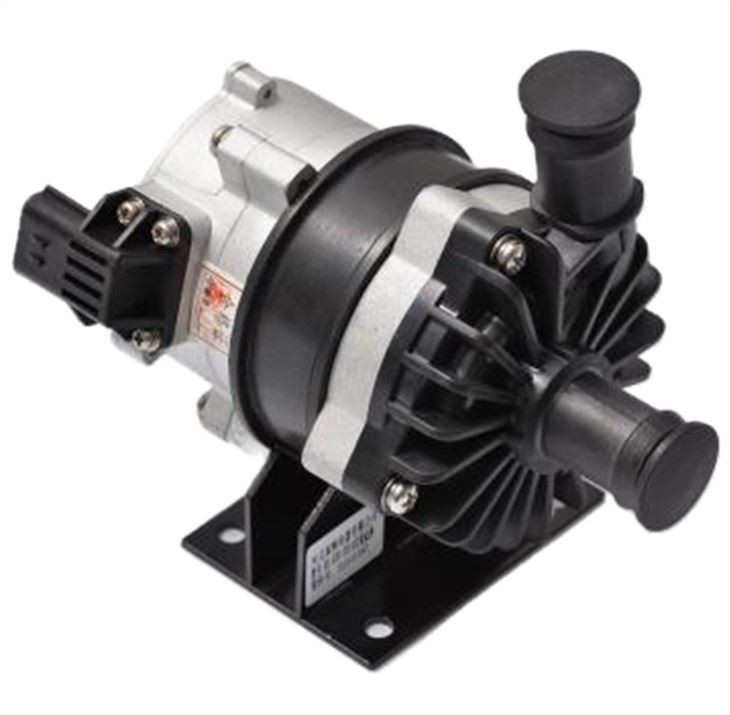

Automotive Electric Water Pump
NF Automotive Electric Water Pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
Description
Automotive Electric Water Pump
Product Introduction
Automotive Electric Water Pump is specially design for heat sink cooling system and air condition circulation system for new energy automobile.
Its operating principle is that the impeller is mounted on the rotor of the motor, the rotor and stator are separated by a shield sleeve, and the heat generated by the motor can be derived through the cooling medium. High as a result, its working environment adaptability, can adapt to 40 ºC ~ 100 ºC ambient temperature, the life span of more than 6000 hours.
Product Parameter
| Model Number | HS- 030-201A |
| Ambient Temperature | -40ºC~+100ºC |
| Medium Temp | ≤90ºC |
| Rated Voltage | 12V |
| Voltage Range | DC9V~DC16V |
| Waterproofing Grade | IP67 |
| Service life | ≥6000h |
| Noise | ≤50dB |
| Load Power | 85W(when the head is 5m) |
| Flowing | Q=1500L/H ( when the head is 5m) |
Packing and Shipping
Product Application
