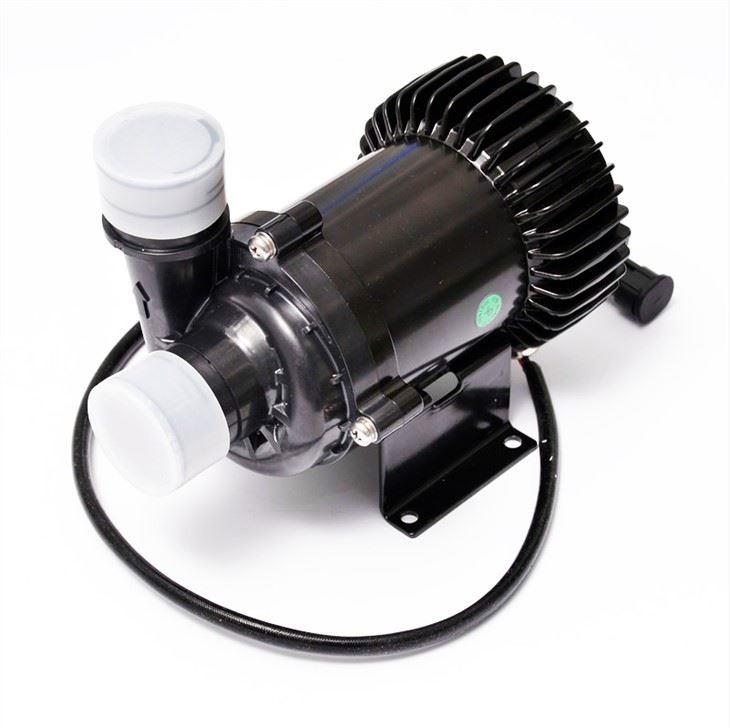

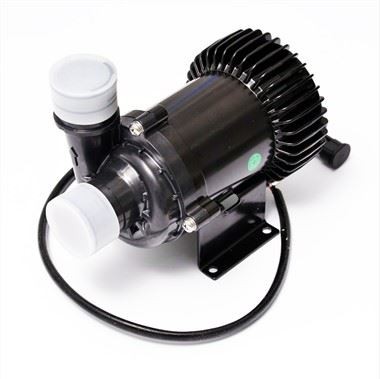

Commercial Vehicle Electric Water Pump

Commercial Vehicle Electric Water Pump

1、Product Introduction

The electronic water pump produced by NF mainly consists of several parts, such as pump cover, impeller rotor assembly, stator bushing component, casing stator component, motor driving plate and heat sink back cover, which are compact in structure and light in weight.

2、Product Parameter

Model Number	HS- 030-602A
Ambient Temperature	-50ºC~+125ºC
Rated Voltage	24V
Voltage Range	18V~32V
Waterproofing Grade	IP68
Service life	≥20000h
Noise	≤60dB
Current	≤10A

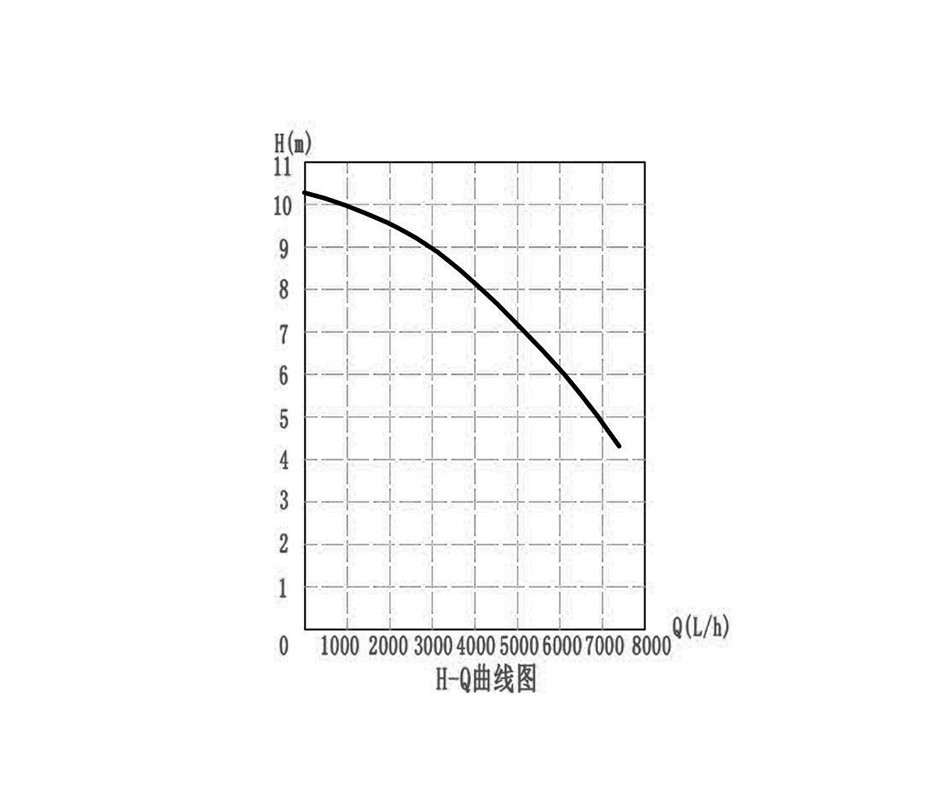

Flowing	6000±5% L/h(When head is 6m)
Load Power	100W-215W

3、Product Feature

(1)Constant power: The water pump power is basically constant when the supply voltage dc24v-30v changes;

(2)Overtemperature protection: When the environment temperature over 100 ºC (limit temperature), the pump start self protection function, in order to guarantee the life of the pump, it is recommended the installation in the low temperature or air flow better location);

(3)Over-voltage protection: The pump enters DC32V voltage for 1min, the internal circuit of the pump is not damaged;

(4)Blocking rotation protection: When there is entry of foreign material in the pipeline, causing the water pump to plug and rotate, the pump current suddenly increases, the water pump stops rotating (the water pump motor stops working after 20 restarts, if the water pump stops working, the water pump stops working), the water pump stops working, and the water pump stops to restart, the water pump and restart the pump to resume normal operation;

(5)Dry running protection: In the case of no circulating medium, the water pump will operate for 15min or less after full startup;

(6)Reverse connection protection: The water pump is connected to the DC28V voltage, the polarity of the power supply is reversed, maintained for 1min, and the internal circuit of the water pump is not damaged;

(7)PWM speed regulation function;

(8)Output high level function;

(9)Soft start.

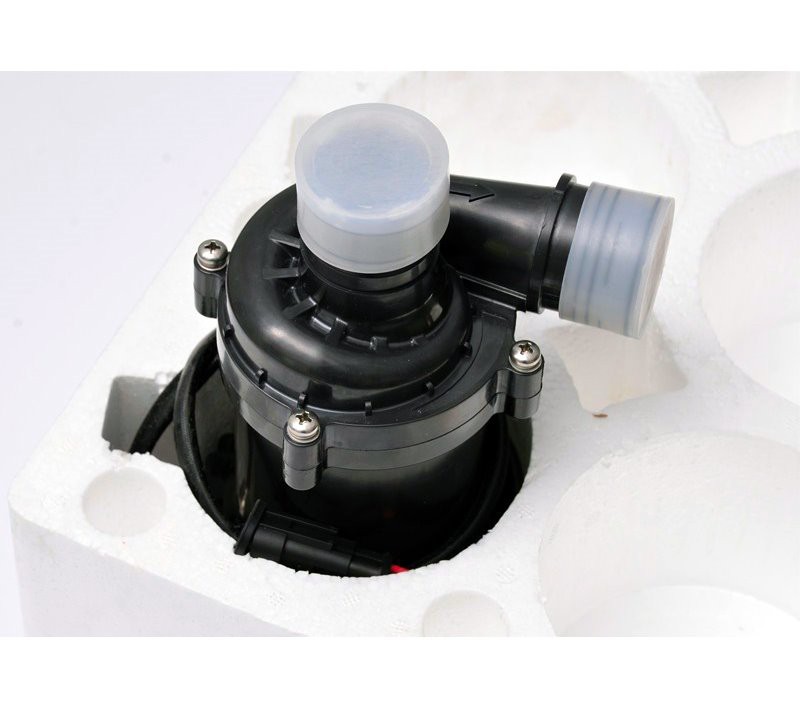

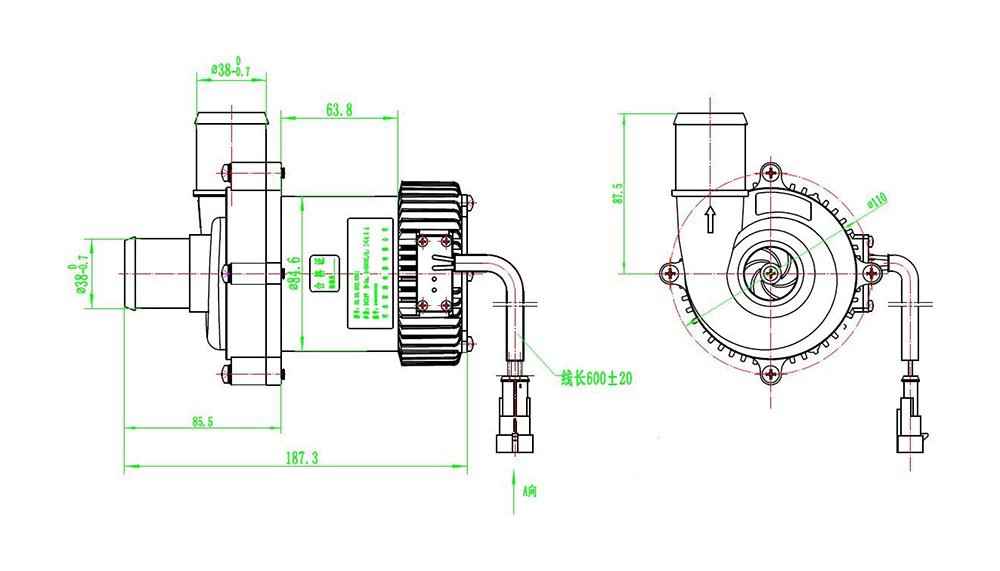

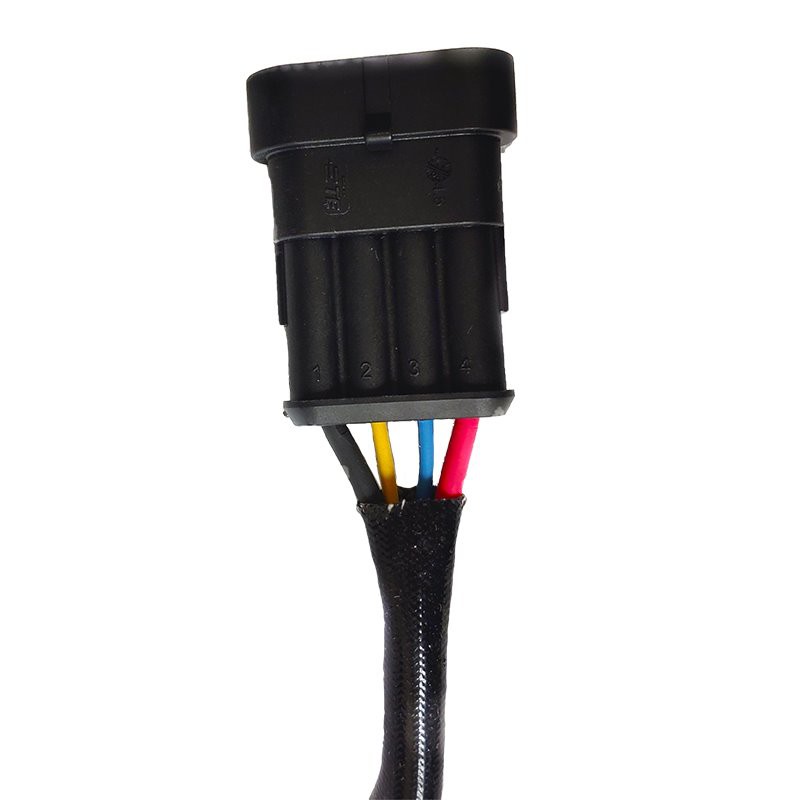

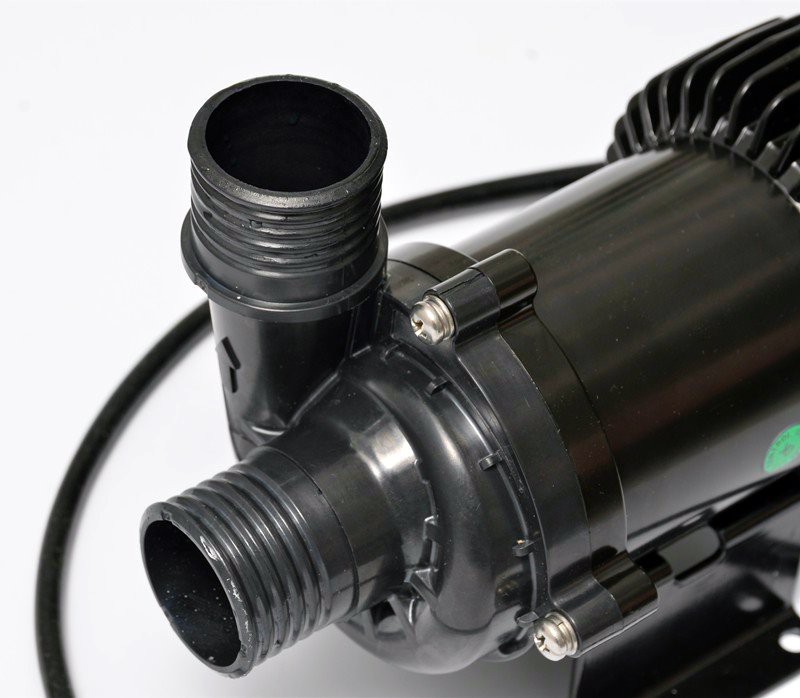

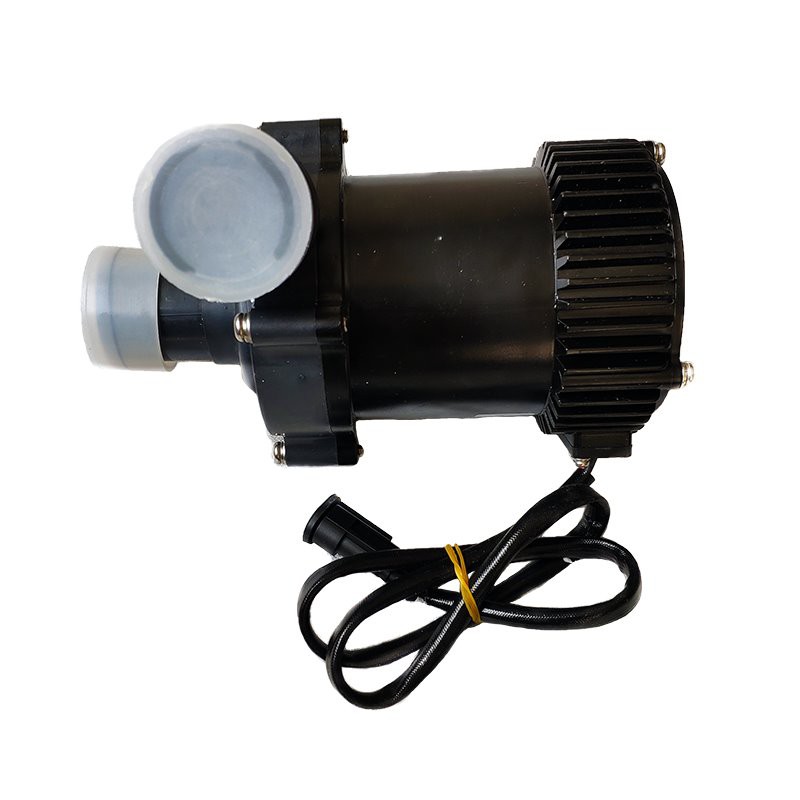

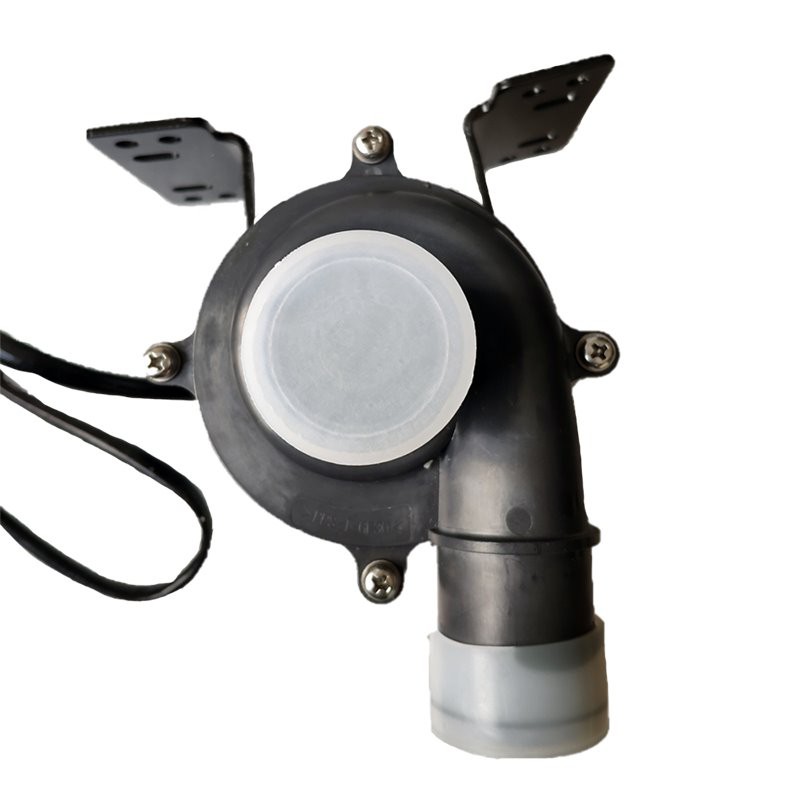

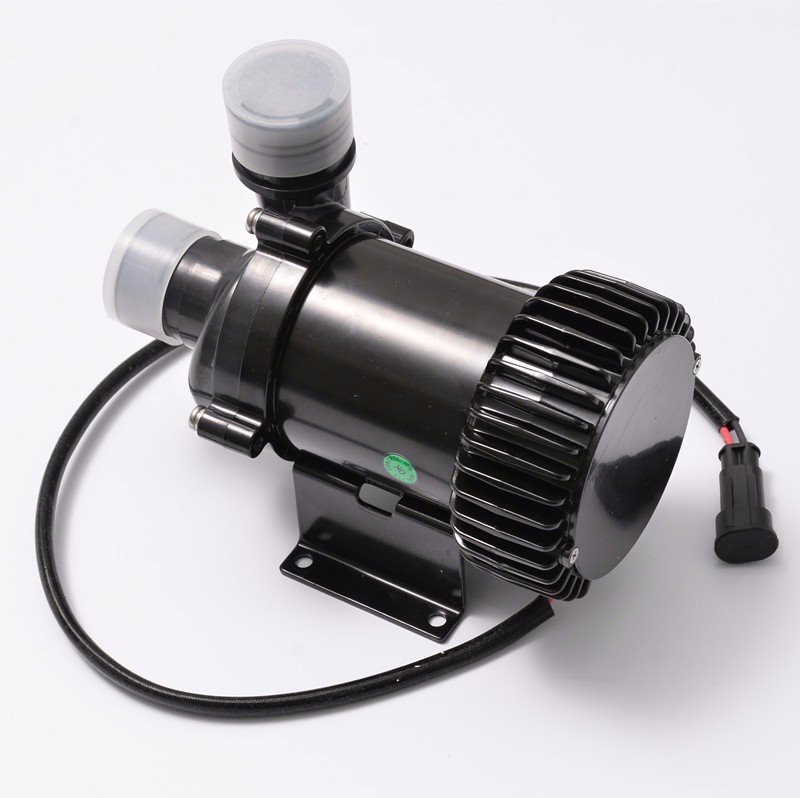

4、Product Detail

5、Working Principle

Its working principle is that the impeller and rotor assembly are integrated, the rotor and stator are separated by shielding sleeve, and the heat generated by the rotor in the medium can be exported through the cooling medium.

So, its high working environment adaptability, can adapt to 40 ºC ~ 95 ºC environment temperature. The pump is of high strength and abrasion resistant material with a service life of more than 20000hour.

6、Product Application

7、FAQ

(1)Q:Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, and our company has been established for over 30 years.

(2)Q: What’s your tem of the delivery?

A: Our ordinary delivery term is FOB Beijing. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

(3)Q:What's your products?

A:We have air parking heater、water parking heater、caravan air and water combi heater、electric vehicle parts、heater parts、parking air conditioner.

(4)Q:Where is your factory located?

A:In Nanfeng industry area, Cangzhou city,China.

(5)Q:How to solve the equipment trouble during using ?

A:Please email us about problem with pictures or a small video will be better,we will find the problem and solve it.
