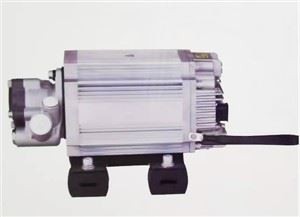

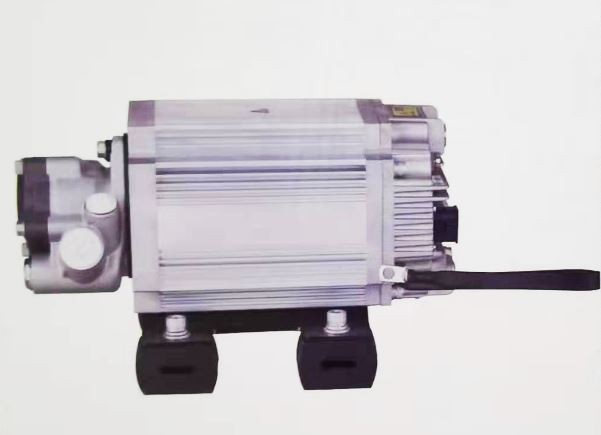

Electric Bus Motor Pump

Electric Bus Motor Pump

Technical Data

Model	Motor rate    power	Motor rated      voltage	Motor phase      current	Rated torque	Level
EHPS-1010R1.5/89C	1.5KW	237VAC	5A	8.5N·m	Level 10
EHPS-0908R1.5/52	1.5KW	353VAC	6.5A	8.5N·m	Level 10
EHPS-1313R1.5/11A	1.5KW	353VAC	4A	11.9N·m	Level 10
EHPS-1112R1.5/11B	1.5KW	237VAC	8A	11.9N·m	Level 10
EHPS-1313R2.2/23A	2.2kw	353VAC	6.5A	17.5N·m	Level 8
EHPS-1316R2.2/23	2.2kw	237VAC	10A	17.5N·m	Level 8
EHPS-1521R3/21	3kw	353VAC	10A	30N·m	Level 8
EHPS-1416R3/19	3kw	237VAC	12A	30N·m	Level 8
EHPS-1523R5/27A	5kw	353VAC	15A	31.83N·m	Level 8
EHPS-1010R0.5/30	0.5kw	12VDC	50A	5N·m	Level 8
EHPS-1311R1.5/79	1.5kw	240-450VDC	6.5A	11.9N·m	Level 10
EHPS-1417R3/43A (Dual source one machine)	3kw(High pressure side)	353VAC	8A	19.1N·m	Level 8
	1kw (low pressure side)	17VAC	60A	6.5N·m	Level 8

Features

Ø Compact structure, small size and light weight;

Ø Simple structure, high cost performance and long service life;

Ø Protection class: IP67 and above, insulation class: H;

Ø Low noise, energy saving and environmental protection;

Ø High power factor, good natural air cooling;

Ø Simple control mode, strong overload capacity;

Ø The dual-source all-in-one product has strong emergency response capability and no delay in switching;

Suitable for vehicles

Suitable for electric buses, electric trucks, electric engineering vehicles, etc.
