12V Intelligent Integrated Pump For Electric Bus
The 12V Intelligent Integrated Pump can be used on electric bus,truck and engineering vehicles and so on.
Description

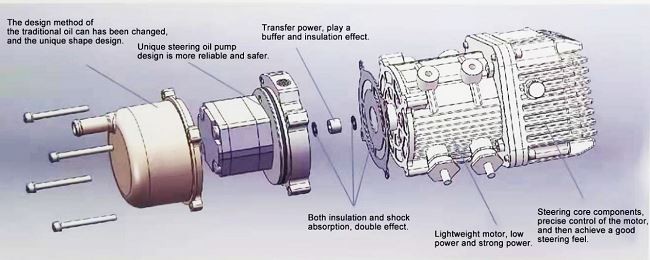

 | The design method of the traditional oil can has been changed, and the unique shape design. |
| Unique steering oil pump design is more reliable and safer. |
| Transfer power, play a buffer and insulation effect. |
| Both insulation and shockabsorption, double effect. |
| Lightweight motor, low power and strong power. |
| Steering core components, precise control of the motor, and then achieve a good steering feel. |
Technical data:
| Model | Dimensions | Installation size | Weight | Applicable pressure | |
 | 1.5kw89# | 280*151*175 | 87*146mm | 12kg | Below 11MPa Maximum flow 10L/min |
 | 1.5kw11A | 330*200*210 | 140*160mm | 17kg | Below 13MPa Maximum flow 12L/min |
 | 2.2kw | 310*200*230 | 140*160mm | 17.5kg | Below 14MPa Maximum flow 13L/min |
 | 3kw | 360*230*240 | 140*190mm | 25kg | Below 19MPa Maximum flow 19L/min |
 | 5kw | 360*230*240 | 140*190mm | 25kg | 20MPa or less Maximum flow 28L/min |
 | 0.5kw | 173*130*290 | 46*86mm | 6.5kg | Below 11MPa Maximum flow 10L/min |
 | 1.5kw | 334*186*181.5 | 87*146mm | 13kg | Below 13MPa Maximum flow 10L/min |
 | 3kw | 430*230*240 | 140*190mm | 23.5kg | Below 19MPa Maximum flow 19L/min |
