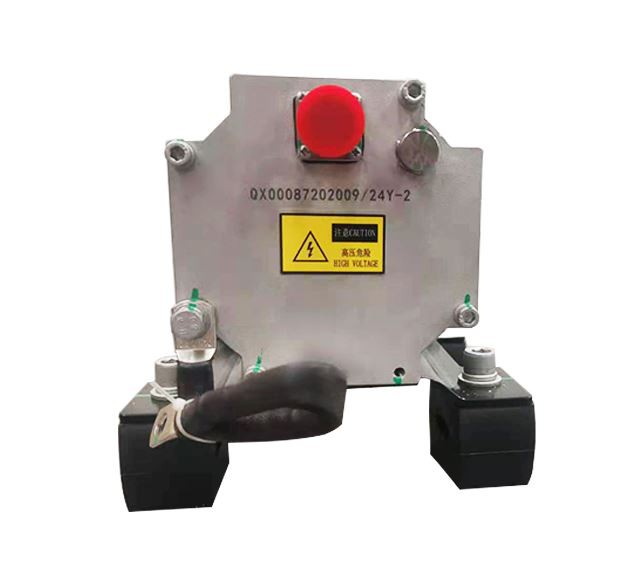

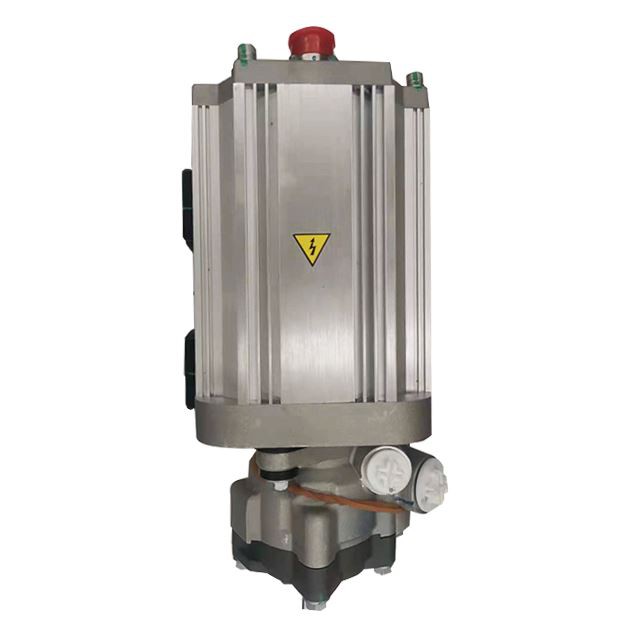

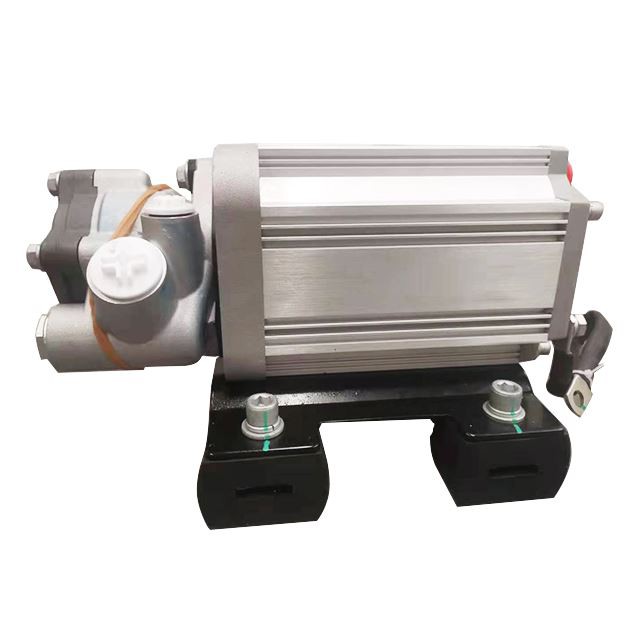

1.5KW Single-source Electric Bus Steering Pump
This electric bus steering pump is 1.5K single source.
Mainly used for vehicles under 7 meters.
Description
Suitable vehicles:
 | 1.5KW single source, mainly used for vehicles under 7 meters |
Features:
| Compact structure, small size and light weight; |
| Simple structure, high cost performance and long service life; |
| Protection class: IP67 and above, insulation class: H; |
| Low noise, energy saving and environmental protection; |
| High power factor, good natural air cooling; |
| Simple control mode, strong overload capacity; |
| The dual-source all-in-one product has strong emergency response capability and no delay in switching; |
Technical data
| Model | Motor rated power | Motor rated voltage | Motor phase current | Rated torque | Level |
| EHPS-1010R1.5/89C | 1.5KW | 237VAC | 5A | 8.5N·m | Level 10 |
| EHPS-0908R1.5/52 | 1.5kw | 353VAC | 6.5A | 8.5N·m | Level 10 |
EHPS-1313R1.5/11A | 1.5kw | 353VAC | 4A | 11.9N·m | Level 10 |
| EHPS-1112R1.5/11B | 1.5kw | 237VAC | 8A | 11.9N·m | Level 10 |
