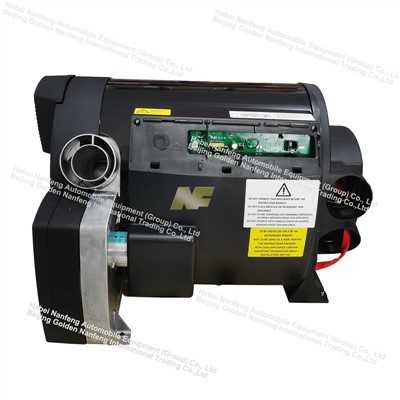

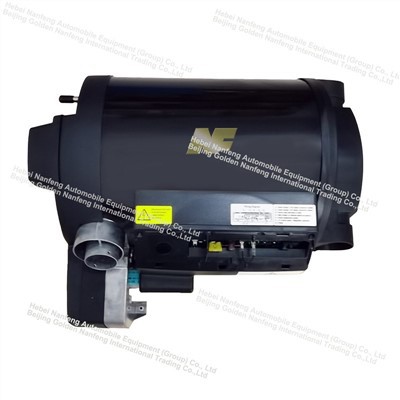

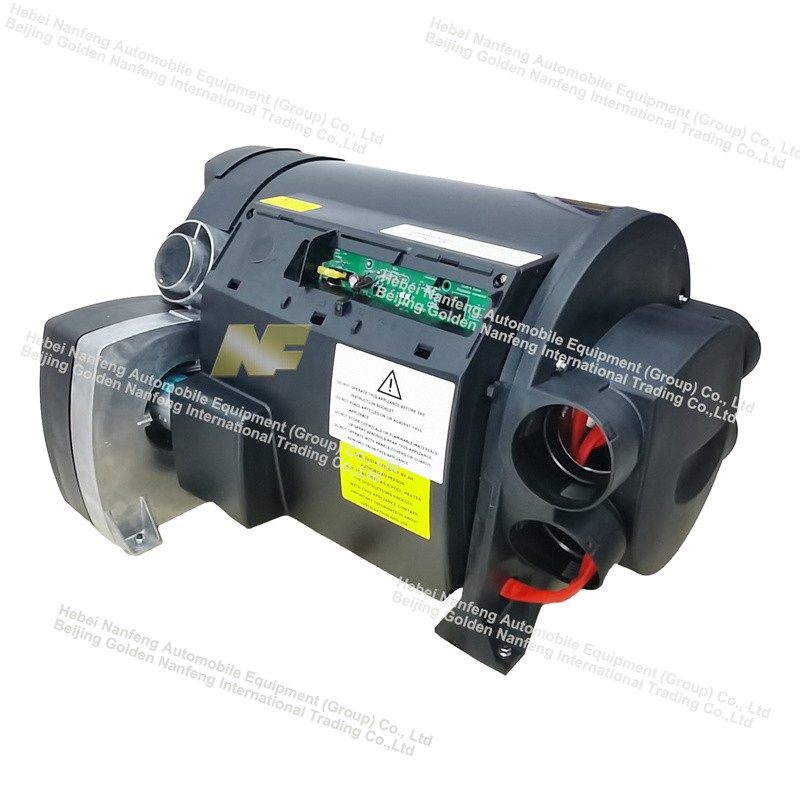

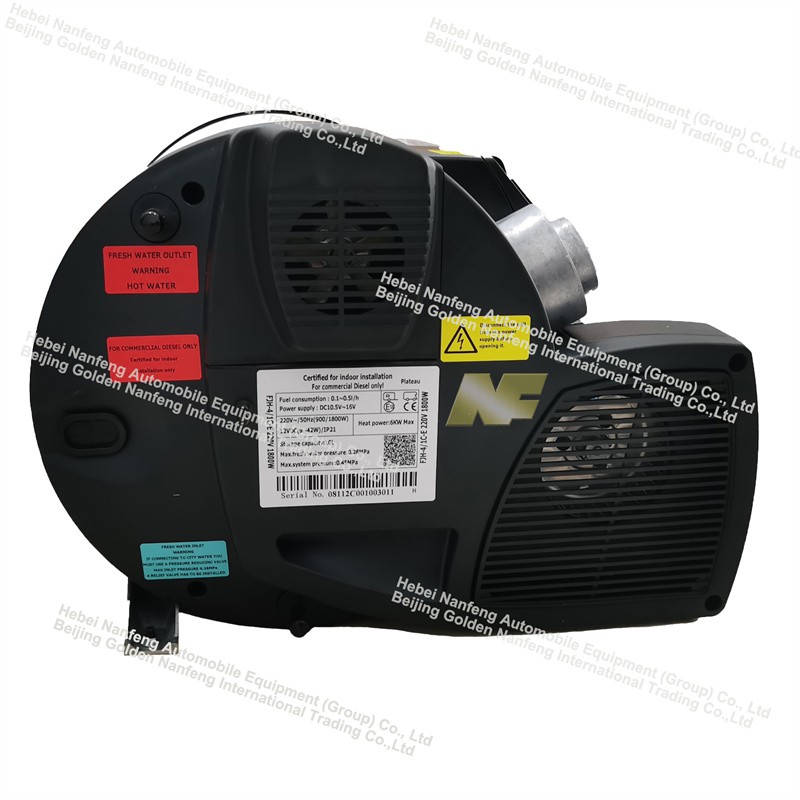

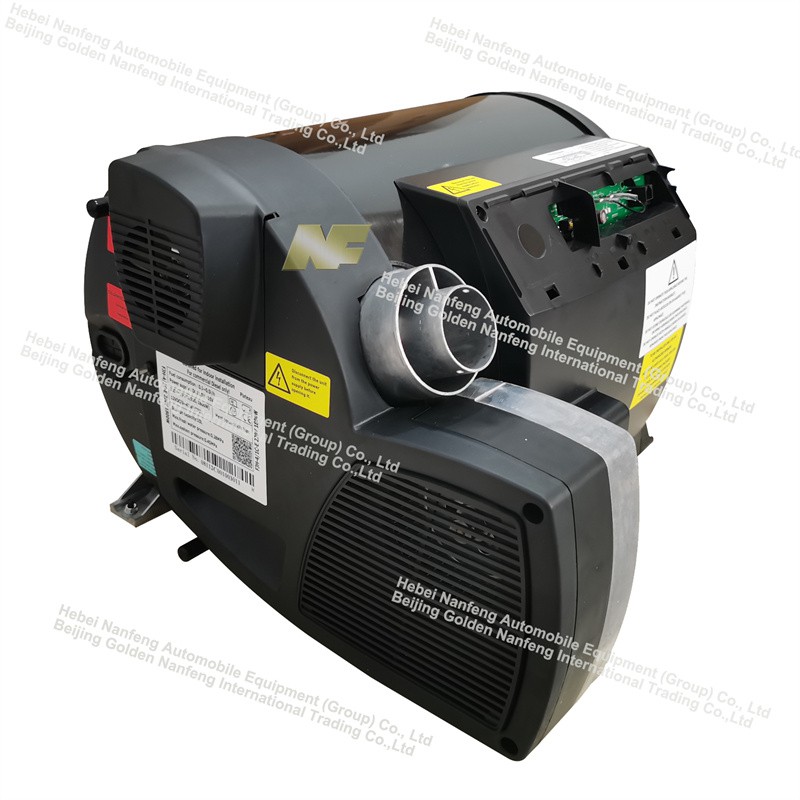

Diesel Gasoline LPG Air And Water Combi Heater
A water and air integrated heater for an RV is a special heater for a caravan that combines hot water and warm air. This heater cannot be used in buses or dangerous goods carriers. Hebei Nanfeng Group is the largest manufacturer of heating and cooling equipment in China and the designated supplier of Chinese military vehicles.
Description
Diesel, Gasoline, LPG, Air, and Water Combi Heater
Products Description
The RV air and water heater is a compact, multifunctional device designed specifically for RVs, integrating heating and hot water supply. It is driven by fuel or electricity, quickly generating heat energy through combustion, heating, or electric heating elements. It features a built-in high-efficiency heat exchanger that instantly heats cold water and simultaneously delivers warm air to the car through a fan, with adjustable temperature settings. The device has multiple safety protections (antifreeze, overheating, and CO monitoring), supports intelligent temperature control, and has an app remote control. It is suitable for all types of B/C RVs, addressing the heating and washing needs when parking in winter, and serves as an all-around life system solution for RVs.
Products Parameter
| Rated Voltage | DC12V |
| Operating Voltage Range | DC10.5V～16V |
| Short-term Maximum Power Consumption | 8-10A |
| Average Power Consumption | 1.8-4A |
| Fuel type | diesel/petrol |
| Gas Heat Power (W) | 2000 4000 |
| Fuel Consumption (g/h) | 240/270 |
| Gas Pressure | 30bar |
| Warm Air Delivery Volume m3/h | 287max |
| Water Tank Capacity | 10L |

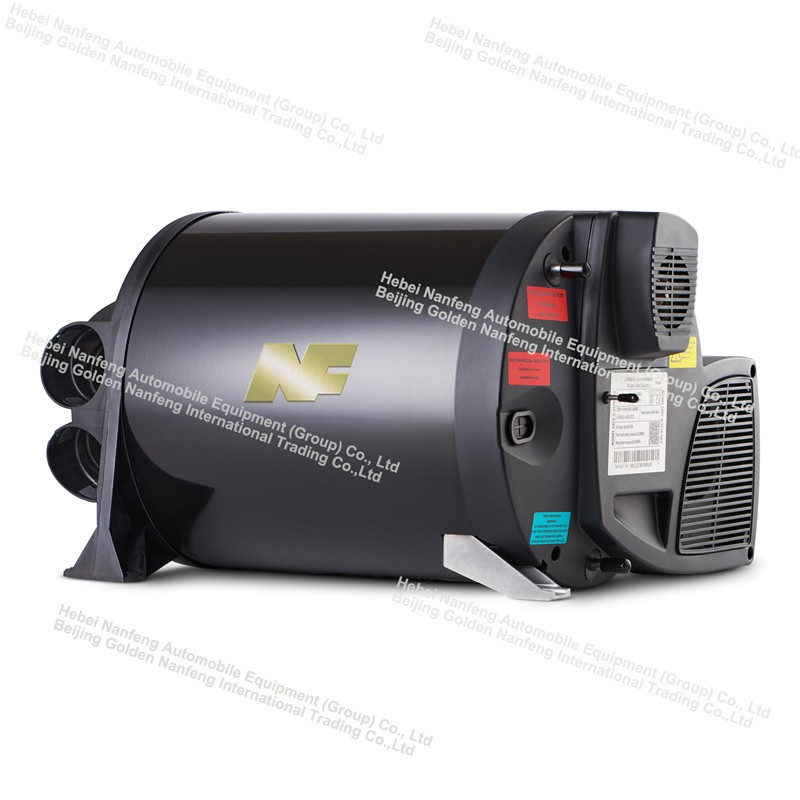

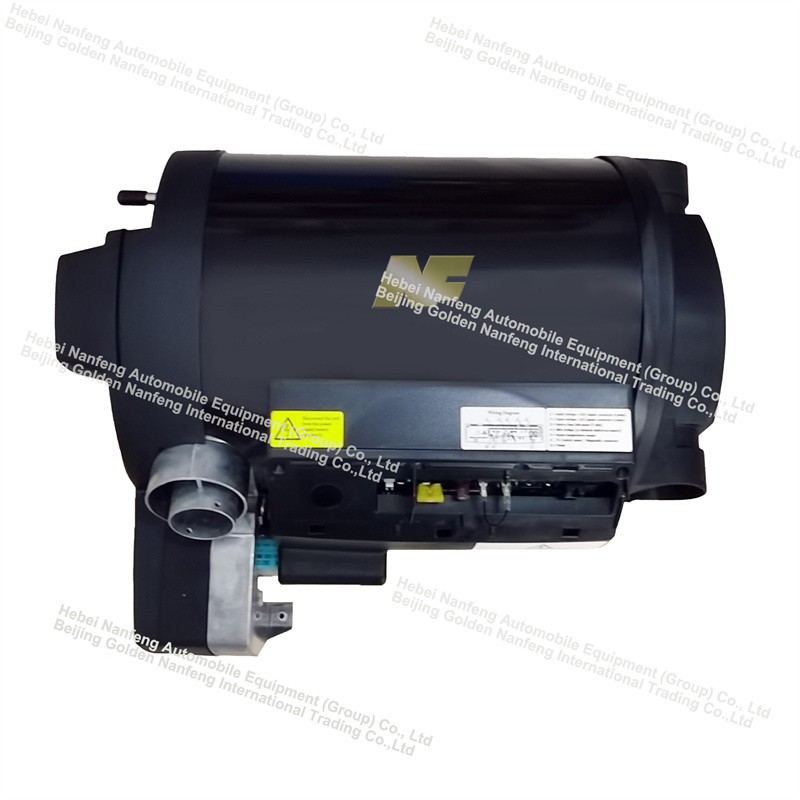

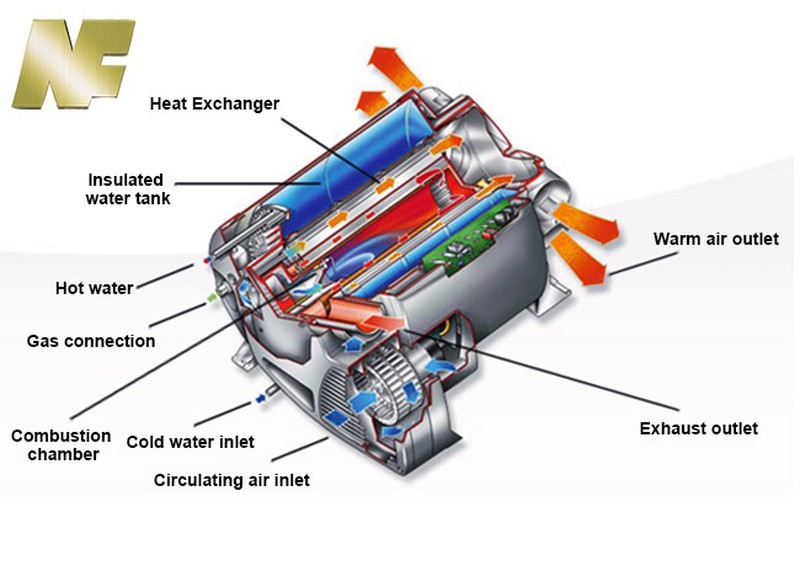

Caravan combi heater structure:

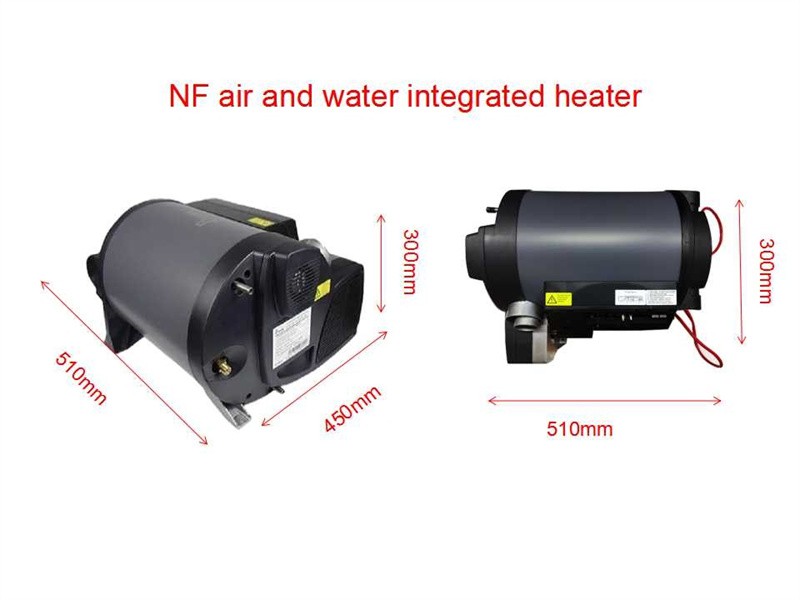

Caravan combi heater size:

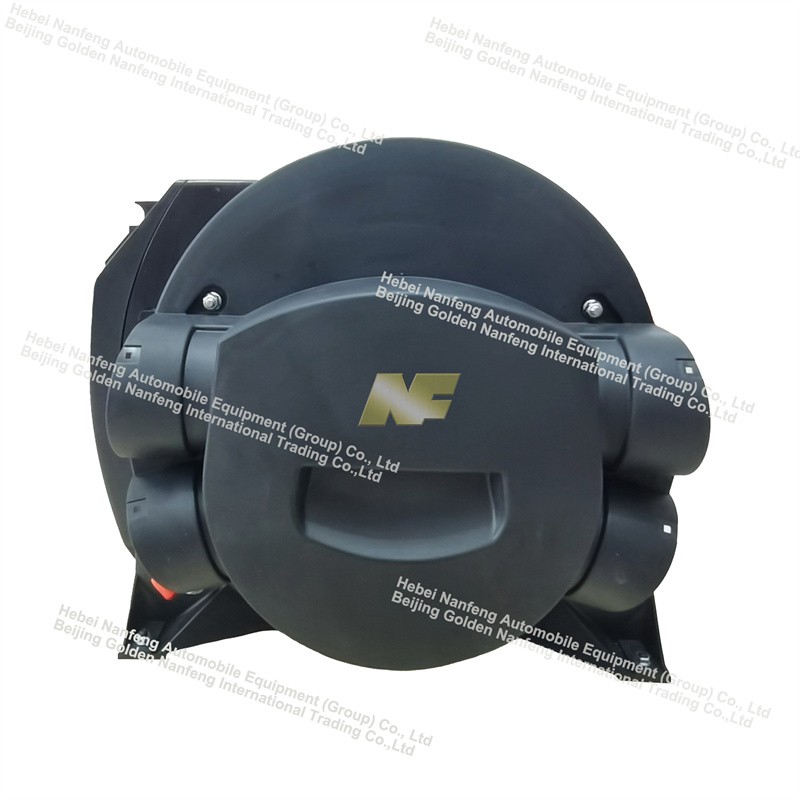

Products Details
Precautions for use
(1) Do not use the heater when refueling or in enclosed spaces (parking lots, garages, ferry ports, etc.). Regularly check the condition of the fuel filler pipe and exhaust pipe, especially after driving, and tighten them properly. Also, check the strength of the fuel filler pipe, exhaust pipe, and smoke plugs.
(2) If black smoke is detected, a certified specialist will come to inspect the vehicle. Make sure that the exhaust pipe and the air intake on the hood are not blocked by obstacles such as snow, ice, or fallen leaves. The hot air outlet and the internal air intake are open to prevent the heater from overheating. In the event of overheating, the overheating protection is activated, and the fuel supply is immediately cut off.

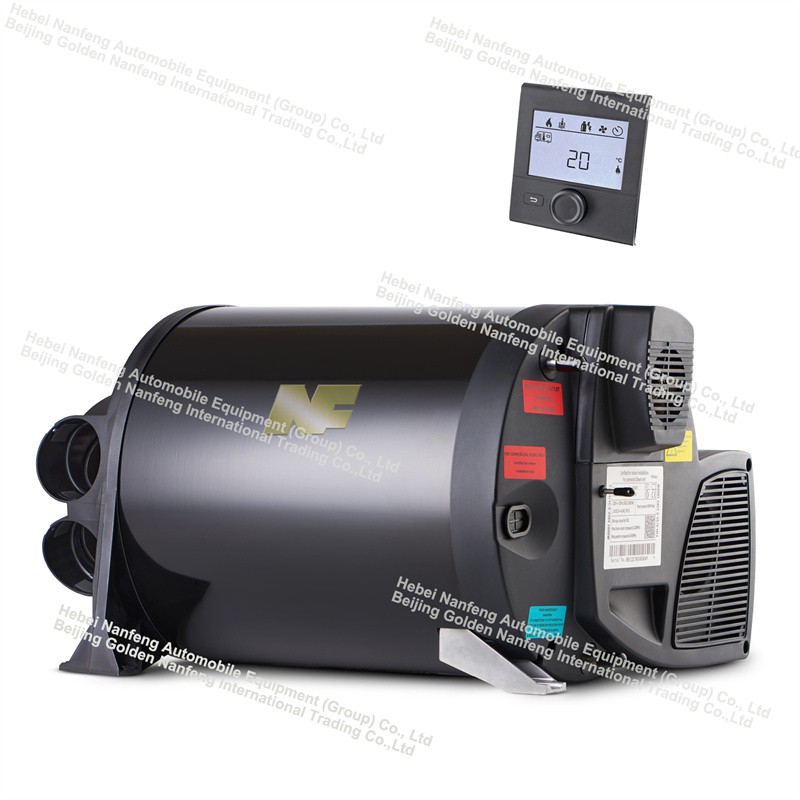

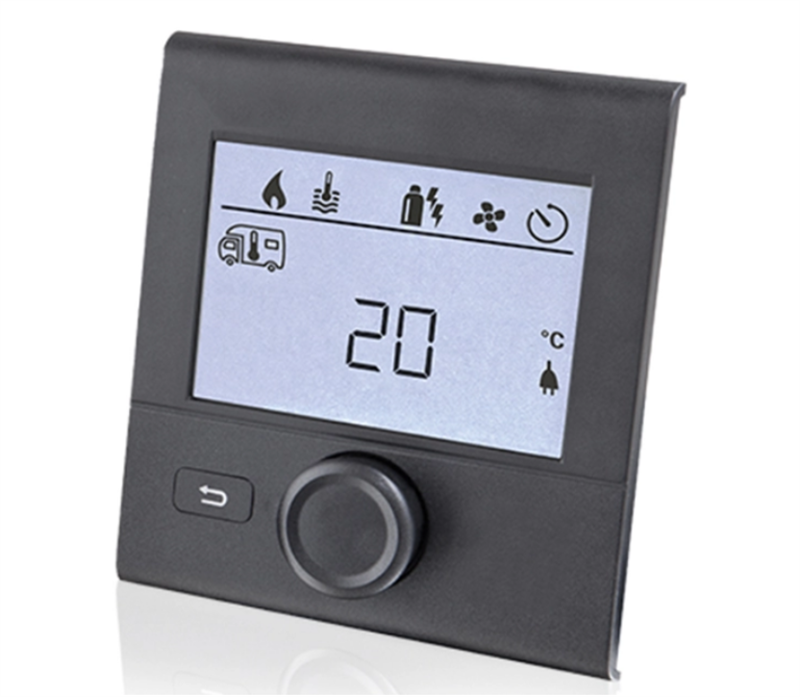

The RV hot water heater is controlled by a control panel, which is simple, easy to operate, and convenient to use.

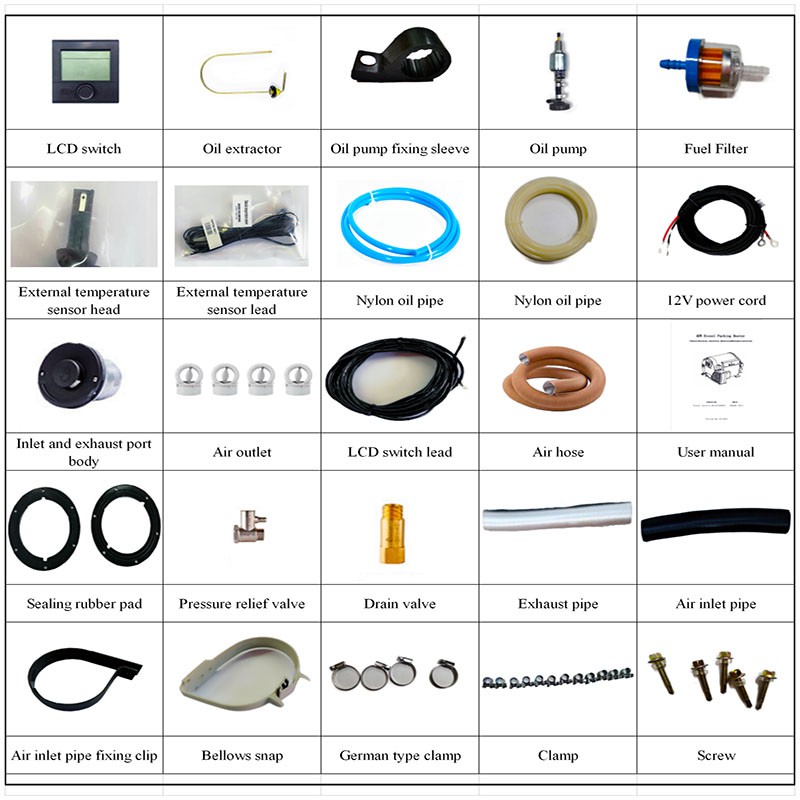

Caravan Combi Heater Spare Parts
Our caravan combi heater includes a full set of installation accessories. After receiving the goods, you can assemble them according to the instructions.

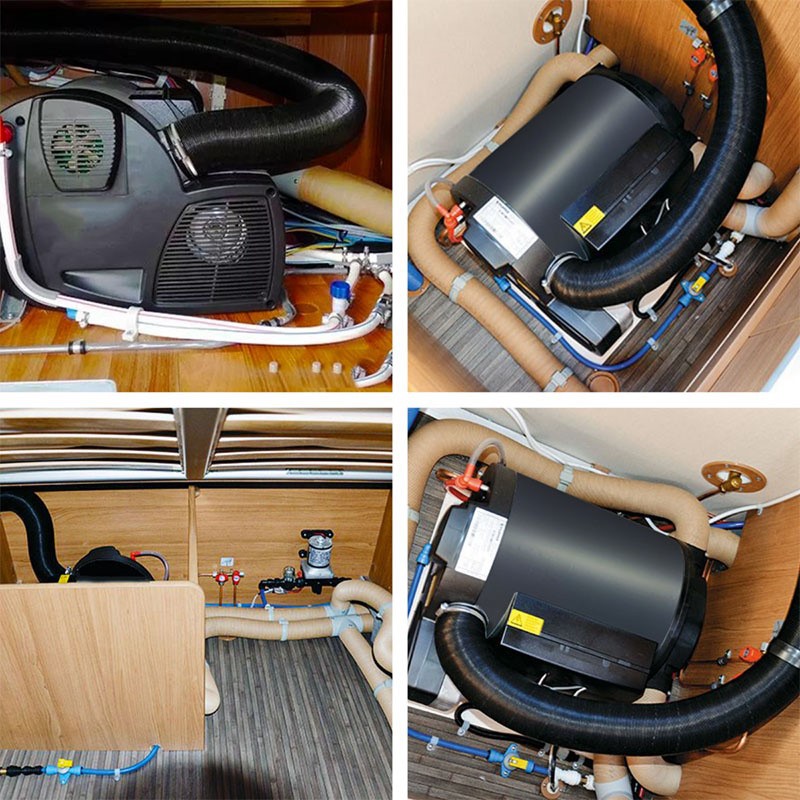

Products Application
Our Company
FAQ
1. Q: Is it a copy of Truma?
A: It is similar to Truma. And it is our technique for electronic programs.
2. Q: Is the Combi heater compatible with Truma?
A: Some parts can be used in Truma, such as pipes, air outlets, and hose clamps.heater house, fan impeller, and so on.
3. Q: Must the 4 pcs air outlets be open at the same time?
A: Yes, 4 air outlets should be open at the same time. But the air volume of the air outlet can be adjusted.
4. Q: In summer, can the NF Combi heater heat just water without heating the living area?
A: Yes.
Simply set the switch to summer mode and select 40 or 60 degrees Celsius water temperature. The heating system heats only water, and the circulation fan does not run. Output in summer mode is 2 KW.
5. Q: Does the kit include pipes?
A: Yes,
1 pc exhaust pipe
1 pc air intake pipe
2 pcs hot air pipes, each pipe is 4 meters.
6. Q: How long does it take to heat 10L of water for a shower?
A: About 30 minutes.
