6kw Diesel Air And Water Combi Heater

6kw diesel air and water combi heater



1、Product Introduction



The NF Campervan MotorhomeTruma Combi 4E Combination Boiler and Space Heater is a popular choice for heating both water and living spaces in your campervan, motorhome or caravan. The Combi heater is energy efficient and quiet in operation, and incredibly compact and lightweight for the performance it offers.



2、Product Parameter

Rated Voltage	DC12V
Operating Voltage Range	DC10.5V～16V
Short-term Maximum Power Consumption	8-10A
Average Power Consumption	1.8-4A
Fuel type	diesel/petrol
Gas Heat Power (W)	2000 4000
Fuel Consumption (g/h)	240/270
Gas Pressure	30mbar
Warm Air Delivery Volume m3/h	287max
Water Tank Capacity	10L
Maximum Pressure of Water Pump	2.8bar
Maximum Pressure of System	4.5bar
Rated Electric Supply Voltage	220V/110V
Electrical Heating Power	900W 1800W
Electrical Power Dissipation	3.9A/7.8A 7.8A/15.6A
Working (Environment) Temperature	-25℃～+80℃
Weight (kg)	15.6kg
Dimensions (mm)	510×450×300
Working Altitude	≤1500m



3、Product Size





4、Initial Installation
The heater is installed for the first time. In order to completely eliminate the air in the fuel supply system and make the fuel pipeline full of fuel, a separate pump function is specially designed. See LCD switch instructions for details.



Rinse the water tank with clean water before the heater is first installed and used. When the heater is not in use, please empty the water tank so as not to freeze the water tank. The company is not liable for damage to the water tank caused by freezing.



Open the circulating pump.



Open the hot tap in the kitchen and bathroom until the air is exhausted and the water tank is filled, and the water is not interrupted.



The heater should be tested before use. During the trial run, all connections should be carefully checked for leaks and security conditions. If there is smoke emission, abnormal combustion noise or fuel gas odor, the heater should be closed and the fuse should be pulled out so that it cannot operate. It can only be used after being inspected and repaired by professionals.



When the heater is first used, it may emit odor in a short time. This is normal in the first few minutes of operation, and it does not mean that the heater is out of function.



5、Heater life
The heat exchanger of the heater cannot be used for more than 10 years. Upon expiration, it must be replaced by genuine parts and replaced by the heater manufacturer or its authorized agent.



When the exhaust pipe of the heater discharges combustion exhaust gas for 10 years, it must be renewed with genuine parts.

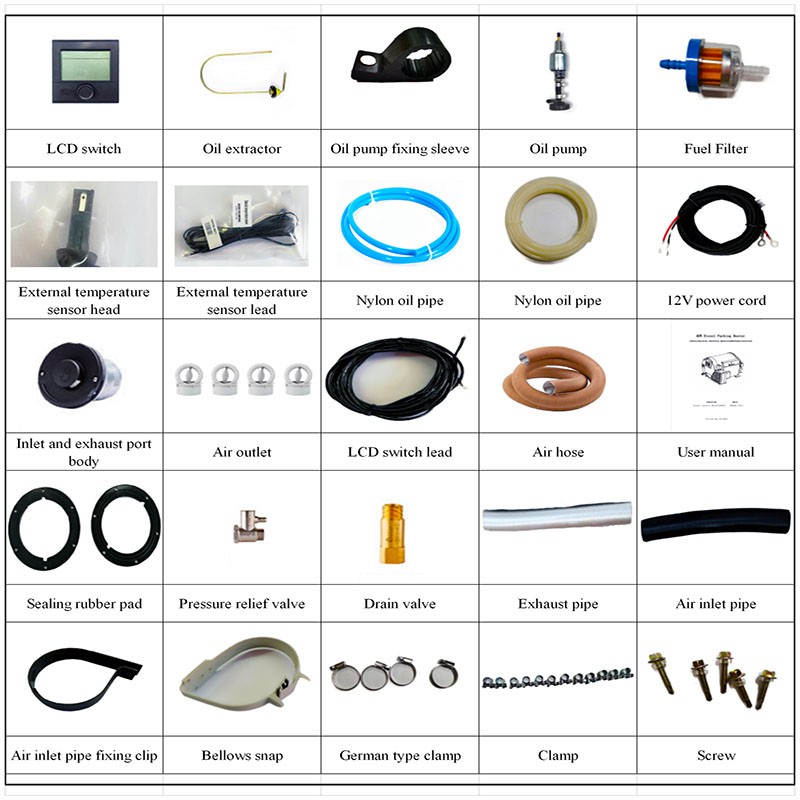

6、Parts





7、Our Advantage
1.Easy to installation
2.Smooth operating with no noise
3.Strict quality management system
4.Superior equipment
5.Professional services
6.OEM/ODM services
7.Offer sample
8.High quality products
1) Variety types for selection
2) Competitive price
3) Prompt delivery



1、Customized--We are the manufacturer! sample &OEM&ODM are available!
2、Safety--We have own test chart, all of our products have been rigorously tested in the factory.
3、Certification--We have CE and quality management system certification.
4、High Quality --Our company uses the most advanced equipment to make the best quality products.



Hot Tags: 6kw diesel air and water combi heater, China, factory, suppliers, manufacturers, seller, wholesale, quotation
