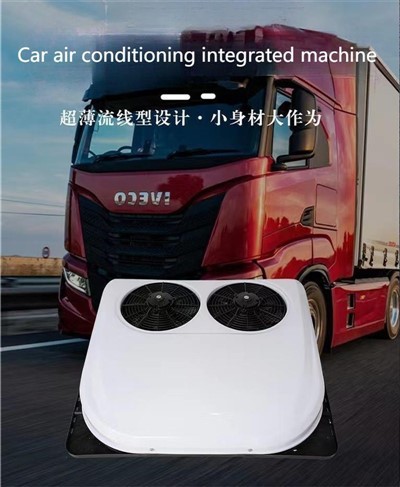

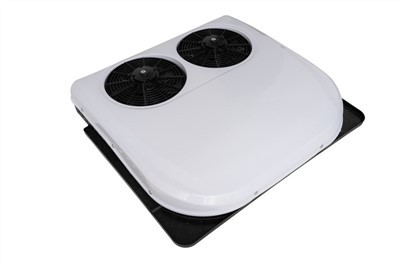

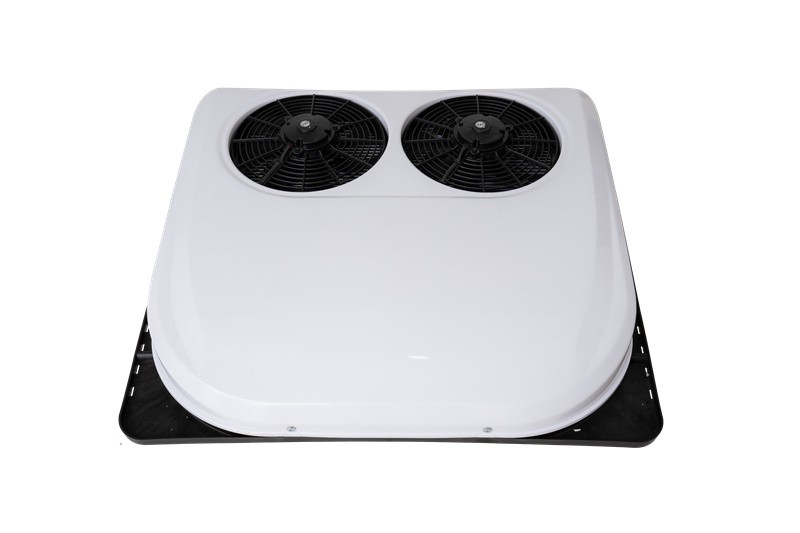

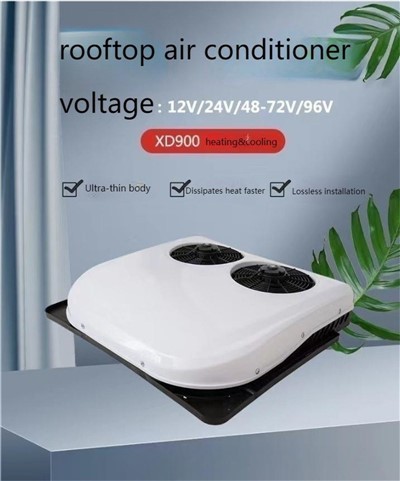

Bus Or Truck Roof Top Air Conditioner

Bus or Truck Roof Top Air Conditioner









Product features



1)Air conditioning internal standardized vehicle grade design, modular layout, stable performance.



2)The whole aircraft high strength material, bearing load without deformation, environmental protection and light, high temperature resistance and anti-aging.



3)Compressor adopts scroll type, vibration resistance, high energy efficiency, low noise.



4)Bottom plate arc design, more fit the body, beautiful appearance, streamline design, reduce wind resistance.



5)Air conditioning can be connected to the water pipe, free of condensed water flowing troubles.



Parameter

12v product parameters

power	300-800w	rated voltage	12v
cooling capacity	600-1700w	battery requirements	≥200A
rated current	60A	refrigerant	R-134a
maximum current	70A	electronic fan air volume	2000M3/h



24v product parameters

power	500-1200w	rated voltage	24v
cooling capacity	2600w	battery requirements	≥150A
rated current	45A	refrigerant	R-134a
maximum current	55A	electronic fan air volume	2000M3/h
Heating power(optional)	1000W	Maximum heating current(optional)	45A

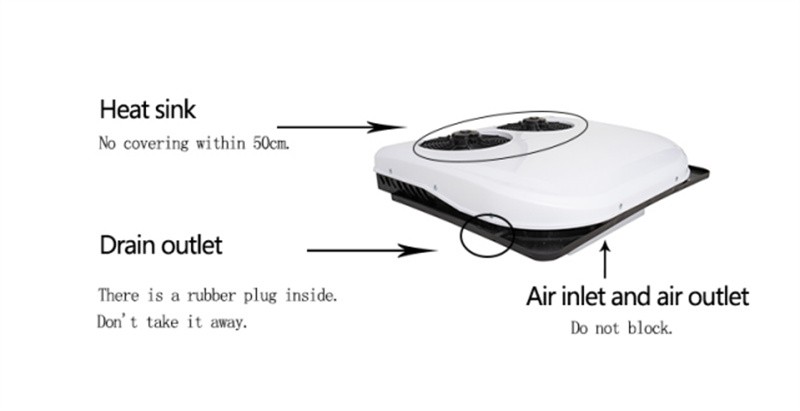

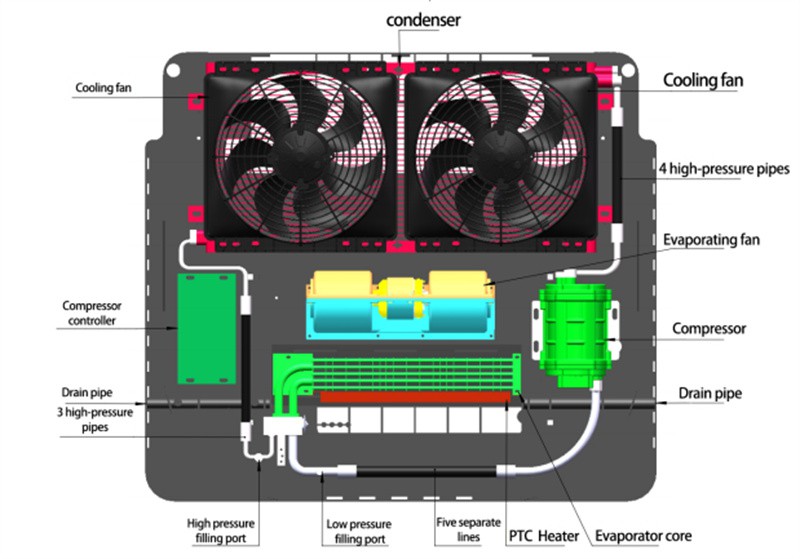

Product structure drawing









Air conditioning function description

(1) The lowest temperature that can be set for refrigeration is 3-30℃ (this is the temperature of the outlet); The maximum heating temperature can be set at 70℃ (this is the air outlet temperature).

(2) When the temperature of the air outlet is lower than the set temperature, the refrigeration mode will not start. Heating is not restricted.

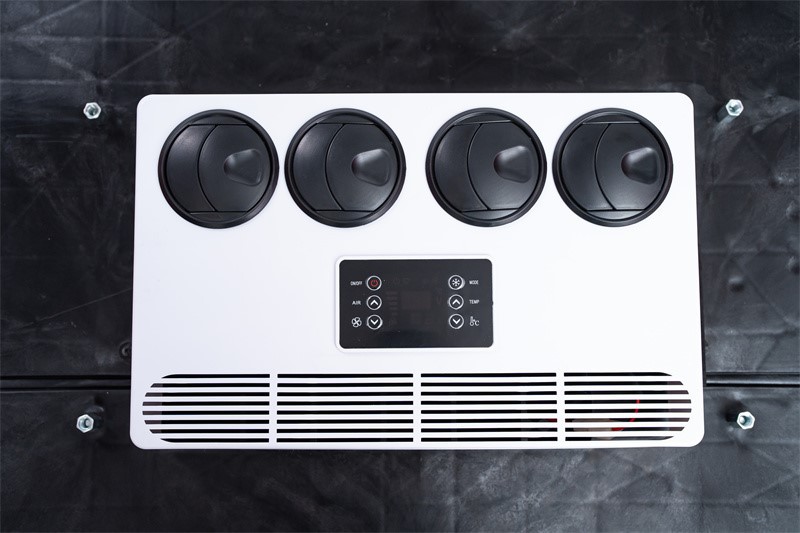

(3) Air volume 5 gears can be adjusted.

(4) Mode key can switch between refrigeration (snowflake sign) and heating mode (small sun sign). In heating mode, if the setting temperature is higher than the temperature displayed on the panel, heating will be started; otherwise, it will not be started.



















If you're looking for the bus or truck roof top air conditioner, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
