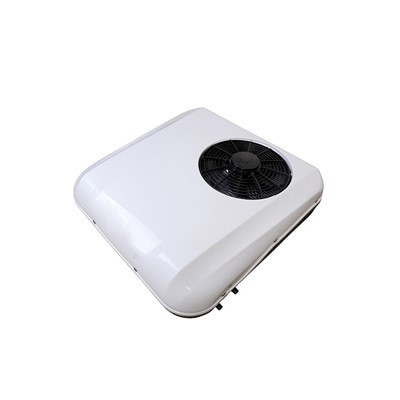

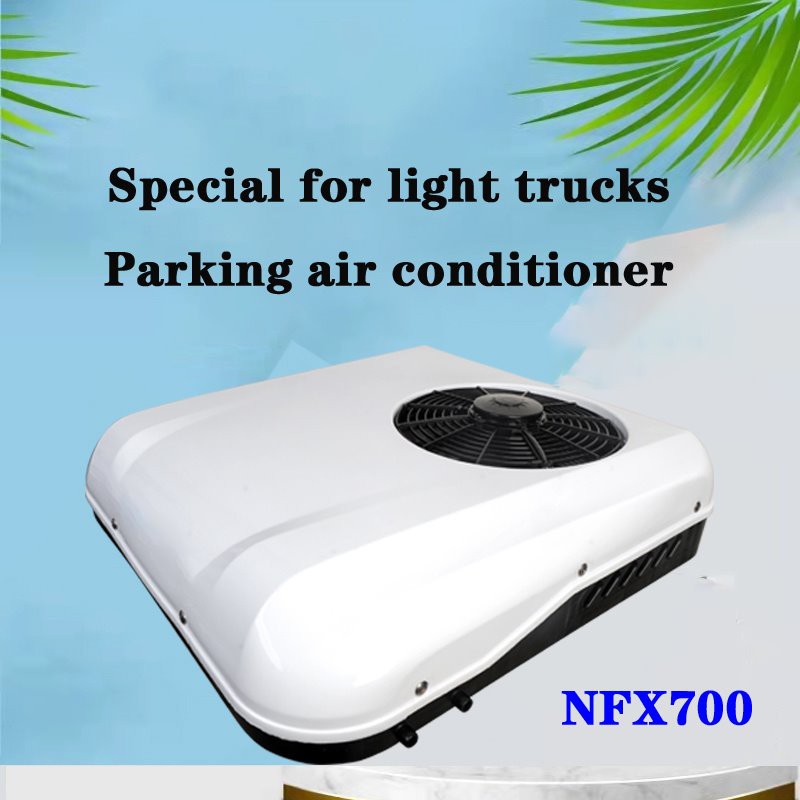

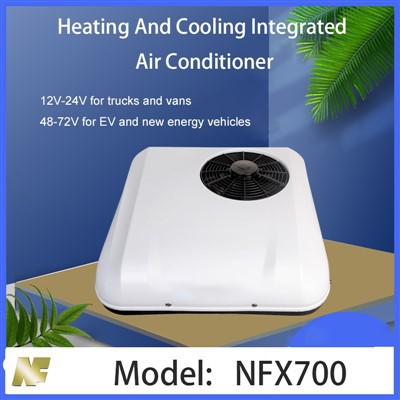

Truck Roof Air Conditioner
rooftop air conditioner for truck are suitable for various types of vehicles, 12V, 24V products are suitable for light trucks, trucks, saloon cars, construction machinery and other vehicles with small skylight openings.48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweeper and other battery powered small vehicles.
Description
Truck Roof Air Conditioner
Products Description
Roof-mounted air conditioning systems typically consist of the following components:
Condenser and evaporator: These components are located on top of the vehicle, usually in an external unit on the roof. The condenser dissipates heat, while the evaporator cools and circulates the air.
Fans and ducts: Roof-mounted air conditioning systems include one or more fans that pull air from the vehicle and circulate it through the condenser and evaporator. Ducts distribute the cool air to various areas of the vehicle.
Control panel: A control panel, usually located inside the vehicle, adjusts the temperature, air speed, and other settings of the air conditioning system.
Parameter
12v product parameters
| power | 300-800w | rated voltage | 12v |
| cooling capacity | 600-2000w | battery requirements | ≥150A |
| rated current | 50A | refrigerant | R-134a |
| maximum current | 80A | electronic fan air volume | 2000M3/h |
24v product parameters
| power | 500-1000w | rated voltage | 24v |
| cooling capacity | 2600w | battery requirements | ≥100A |
| rated current | 35A | refrigerant | R-134a |
| maximum current | 50A | electronic fan air volume | 2000M3/h |
48v-72v product parameters
| input voltage | DC43V-DC86V | minimum installation size | 400mm*200mm |
| power | 800W | heating power | 1200W |
| refrigerating capacity | 2200W | electronic fan | 120W |
| blower | 400m3/h | number of air outlets | 3 pieces |
| weight | 20kg | external machine dimensions | 700*700*149mm |

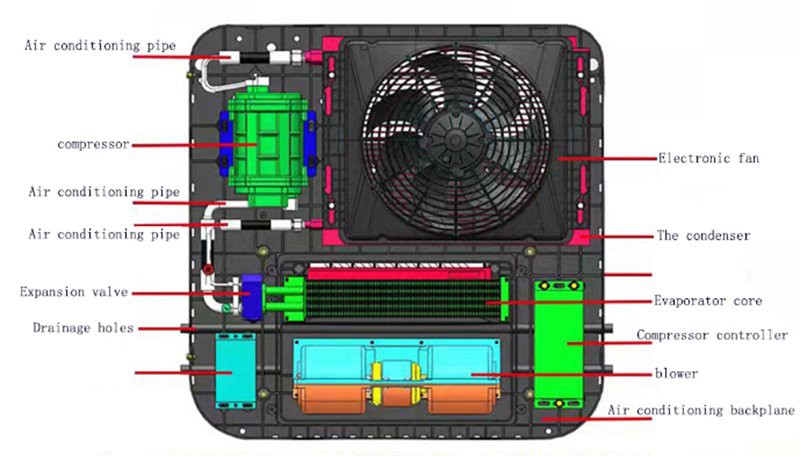

Product structure drawing

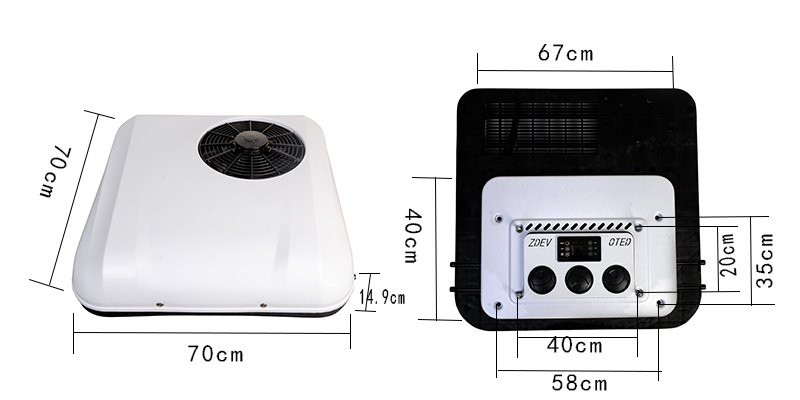

Dimension

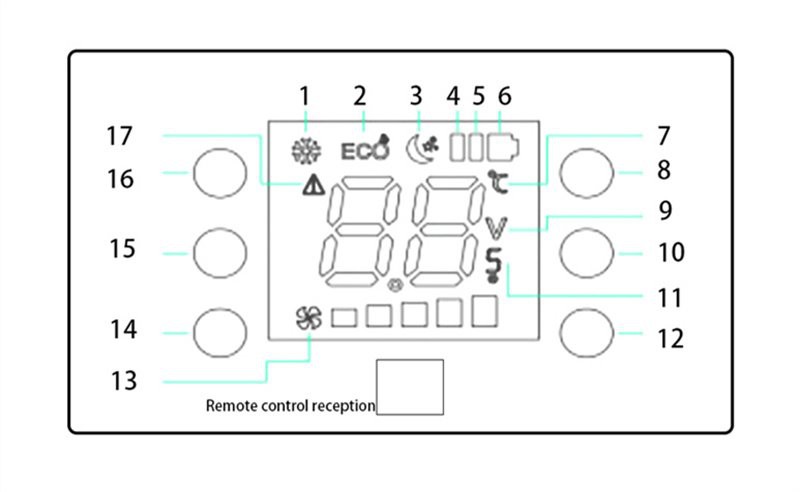

12v 24v panel display and instructions

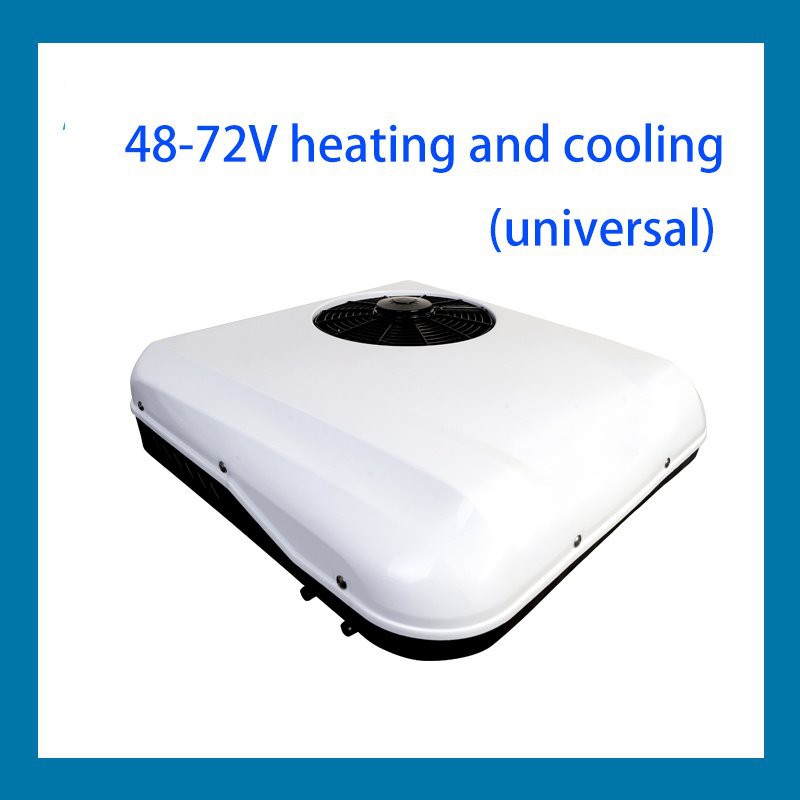

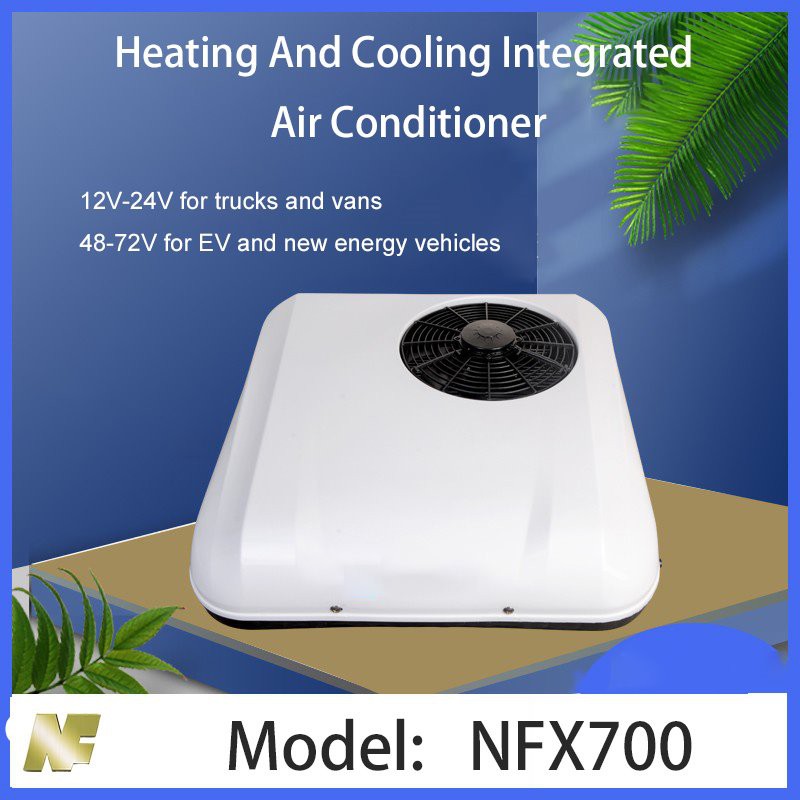

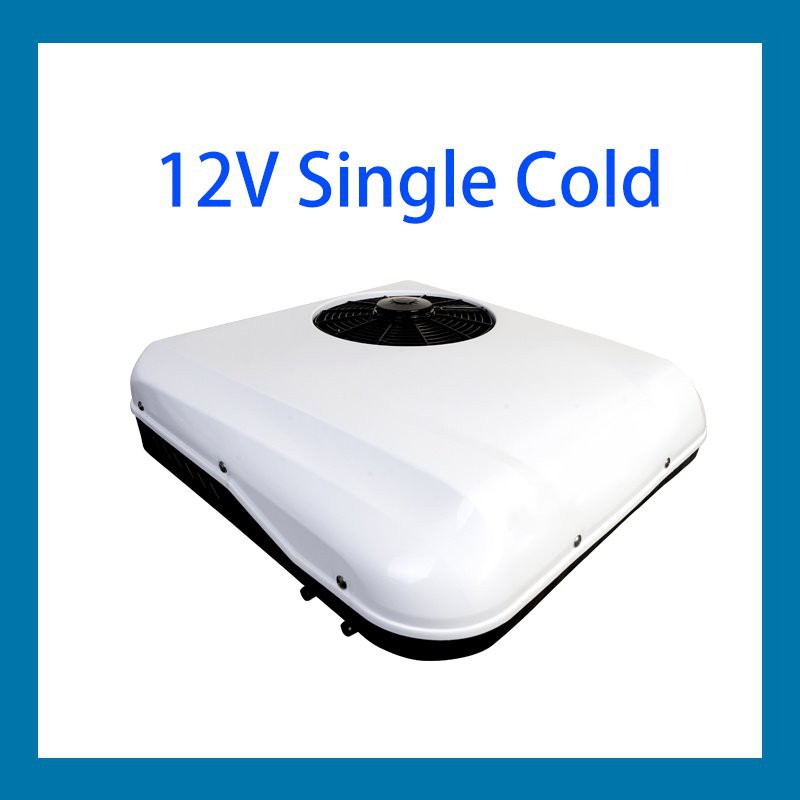

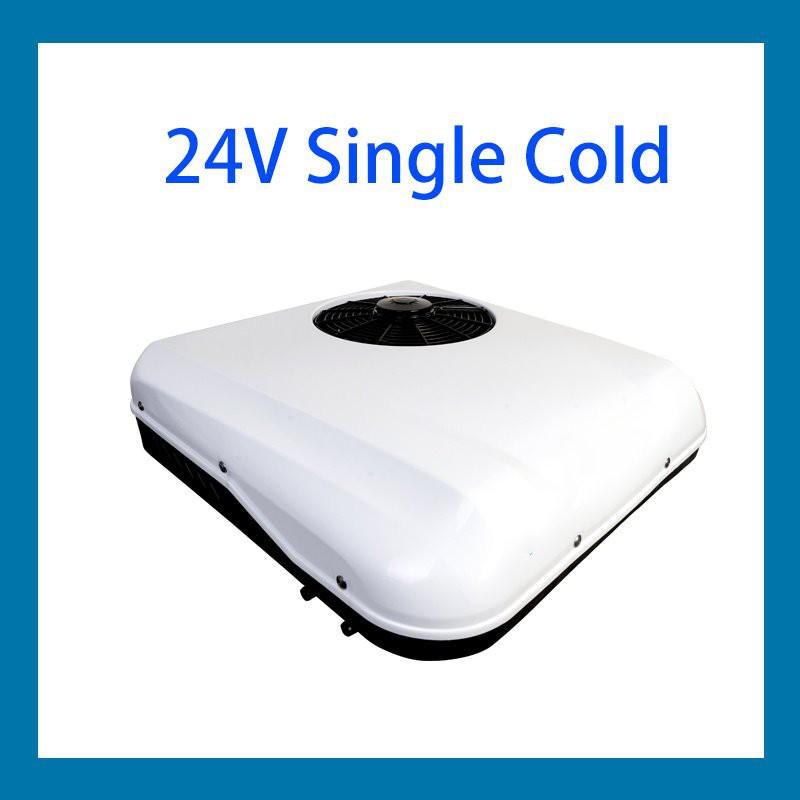

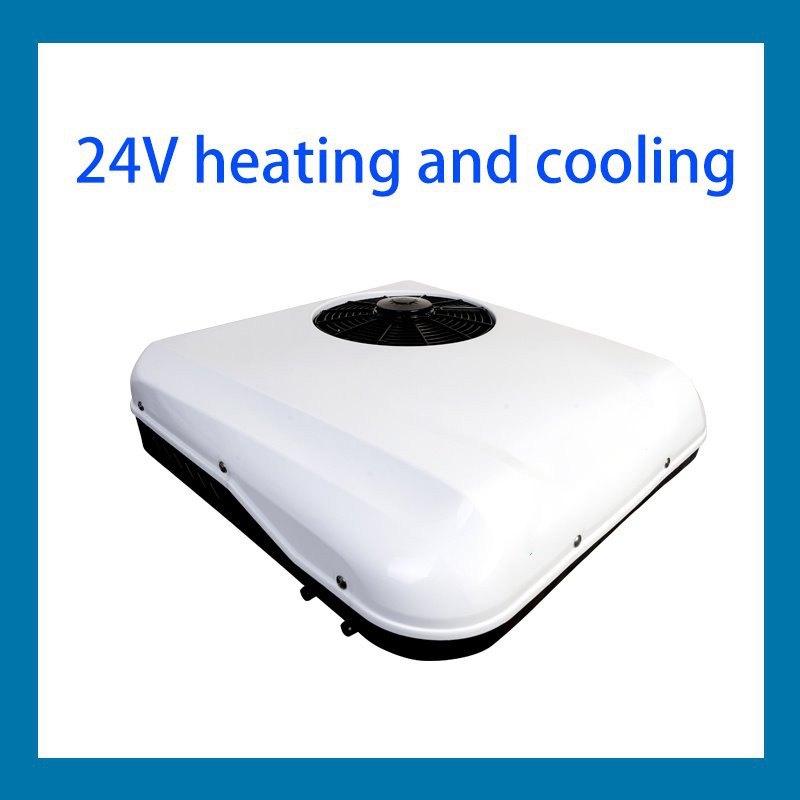

Four Models

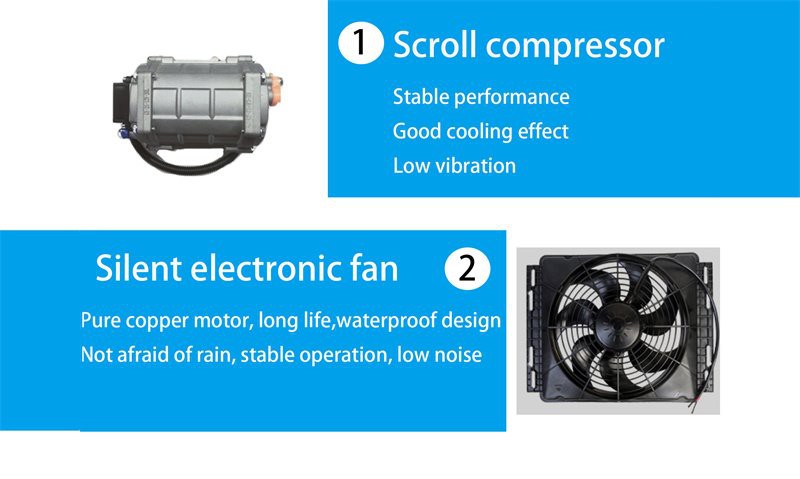

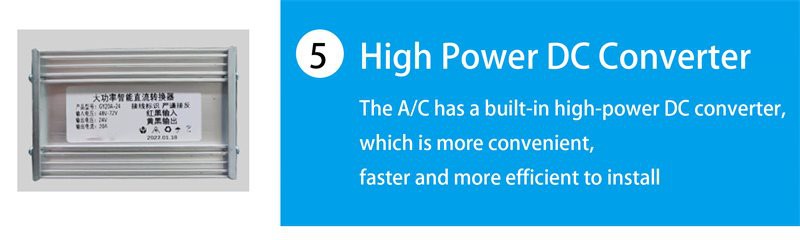

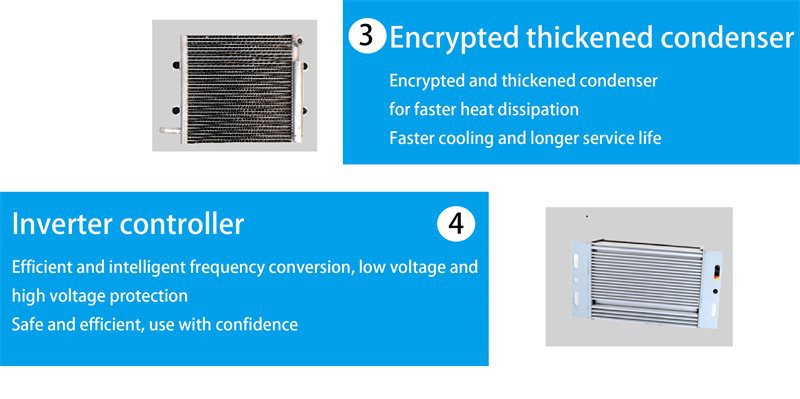

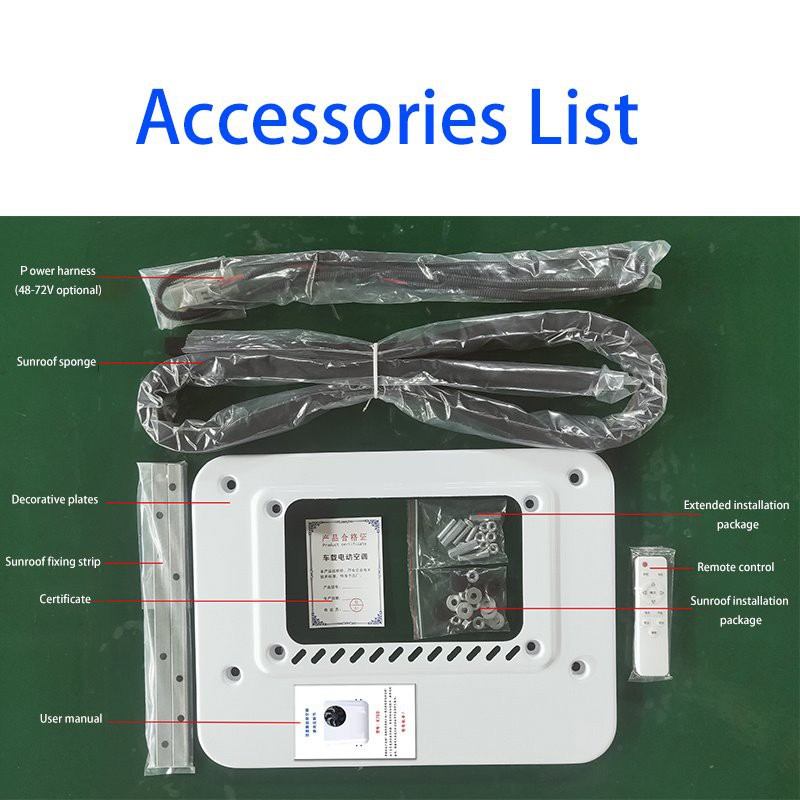

Details

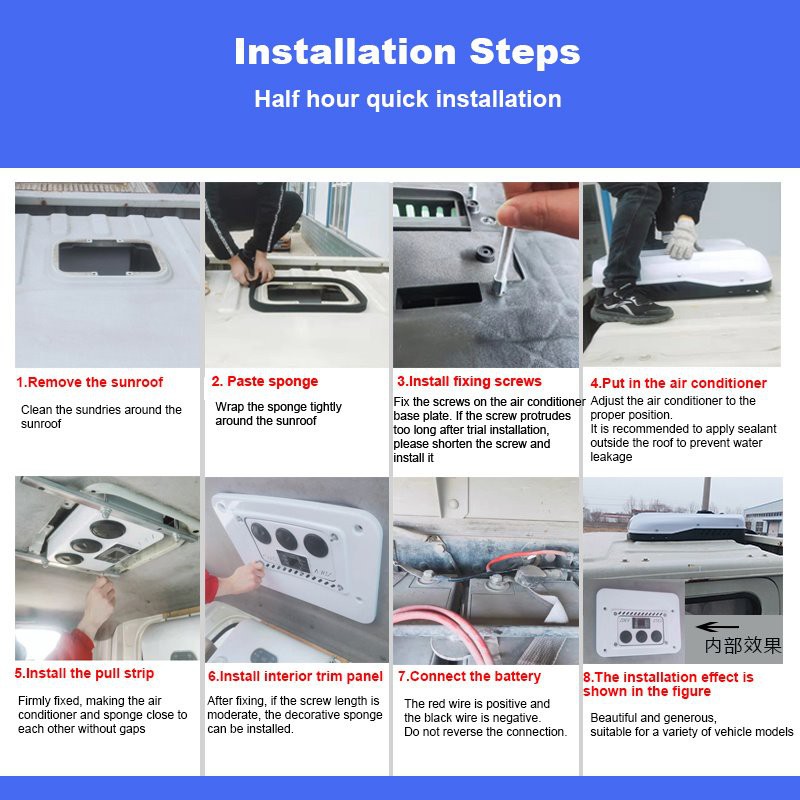

Installation
