Roof-top Parking Air Conditioner

To keep drivers well-rested and contribute greater safety on the road, our powerful rooftop air-conditioning system ensures pleasant temperatures and humidity, creating an ideal climate with the electric parking cooler system for trucks, buses and vans. Our compressor-driven system is filled with refrigerant HFC134a and is connected to the 12/24V/48~72v vehicle battery. Installation in the existing roof opening is very simple and time-saving. High-quality components set up a high quality standard for parking coolers and ensure a long life with a minimum expenditure on maintenance. The electric parking cooler reduces engine idling times and therefore saves fuel. The low-voltage cutoff ensures that the engine will start.

Send Inquiry

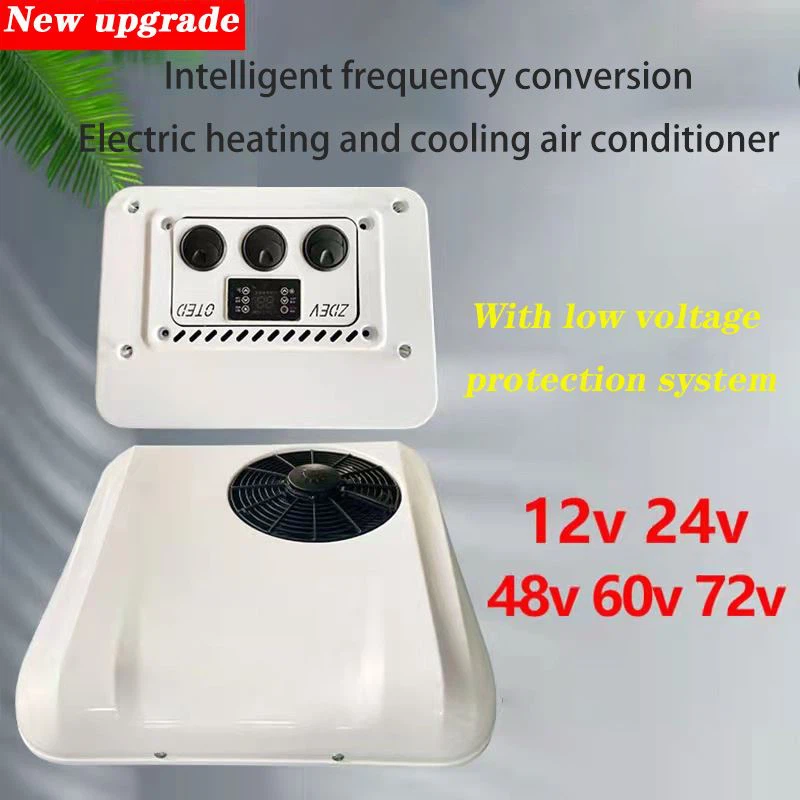

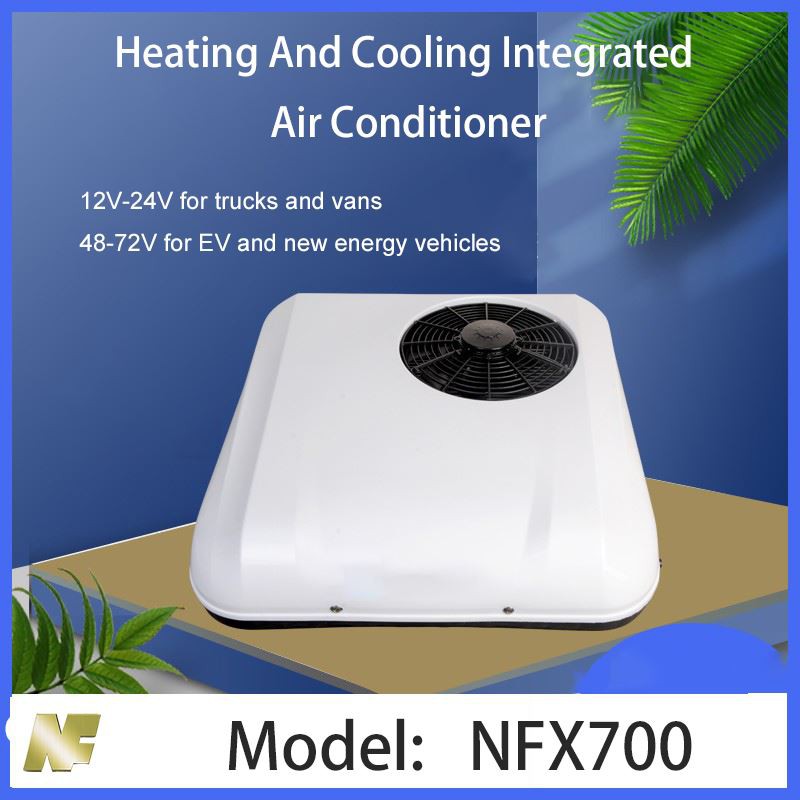

Roof-top parking Air Conditioner

Description

Heating&cooling roof-top parking air conditioner

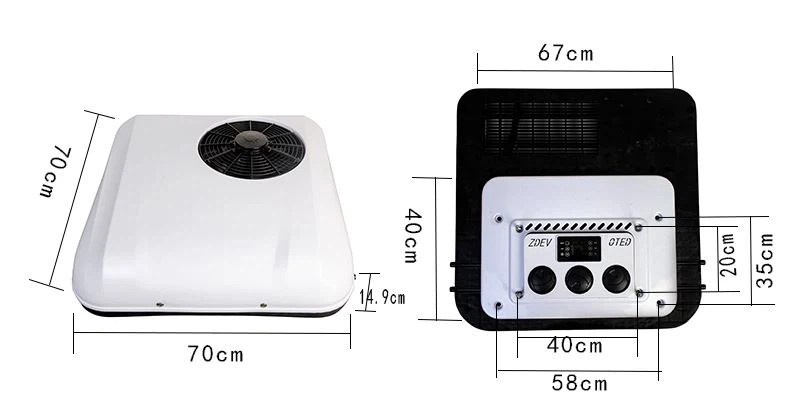

Dimension

Overall size	707014.9cm	sunroof size (optional 1)	40*20cm
Total Weight	21kg	sunroof size (optional 2)	35*58cm

Product Introduction:

1）12V, 24V products are suitable for light trucks, trucks, motorhome, construction machinery and other vehicles with small skylight openings.

2）48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweeper and other battery powered small vehicles.

3）Vehicles with sunroof can be installed without damage, without drilling, without damage to the interior, can be restored to the original car at any time.

4）Air conditioning internal standardized vehicle grade design, modular layout, stable performance.

5）The whole aircraft high strength material, bearing load without deformation, environmental protection and light, high temperature resistance and anti-aging.

6）Compressor adopts scroll type, vibration resistance, high energy efficiency, low noise.

7）Bottom plate arc design, more fit the body, beautiful appearance, streamline design, reduce wind resistance.

8）Air conditioning can be connected to the water pipe, free of condensed water flowing troubles.

Technical parameters

**12V**
Power	300-800W	rated voltage	12V
cooling capacity	600-2000W	battery requirements	≥150A
rated current	50A	refrigerant	R-134a
maximum current	80A	electronic fan air volume	2000M³/h

**24V**
Power	500-1000W	rated voltage	24V
cooling capacity	2600W	battery requirements	≥100A
rated current	35A	refrigerant	R-134a
maximum current	50A	electronic fan air volume	2000M³/h

**48V~72V**
Total Power	800W	rated voltage	48V/60V/72V
cooling capacity	2200W	Heating power	1200W
weight	20kg	refrigerant	R-134a
Dimension	700700149mm	Internal unit circulating air volume	400M³/h
