8kw Electric Vehicle Ptc Coolant Heater video

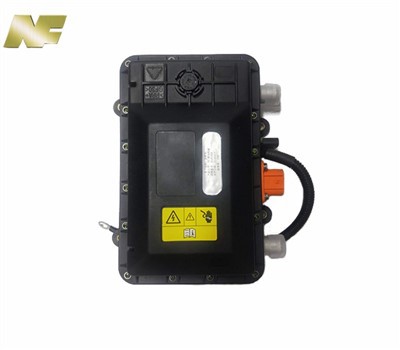

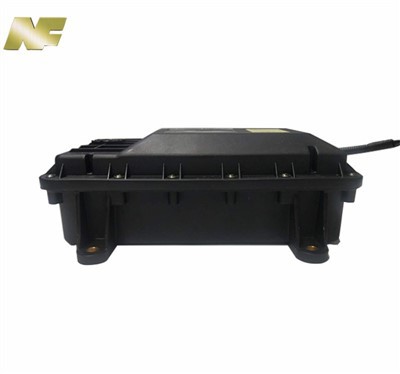

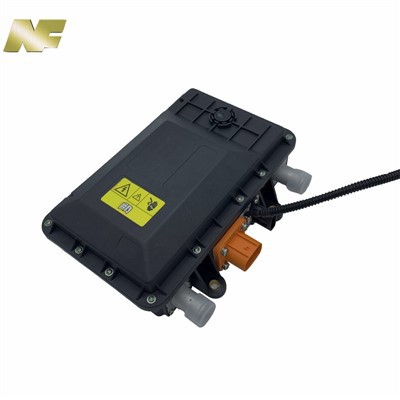

8kw Electric Vehicle Ptc Coolant Heater

Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.

Description

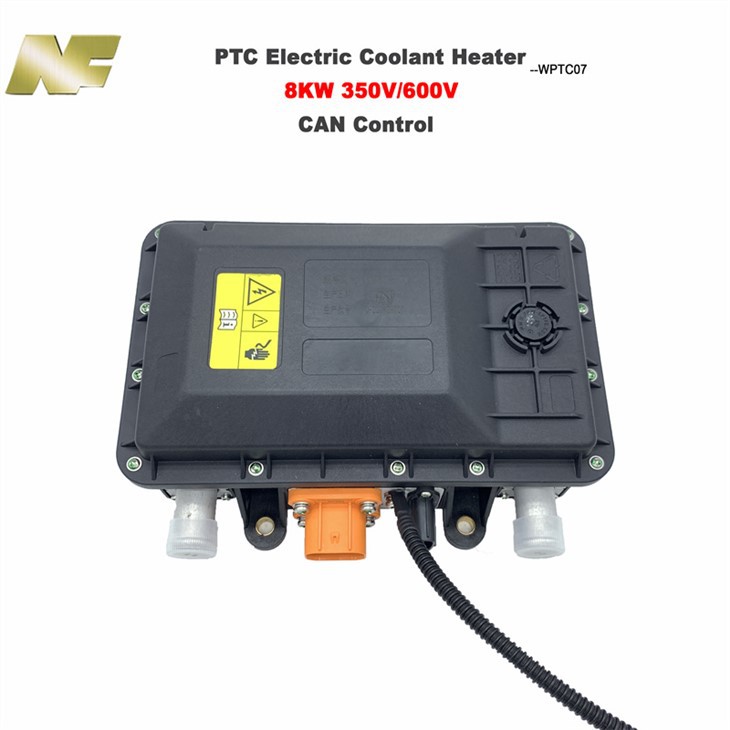

8kw Electric Vehicle PTC Coolant Heater



Products Description

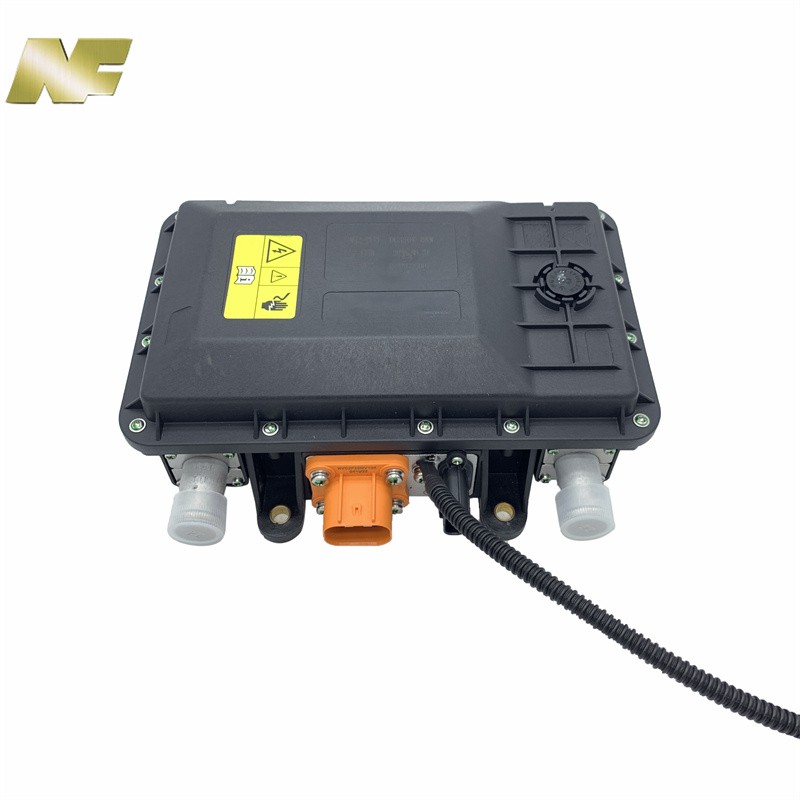

PTC heater1

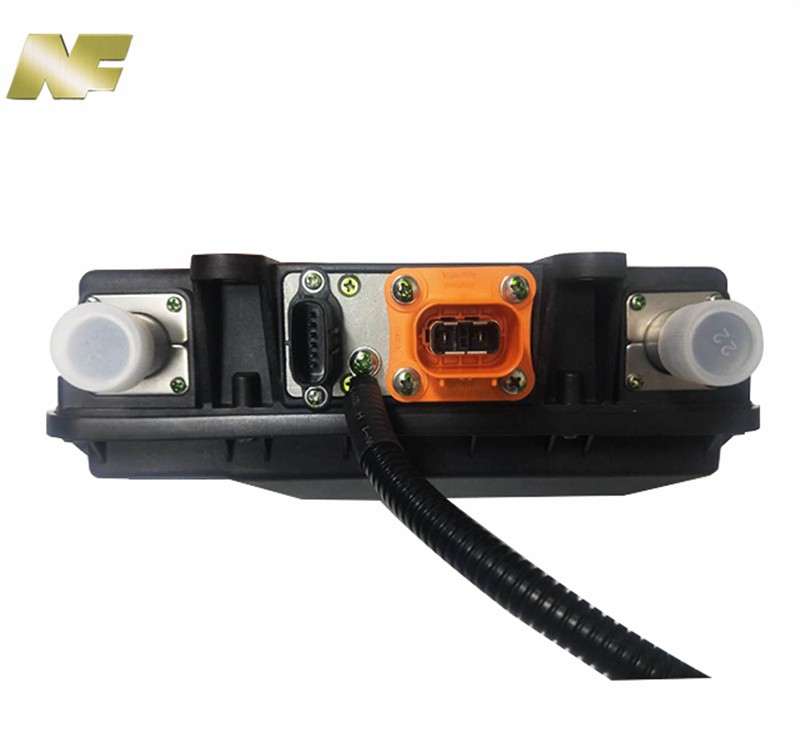

PTC 06

The PTC water heater can provide new energy vehicle cab heating and meet safe defrosting and defogging standards. At the same time, it provides heat to other components that require temperature control (such as batteries). Electricity is used to heat the antifreeze, and the heater is used to heat the passenger compartment. Installed in a circulating water cooling system.


The PTC water heater is an electric heater that uses electricity as an energy source to heat antifreeze and serves as a heat source for the vehicle. Use PWM to set up the IGBT drive to adjust the power with the short term heat storage function. Complete vehicle cycle, support battery thermal management and environmental protection.


The heating device uses PTC (Positive Temperature Coefficient Thermistor) semiconductor, and the shell uses aluminum alloy precision casting, which has the excellent performance of dry burning, anti-interference, anti-collision, explosion-proof, safe and reliable.







Model WPTC07-1 WPTC07-2
Rated voltage (V) 350 600
Voltage range (V) 300-450 480-720
Rated power (W) 8000W 8KW
Controller low voltage (V) 9-16 18-32
Control signal CAN CAN

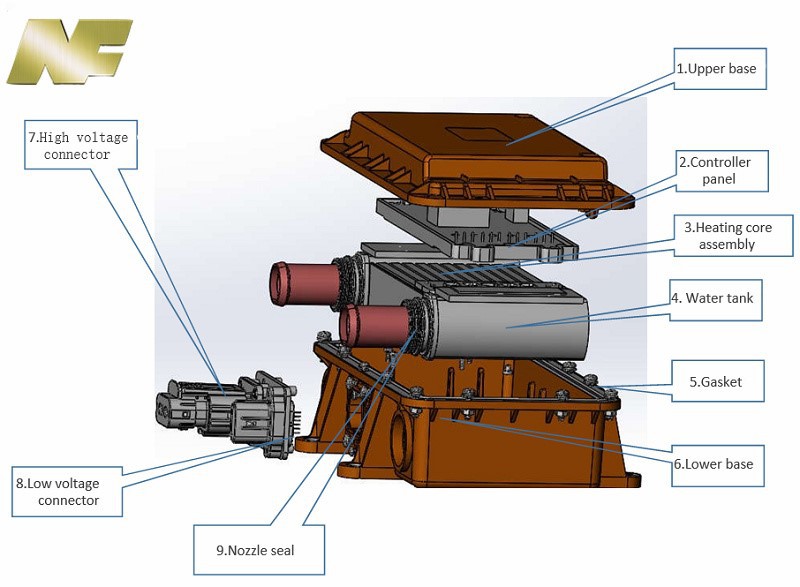

Product Structure:

PTC 07

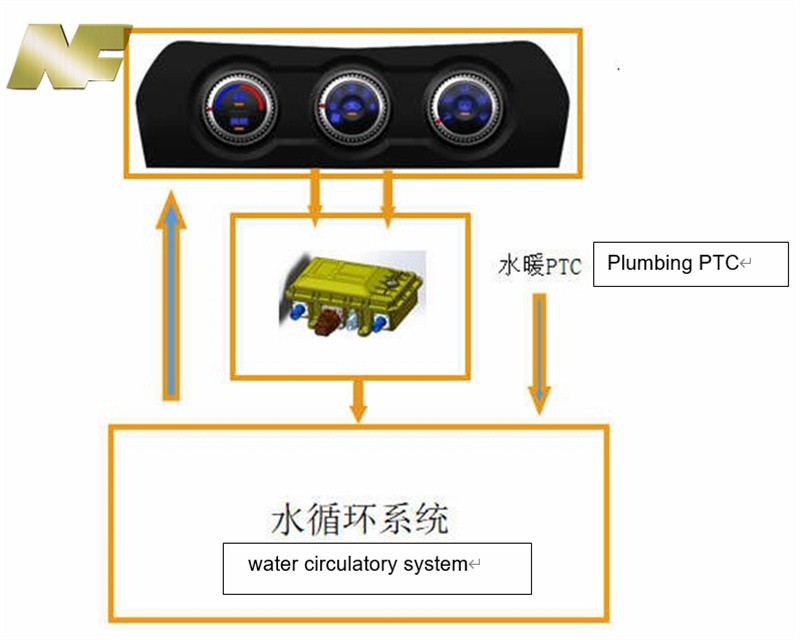

control framework

Products Details

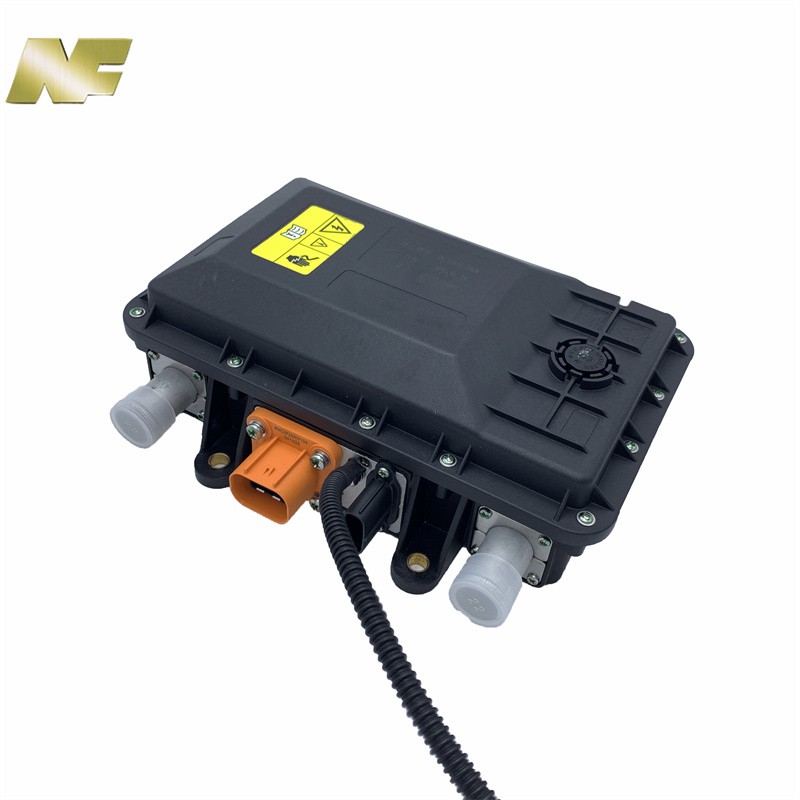

PTC heater

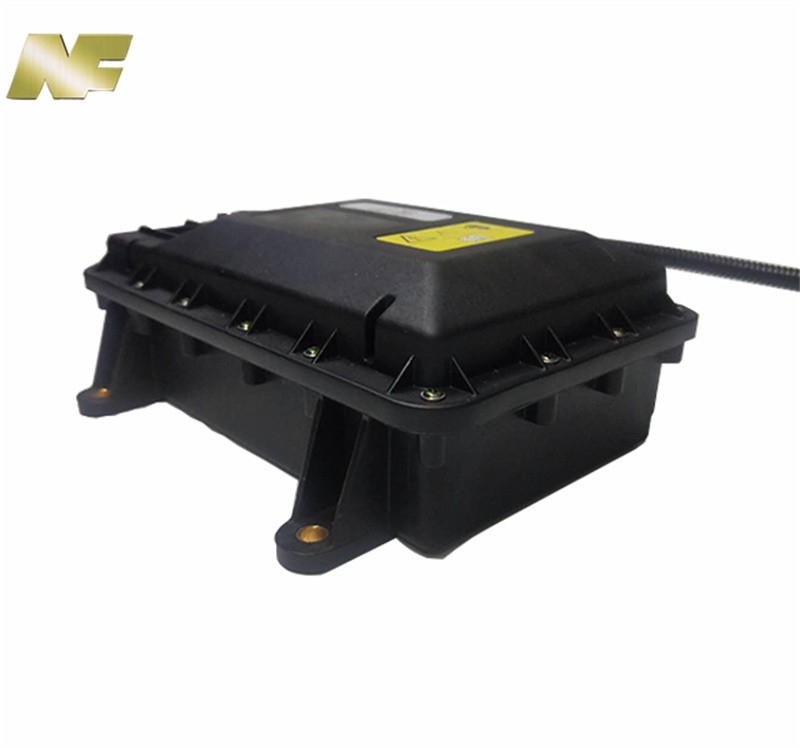

PTC 03

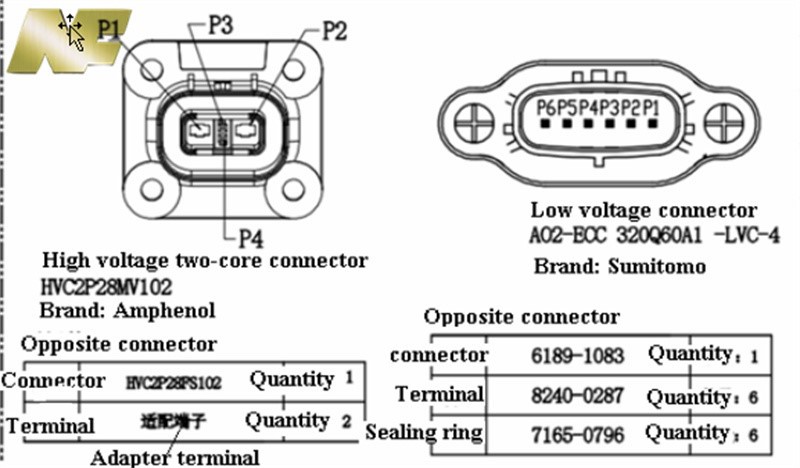

product connector

图片尺寸350x350

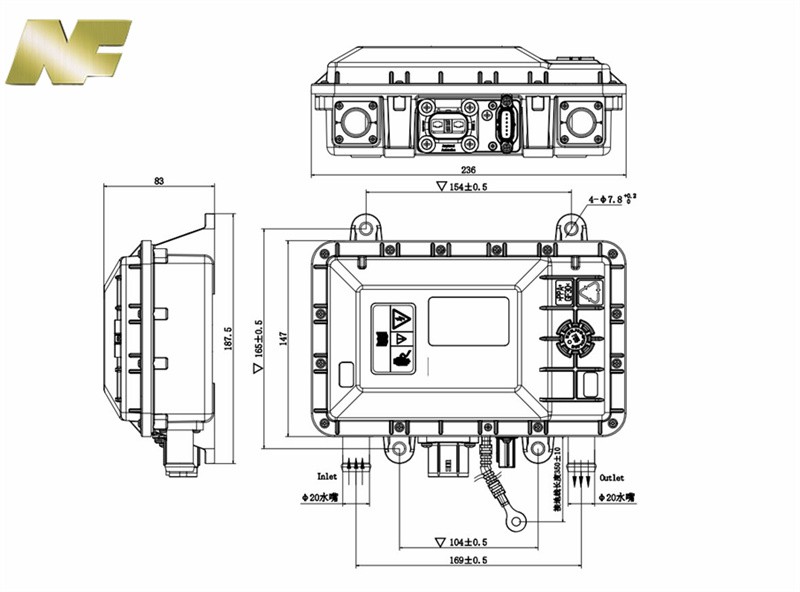

size

Title









Application



Electric bus vehicle
0021


exhibition



Certification





certification of high voltage heater
