7KW 410V PTC Coolant Heater For EV Car video

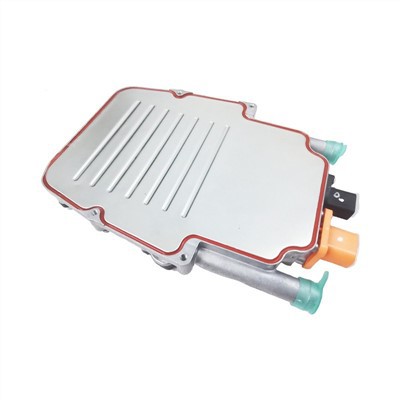

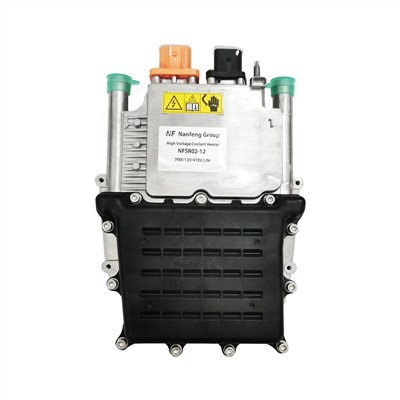

7KW 410V PTC Coolant Heater For EV Car

Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China. Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.

Description

7KW 410V PTC Coolant Heater For EV Car



Products Description

electric ptc heater

The 7kw LIN Control PTC Heater is an innovative heating solution that is designed to meet the demands of various industrial applications. This electric heater is equipped with advanced PTC technology that delivers powerful, reliable and consistent heat output.
With its advanced LIN control system, this PTC heater is able to provide precise temperature control, ensuring optimal heating performance. The heater's high efficiency design allows it to deliver maximum heating performance while minimizing energy consumption, making it an environmentally friendly and cost-effective heating solution.
The 7kw LIN Control PTC Heater is highly versatile and can be used in a wide range of applications, including industrial processes, drying applications, and heating of large spaces. The heater's compact design allows for easy installation in various environments while its durable construction ensures long-lasting performance.
This PTC heater is also equipped with a range of safety features, including overheat protection and automatic shut-off, ensuring safe and reliable operation at all times.
Whether you are looking to heat a large industrial space or need reliable heating for your industrial processes, the 7kw LIN Control PTC Heater offers an innovative, efficient and cost-effective solution to your heating needs. Contact us today to learn more about this innovative heating solution.

Products Parameter



Electric power ≥7000W, Tmed=60℃; 10L/min, 410VDC
High voltage range 250~490V
Low voltage range 9~16V
Inrush current ≤40A
Control mode LIN2.1
Protection level IP67&IP6K9K
Working temperature Tf-40℃~125℃
Coolant temperature -40~90℃
Coolant 50 (water) + 50 (ethylene glycol)
Weight 2.55kg

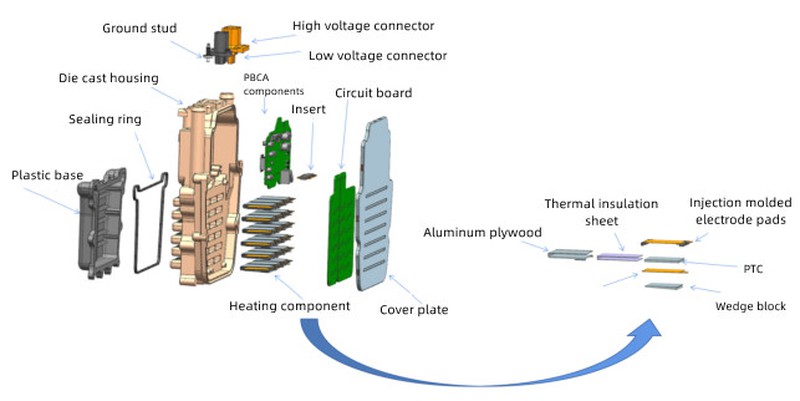

PTC Heater Structure:

ptc heater structure



Products Details

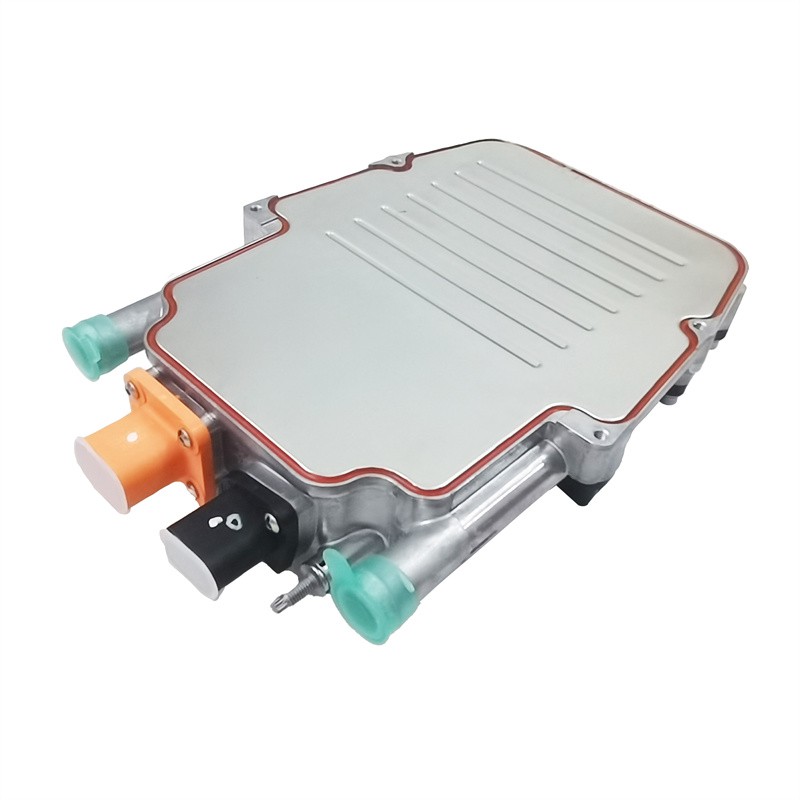

electric ptc heater

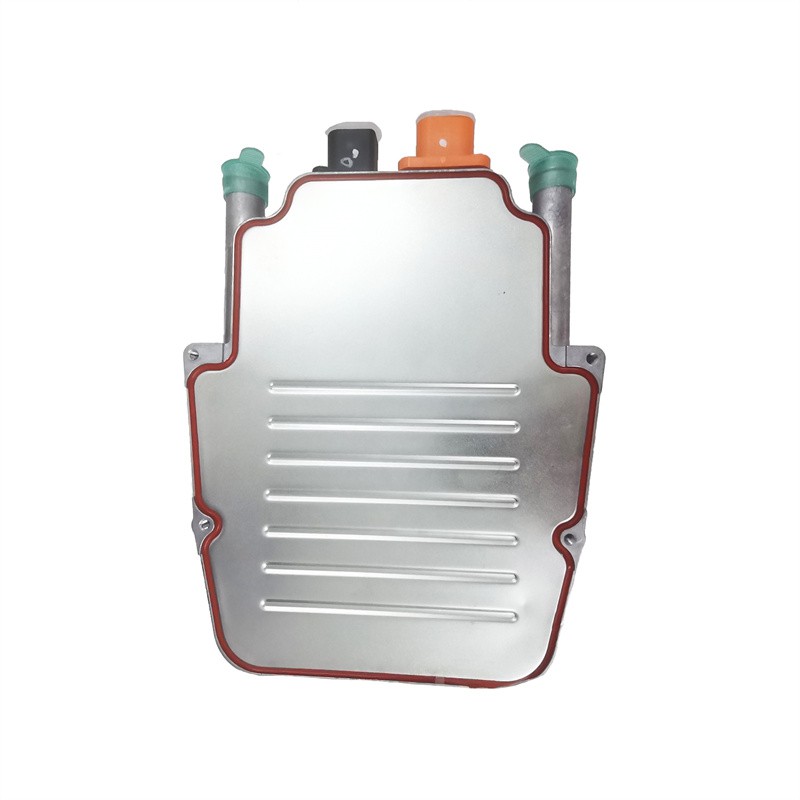

ev battery heater

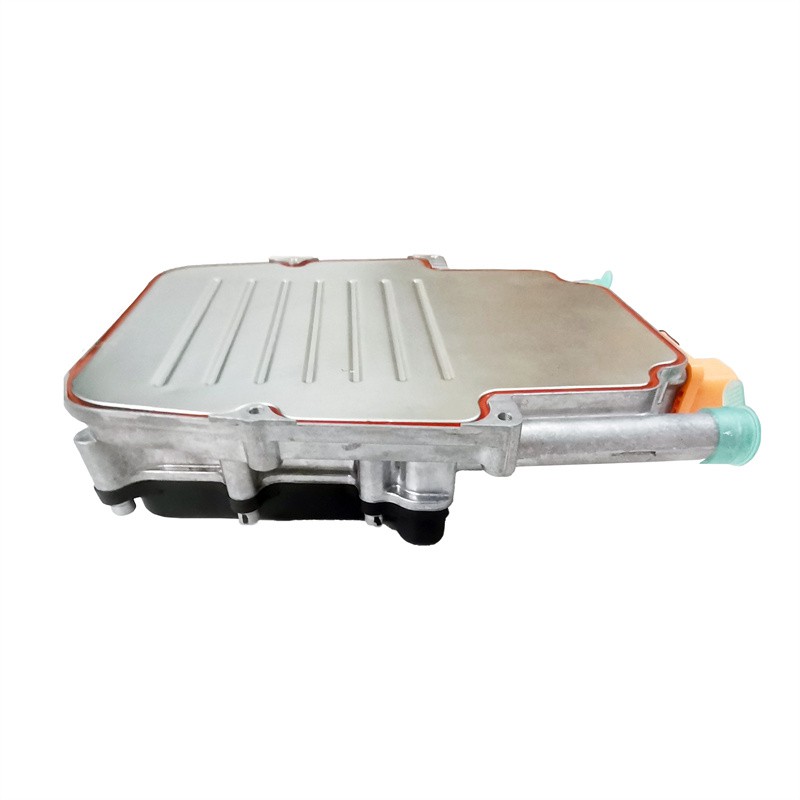

hvh heater

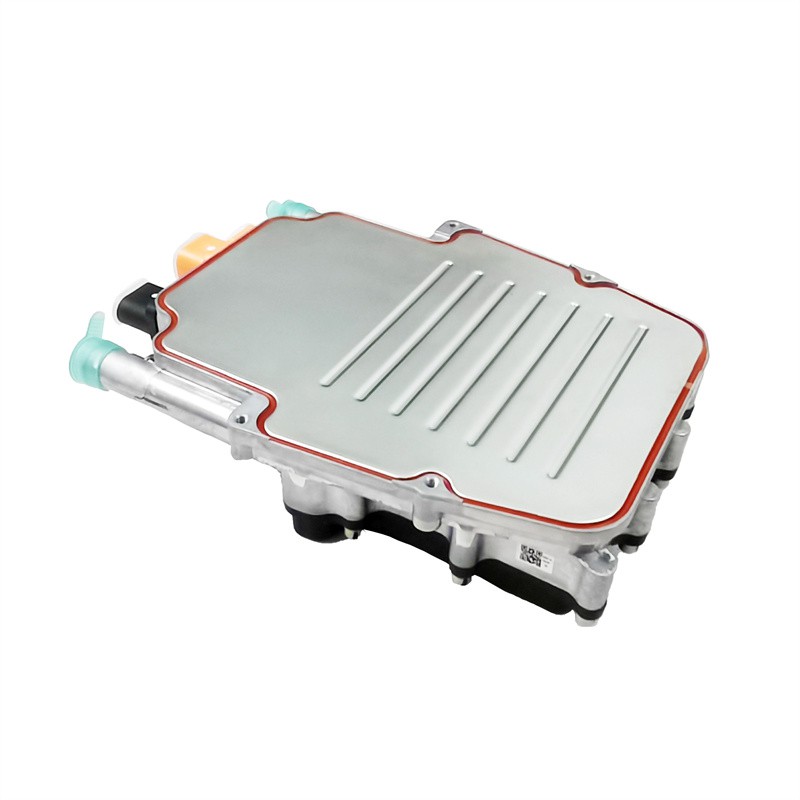

PTC coolant heater27

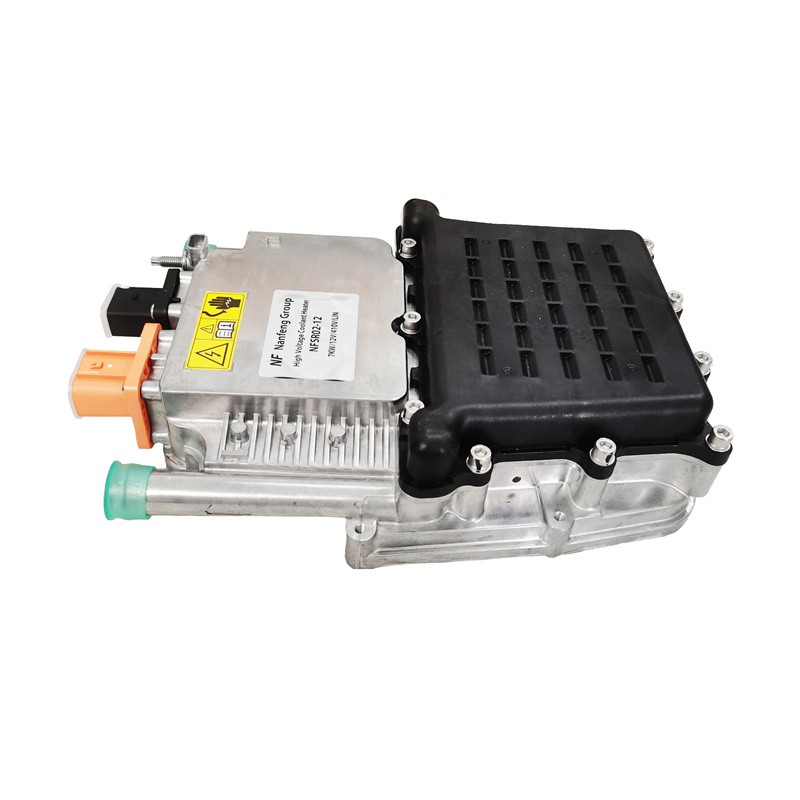

high voltage heater

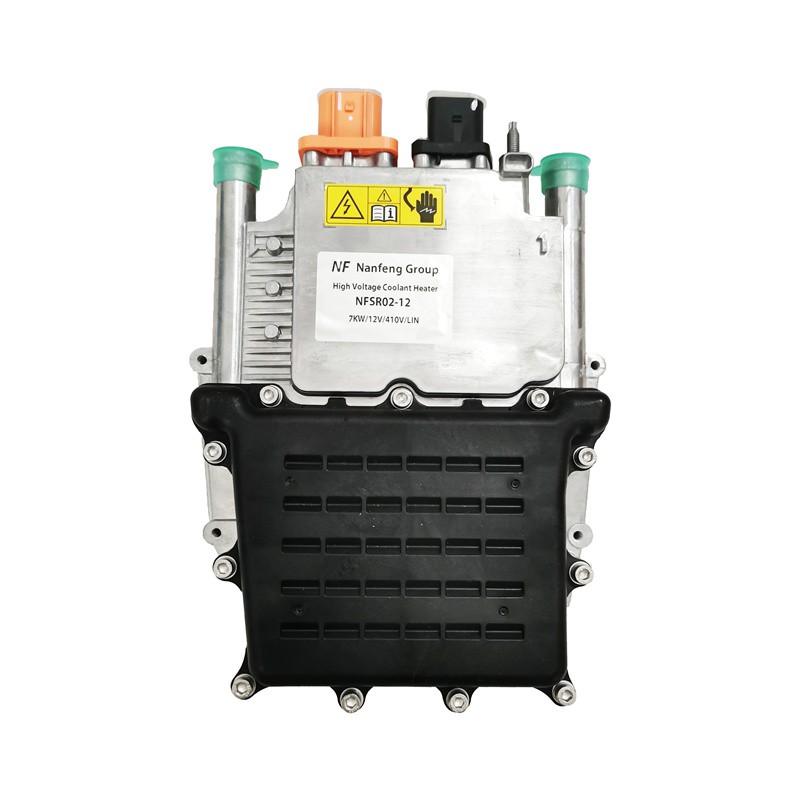

hv heater

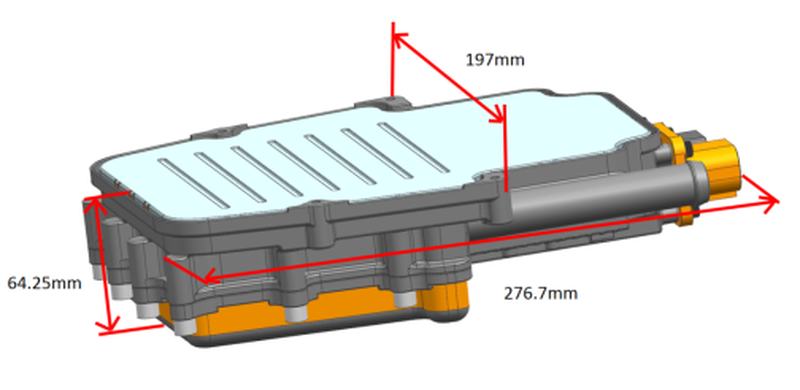

Product Size:

high voltage heater size

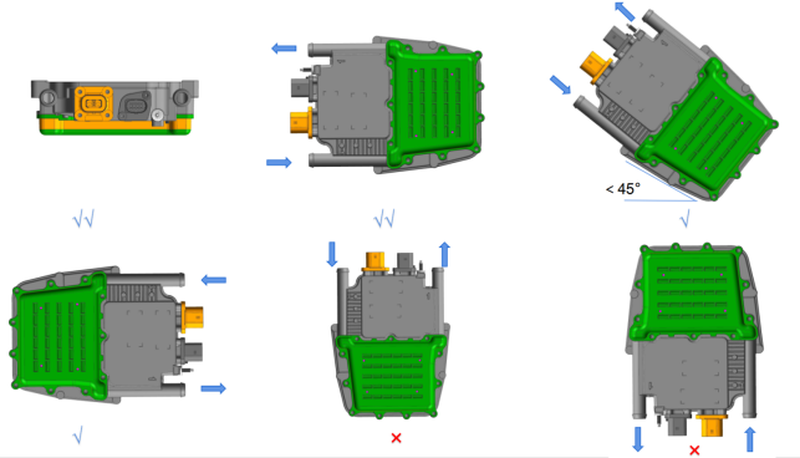

Product Application:

hvh heater installation



Products Application

high voltage PTC parking heater application

PTC parking heater application

Products Certification

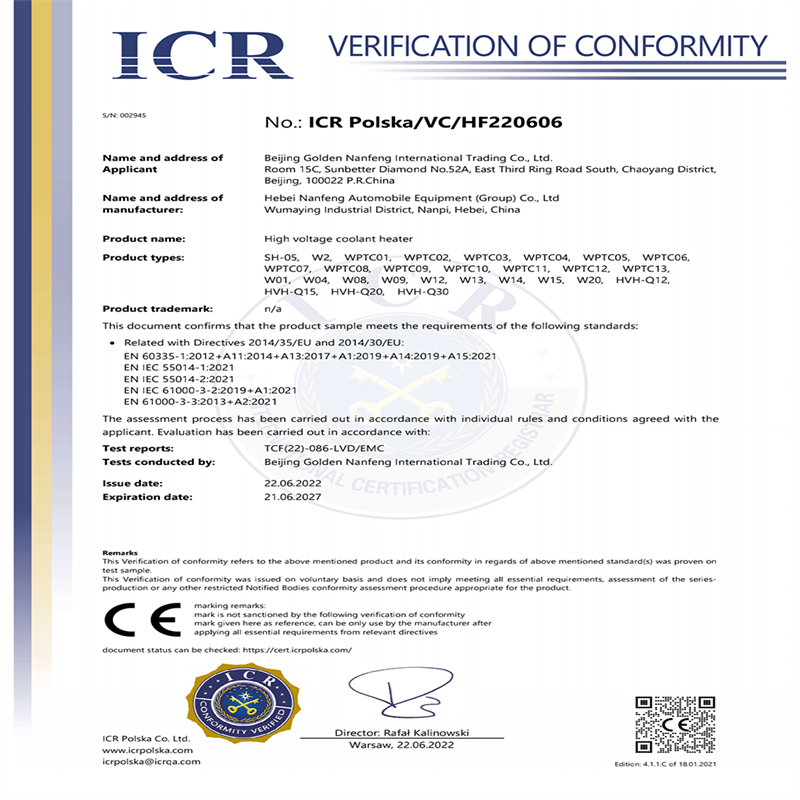

certification of high voltage heater

If you're looking for the 7kw 410v ptc coolant heater for ev car, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
