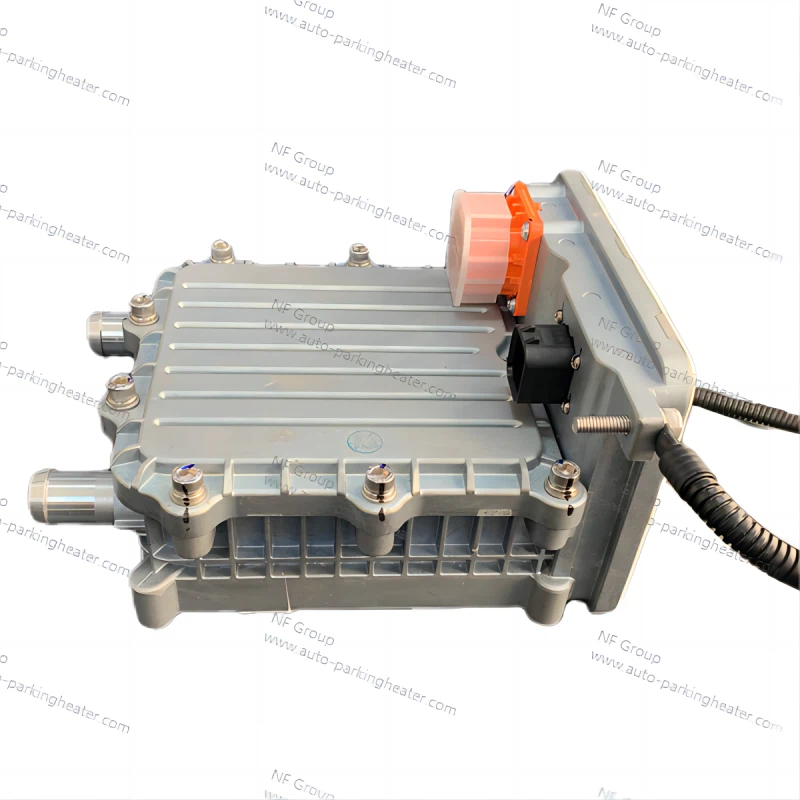

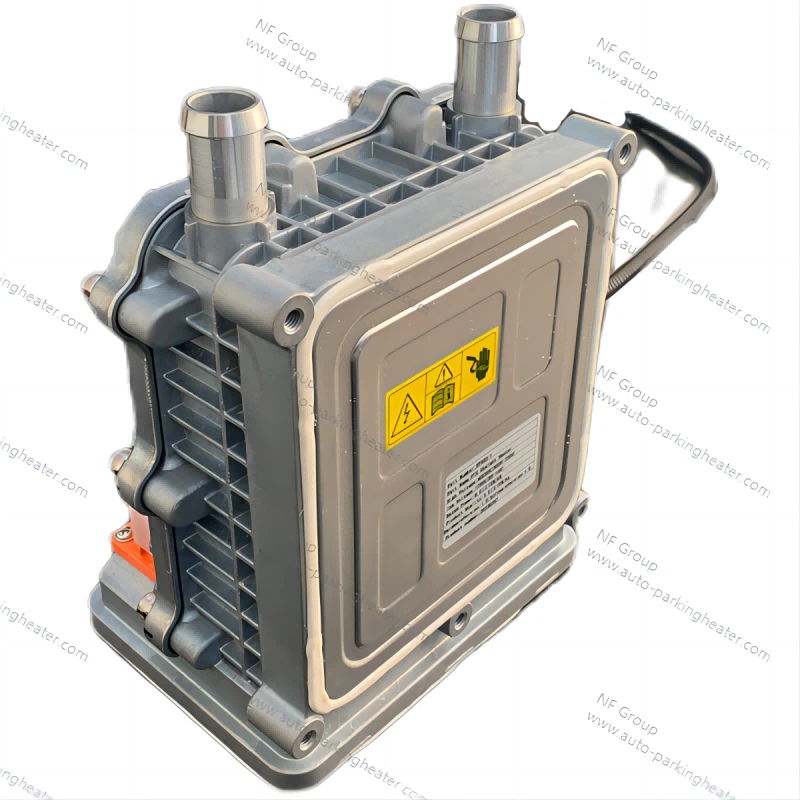

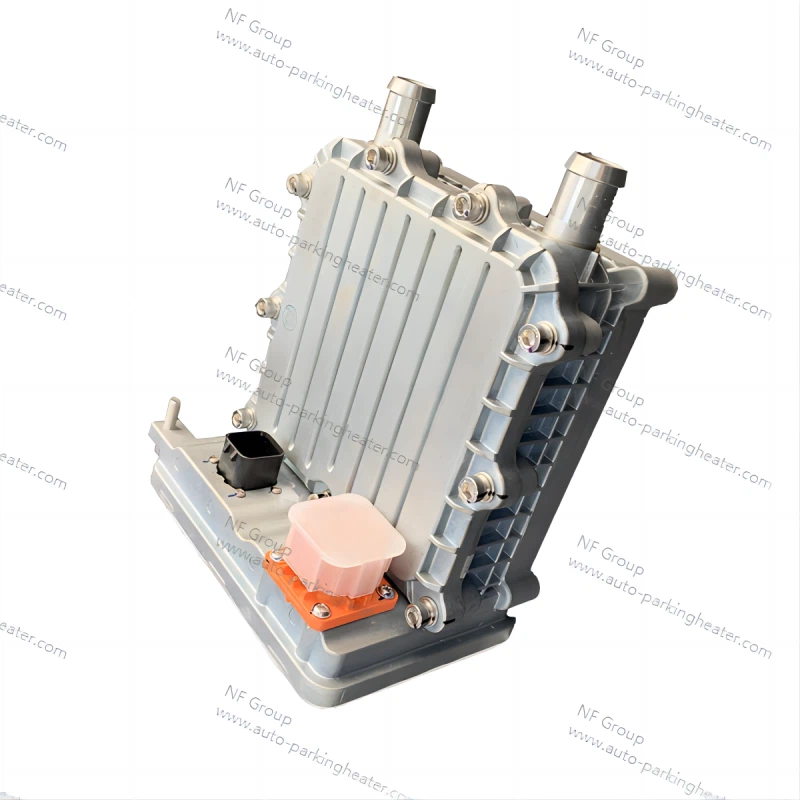

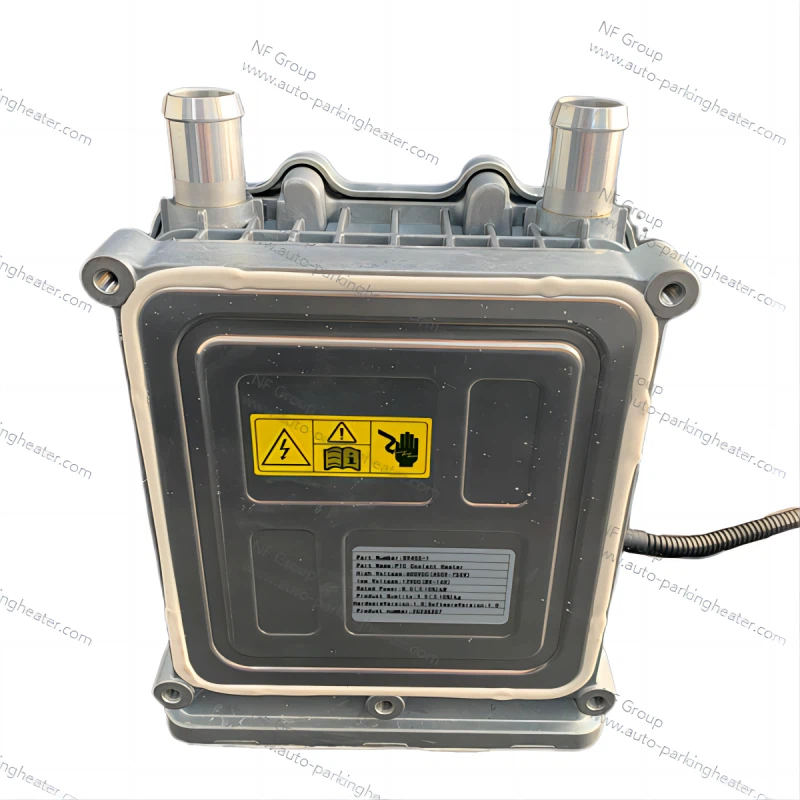

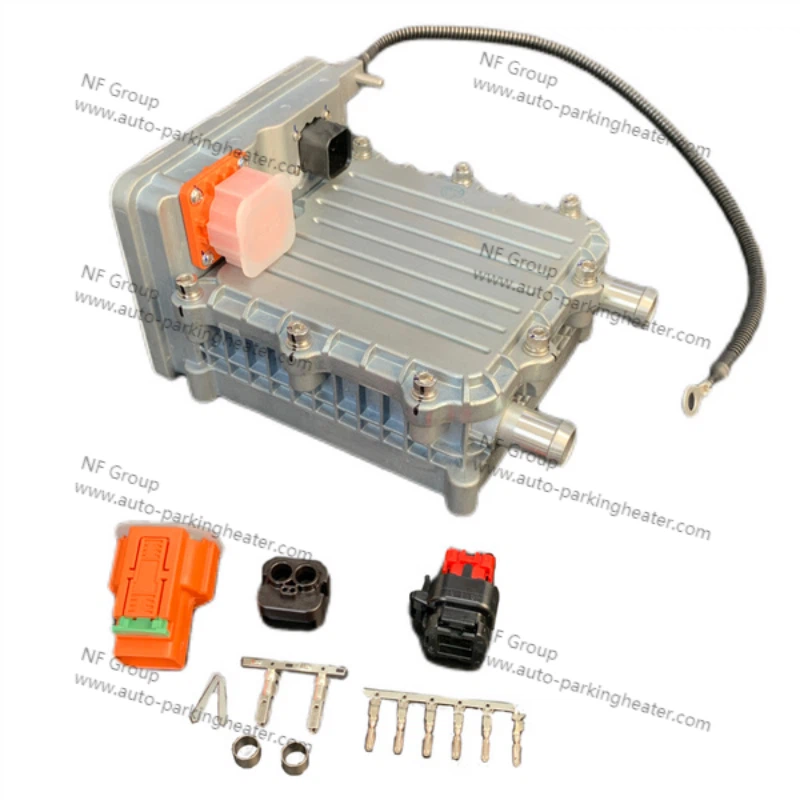

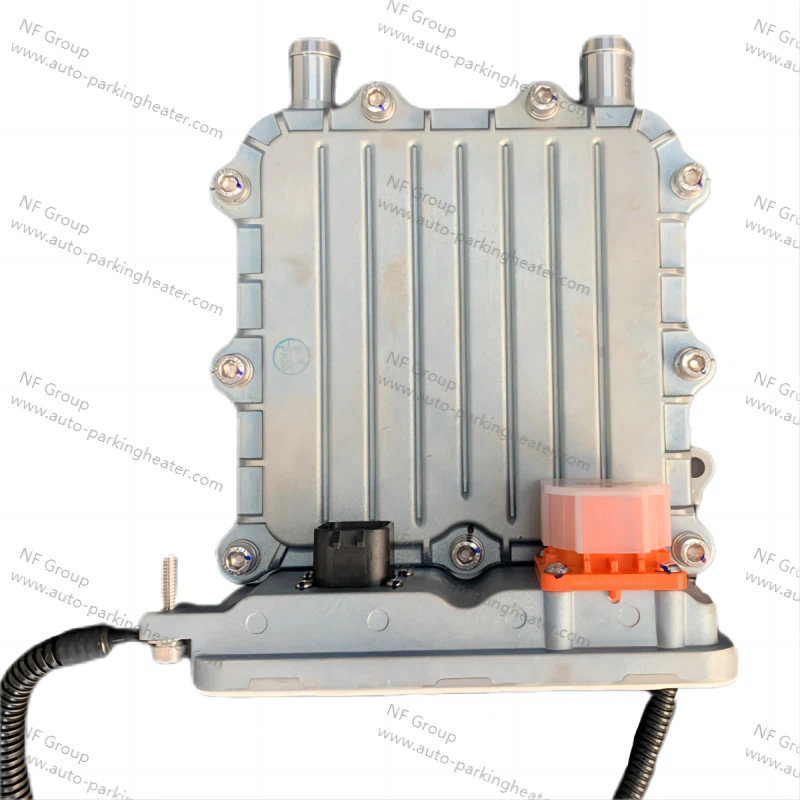

8KW PTC Heater Automotive

8KW PTC Heater Automotive





Power	8KW±10%（600VDC, T_In=60℃±5℃, flow=10L/min±0.5L/min）
Flow resistance	4.6KPa ( Refrigerant T = 25 ℃, flow rate = 10L/min)
Burst pressure	0.6 MPa
Storage temperature	-40~105 ℃
Use ambient temperature	-40~105 ℃
Voltage range (high voltage)	600V (450~750V) / 350V (250~450V) optional
Voltage range (low voltage)	12 V(9~16V)/24V (16~32V) optional
Relative humidity	5~95%
Supply current	0~14.5 A
Inrush current	≤25 A
Dark current	≤0.1 mA
Insulation withstand voltage	3500VDC/5mA/60s, no breakdown, flashover and other phenomena
Insulation resistance	1000VDC/200MΩ/5s
Weight	≤3.3 Kg
Discharge time	5s (60V)
IP protection (PTC assembly)	IP67
Heater tightness	0.4MPa, test 3min, leakage less than 500Par
Communication	CAN2.0 / Lin2.1









1、PTC heating element with self-controlled temperature, separation of water and electricity, safe and reliable.

2、Simple design, high thermal efficiency, waterproof up to IP67.

3、Low power aging and long service life.

4、With technical parameters of high temperature resistance, cold resistance, corrosion resistance, vibration resistance, anti-electromagnetic interference capability.

5、Parts must be marked with a recycling symbol in accordance with Q/LQB C-139 Recyclability Marking of Vehicle Parts and Materials Used in accordance with Q/LQB C-140 Requirements for Prohibited Substances in Motor Vehicles (Passenger Cars).

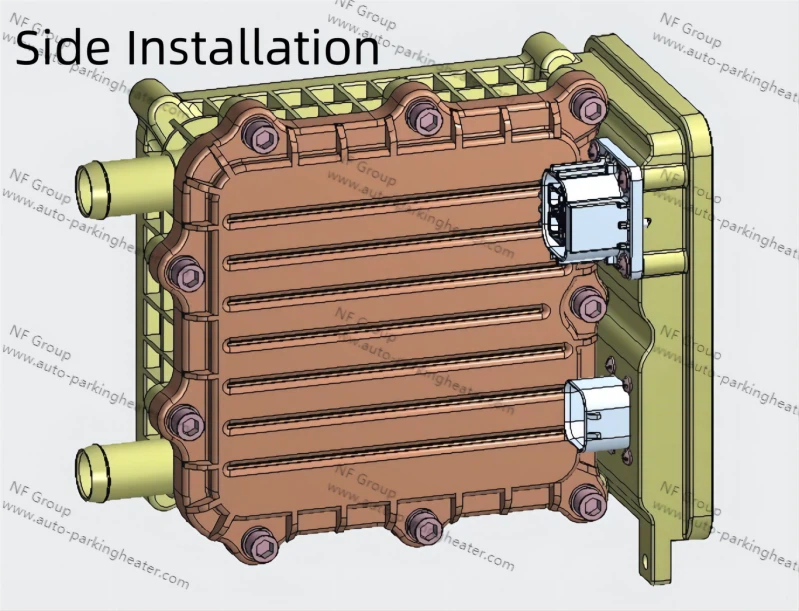

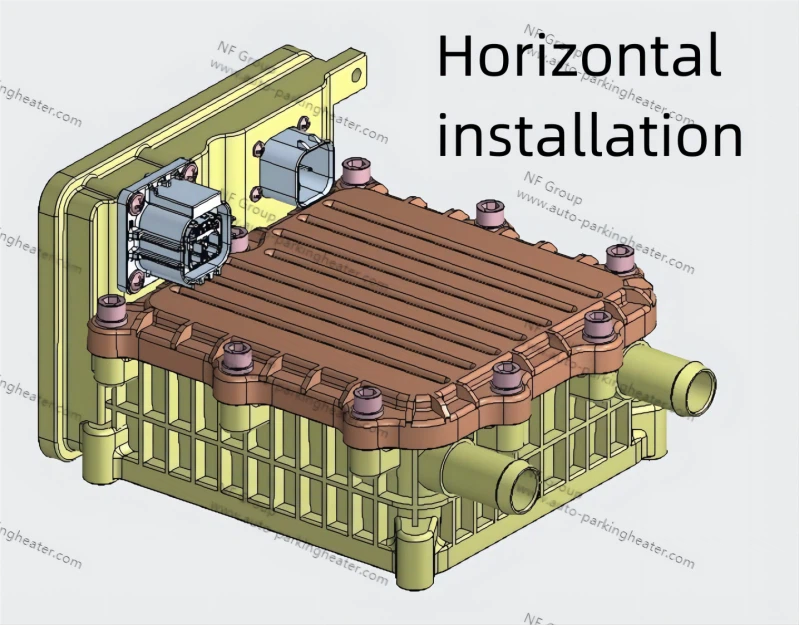

Two waterways flow in parallel and at the same time, and after two cycles, flow out from the other water port, the coolant surrounds all the heating core, the waterway is arranged with stall bars to increase the turbulent flow of coolant, the heat exchange rate is high, and the power density of PTC is effectively enhanced.
















Hebei Nanfeng Automobile Equipment (Group) Co.,Ltd is a group company with 6 factories, that specially produce parking heaters, parking air conditioners, electric vehicle heaters and heater parts for more than 30 years. We are the leading parking heater manufacturers in China.

Our factory's production units are equipped with high tech machineries, strict quality control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.

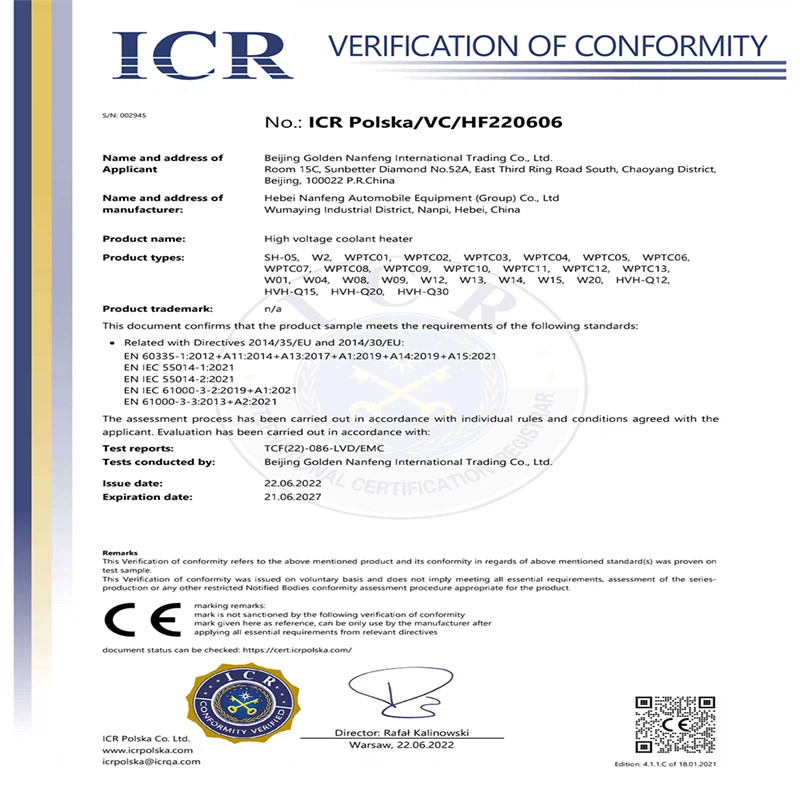

In 2006, our company has passed ISO/TS16949:2002 quality management system certification. We also bagged the CE certificate and Emark certificate making us amongst the only few companies in the world acquiring such high level certifications. Currently being the largest stakeholders in China, we hold a domestic market share of 40% and then we export them around the globe particularly in Asia, Europe and Americas.

Meeting the standards and demands of our customers have always been our top priority. It always encourages our experts to continuously brain storm, innovate, design and manufacture new products, impeccably suitable for the Chinese market and our customers from every nook of the world.



1、Q:What type of your product?
A:Our products include air parking heater、water parking heater、caravan air and water combi heater、electric vehicle parts、heater parts and parking air conditioner.
2、Q:Do you have after-sale service?
A:Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
3、Q:Is there the products tested before shipping?
A:Yes, of course. Our products are 100% quality guaranteed before shipment. We test every batch every day.
4、Q:Can you give me a discount?
A:Discount is available,but we have to see the real quantity,we have different price based on different quantity,how much discounts is determined by the quantity,moreover,our price is very competitive in the field.
5、Q:Can l visit your factory?
A:By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.



If you're looking for the 8kw ptc heater automotive, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
