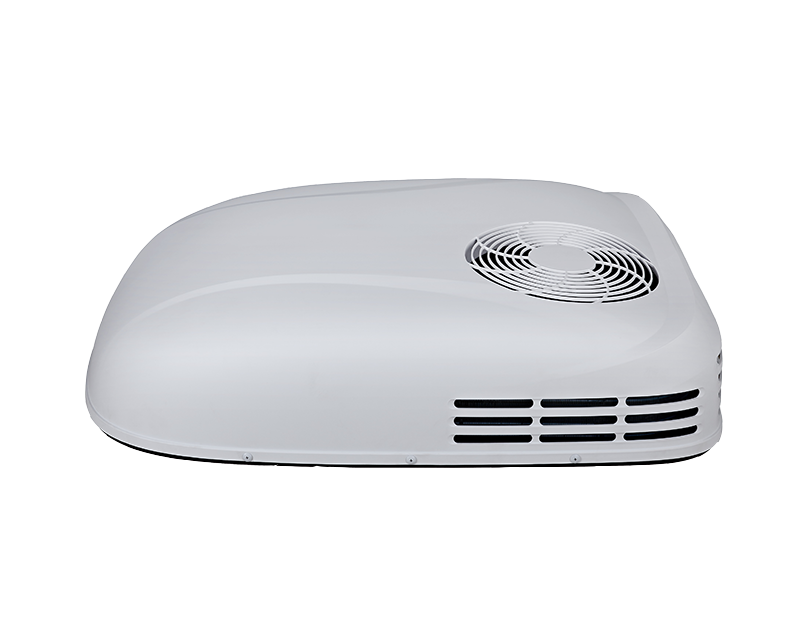

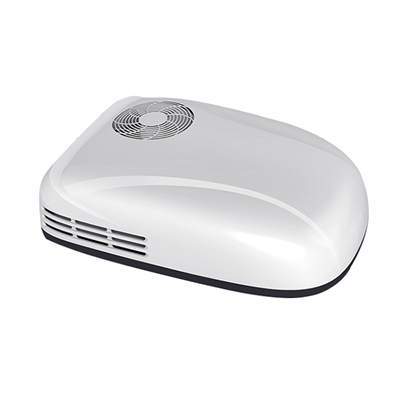

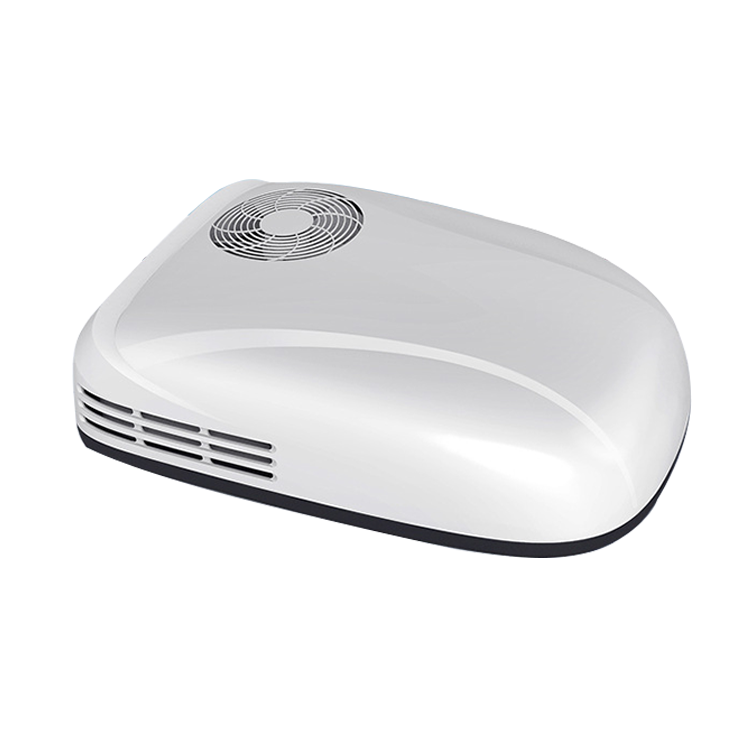

220V Caravan Parking Air Conditioner
Hebei Nanfeng Group is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.This overhead air conditioner has the advantages of low noise and fast cooling.
Description
220V Caravan Parking Air Conditioner
Products Description


User Guide:
The performance of air conditioner is related to the heating condition of insulation box of RV itself. Users can take some preventive measures to reduce heat entry, so as to improve the refrigeration performance of air conditioning equipment. When outdoor temperature is high, the following methods can be adopted to reduce the heat entry of RV and improve work efficiency:
(1) Park the RV in a cool place.
(2) Strengthen thermal insulation of the compartment, remove or block the opening in the vehicle, and block the window with shade curtains (shutters or hanging curtains).
(3) Close doors and windows or avoid frequent opening and closing of them.
(4) Avoid using heating devices inside the vehicle.
Products Parameter
|
Model |
NFRTN2-100HP | NFRTN2-135HP |
| Rated Cooling Capacity | 9000BTU | 12000BTU |
| Rated Heat Pump Capacity | 9500BTU | 12500BTU(but 115V/60Hz version has no HP) |
| Power consumption(cooling/heating) | 1000W/800W | 1340W/1110W |
| Electric current(cooling/heating) | 4.6A/3.7A | 6.3A/5.3A |
| Compressor stall current | 22.5A | 28A |
| Power Supply | 220-240V/50Hz, 220V/60Hz | 220-240V/50Hz, 220V/60Hz, 115V/60Hz |
| Refrigerant | R410A | |
| Compressor | Horizontal type, Gree or others | |

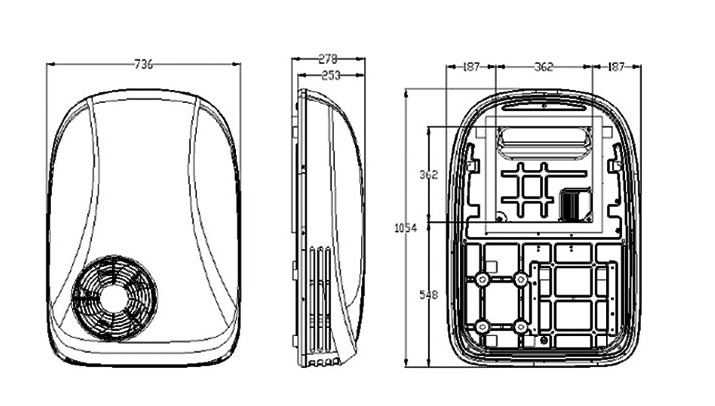

| Upper Unit Sizes (L*W*H) | 1054*736*253 mm |
1054*736*253 mm |

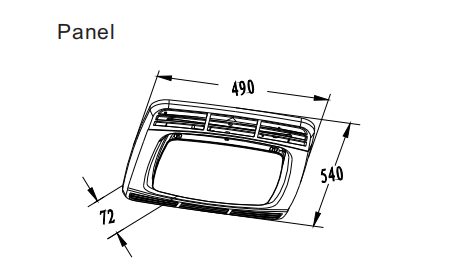

| Indoor panel net size | 540*490*65mm | 1054*736*253 mm |
| Roof opening size | 362*362mm or 400*400mm | |
| Net weight of roof host | 41KG | 45KG |
| Indoor panel net weight | 4kg | 4KG |
| Upper Unit Sizes (L*W*H) | PP Plastic Injection cover, metal base | Inner frame material: EPP |
Products Details




Interior Control Panel

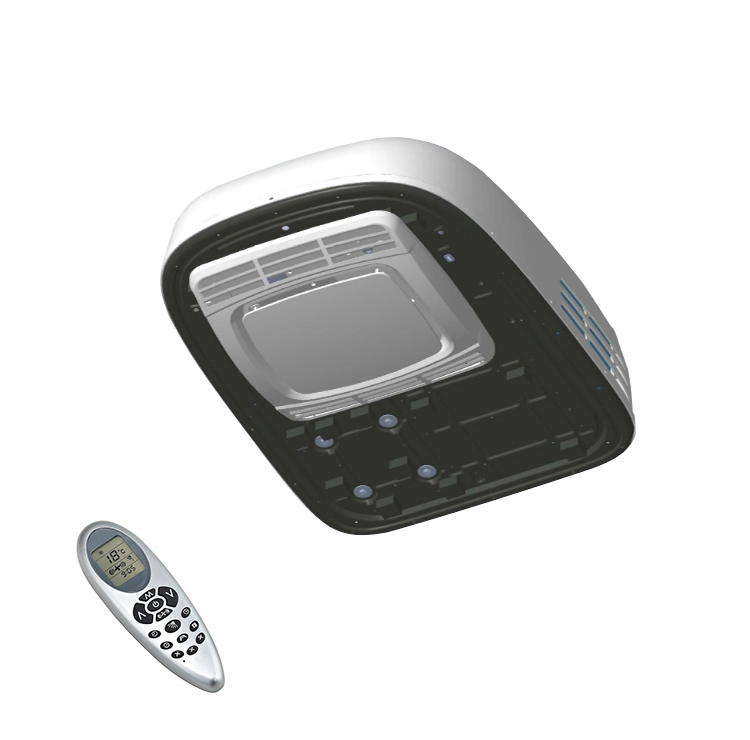

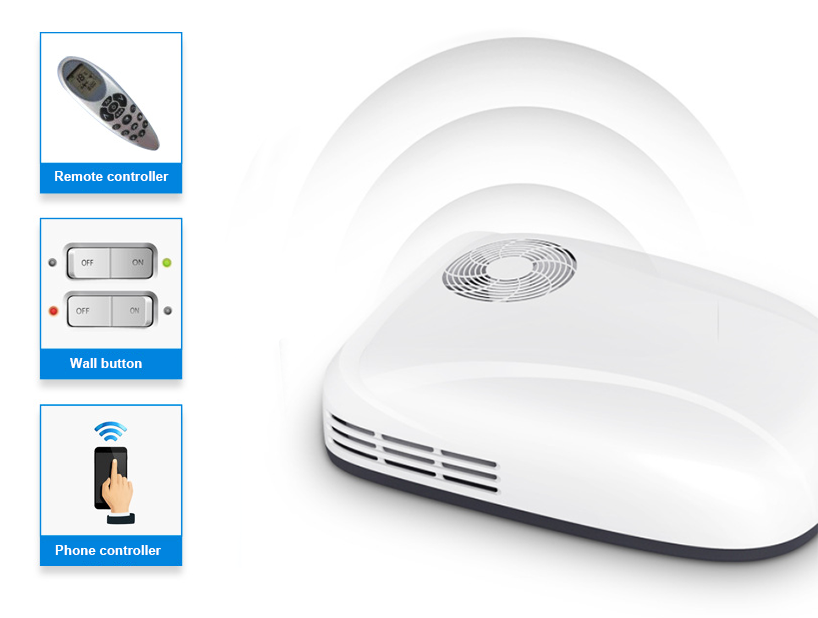

(1) Remote Controller and Wifi (Mobile Phone App) control, multi control of A/C and the separate Stove
(2) More humanized functions like a household air conditioners, Cooling, Dehumidification, Heat Pump, Fan, Automatic, Timer On/off, Ceiling Atmosphere Lamp (Multicolor LED strip) optional, etc
(3) Modish design, easy and reliable usage, more comfortable

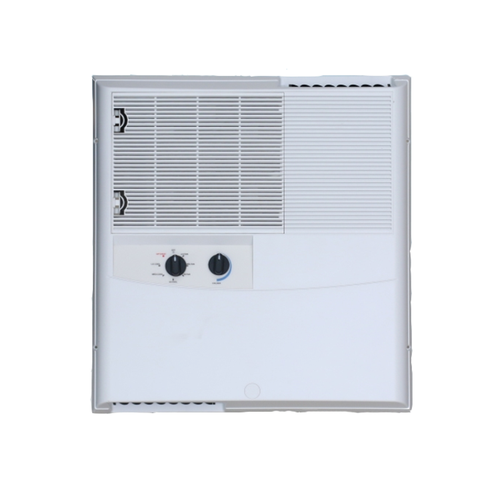

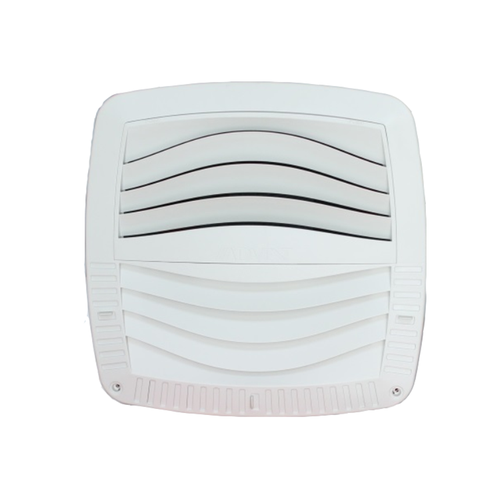

(1) Mechanical rotary knob control, fitting non ducted installation
(2) Control of cooling and heater only
(3) Easy and reliable usage, good noise insulation, uniform airflow at both ends (air outlet)

(1) Electric Control with a Wall-pad controller, fitting both ducted and non ducted installation
(2) Multi control of cooling, heater, heat pump and the separate Stove
(3) With Fast Cooling function via opening the ceiling vent
