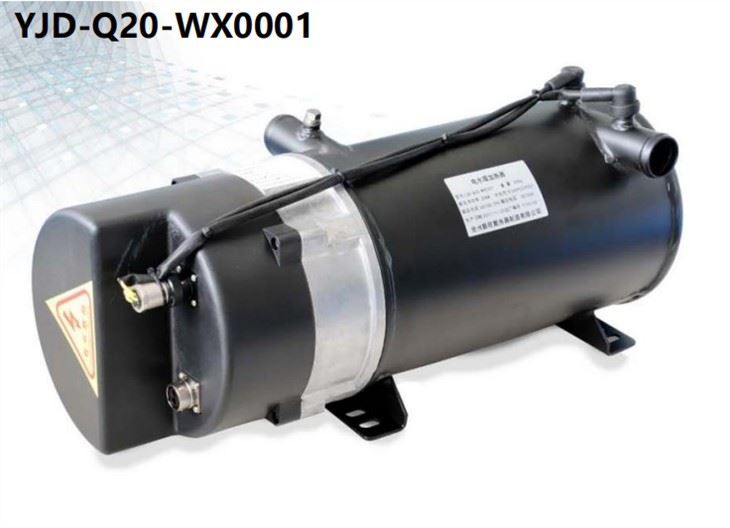

YJD-Q20-WX0001 Heater For​ Electric Bus

YJD-Q20-WX0001 heater for electric bus

Product description

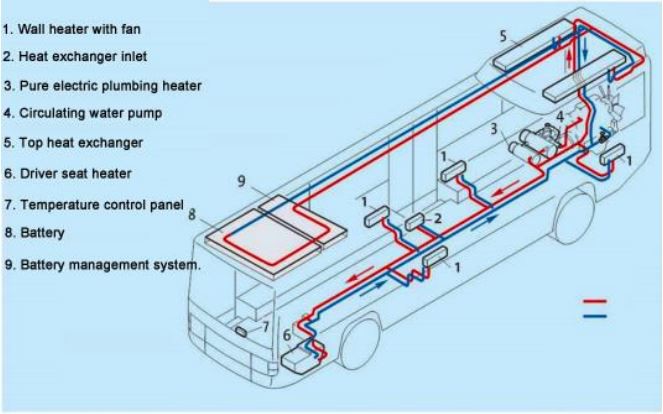

This product is a liquid heater, specially designed for pure electric passenger cars. Electric water heaters rely on on-board power supplies to provide heat sources for pure electric buses. The product has a rated voltage of 600V and a power of 20KW, which can be adapted to various pure electric passenger car models. The heating power is strong, and it provides sufficient heat to provide a comfortable driving environment for the driver and passengers. It can also be used as a heat source for battery heating.

This product can be used alone to replace traditional oil-fired liquid heaters to achieve complete energy saving, emission reduction, and cost reduction. In extremely cold areas, considering the lack of power, it can assist the use of traditional oil-fired liquid heaters. The method of use is to connect pure electric heaters with oil-fired heaters in series, and confirm whether there is a need to add water pumps according to actual needs to improve circulation efficiency.

Product advantages

Low maintenance cost	Environmental protection	Energy saving and comfortable
Product maintenance-free	100% no emissions	Intelligent temperature control
High heating efficiency	Quiet and no noise	Closed-loop control
Low usage cost	No waste	Stepless speed regulation
No need to replace consumables	Strong heat	Fast heating

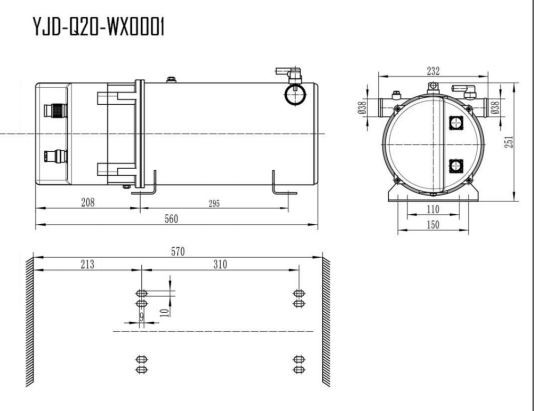

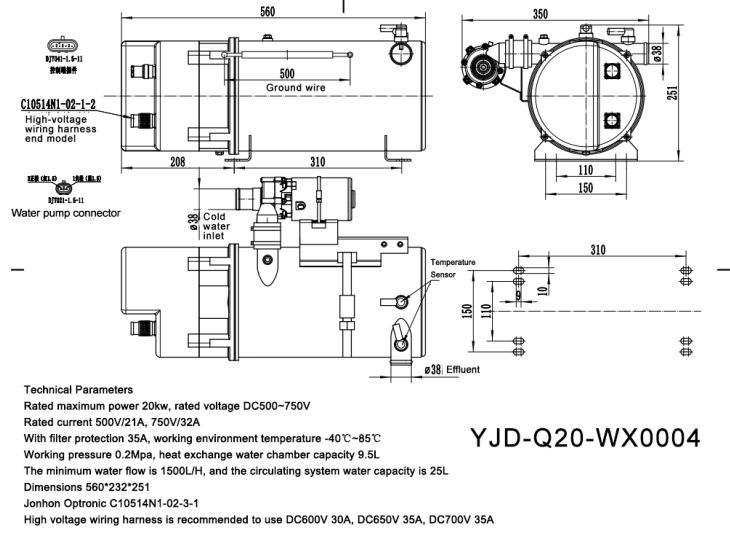

Product drawings

Product parameter

Rated voltage	DC500V-750V
Rated current	500V/21A750V/32A
Maximum power	20kW
Scope of application	Electric bus, zero emission and pollution-free
