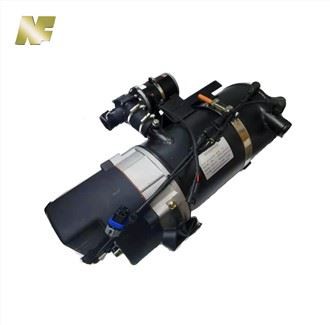

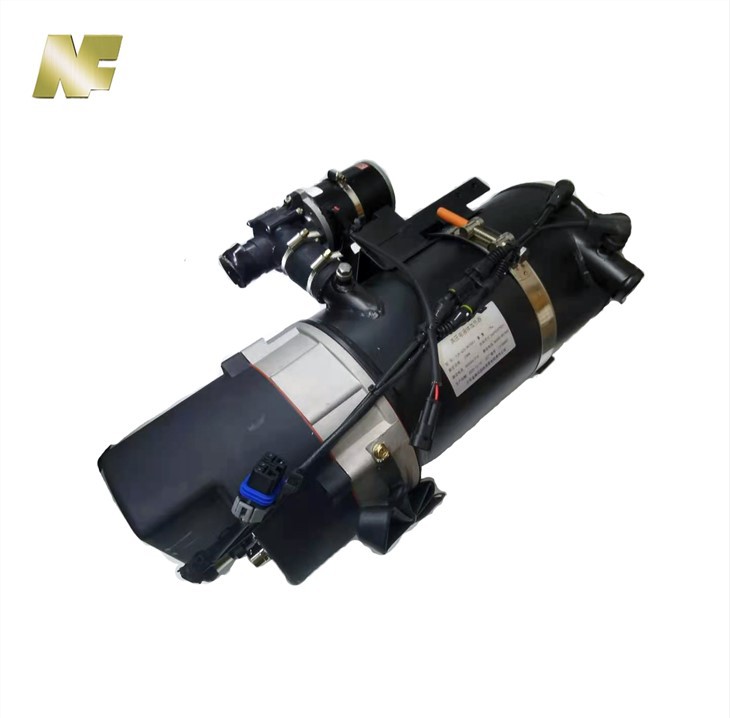

Electric Bus Water Heater

Electric bus water heater is a liquid heater for electric buses, specially designed for pure electric buses.

The heater relies on the on-board power supply to provide a heat source for the pure electric bus. The rated voltage of the product is 500V~750V, and the power is 20KW, which can be adapted to various pure electric passenger car models. The heating power is strong and it provides sufficient heat to provide a comfortable driving environment for the driver and passengers.

Installation location

The heater and water pump need to be installed in a set of refrigeration equipment, or a separate heating cycle system. The heating equipment should be installed as low as possible to ensure better water circulation, especially when the water pump cannot run on its own. Do not install near the generator set, try to install it in a ventilated and dustproof bin, so as to ensure the normal operation of the heating equipment.

Equipment name	YJD-Q20(Pure electric heater)
Theoretical maximum heating power	20KW
Rated voltage (used)	DC400V--DC750V
Overcurrent protection	35A
Working temperature	40°C ~+85°C
Storage environment temperature	40°C ~+90°
System pressure	≤2bar
Dimensions	560x232x251
Weight	16Kg
Minimum total cooling medium	25L
Minimum cooling medium flow	1500L/h

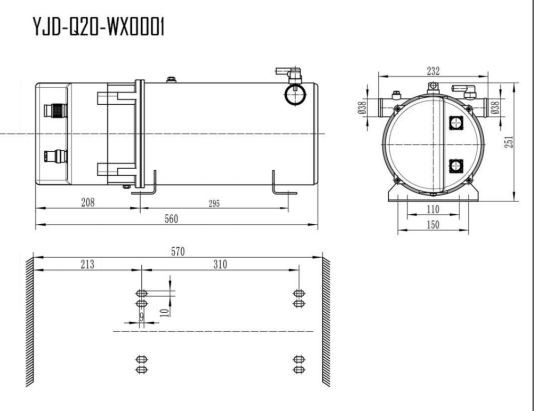

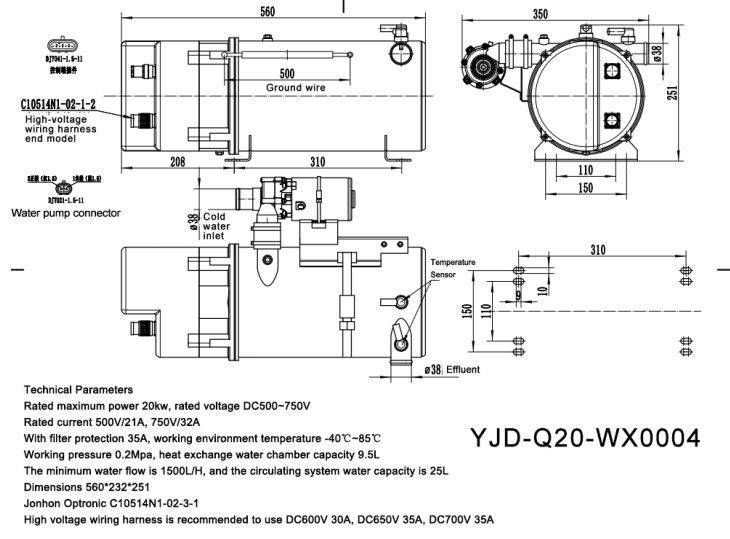

Dimmension of Electric bus water heater

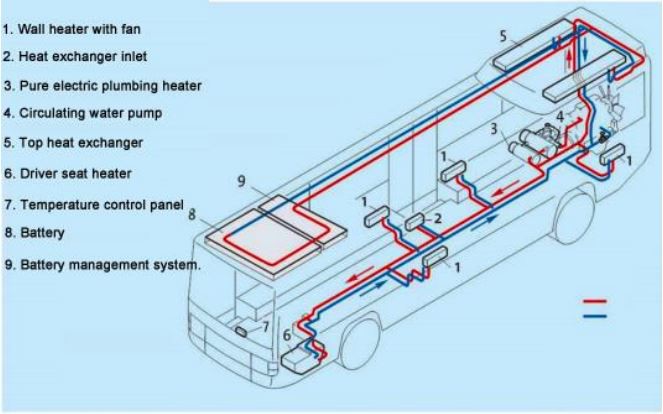

Application of Electric bus water heater

If you're looking for the electric bus water heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
