Top-mounted RV Air Conditioner

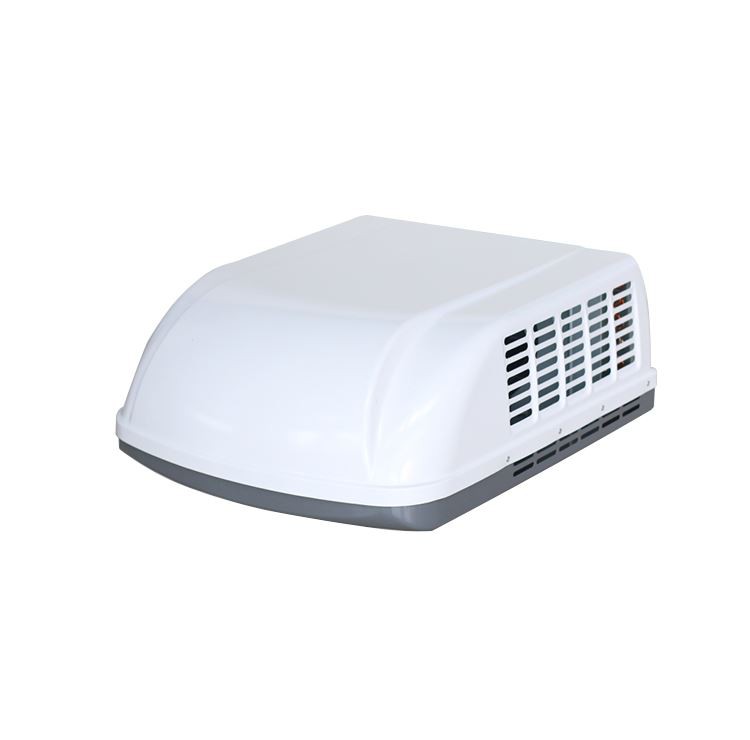

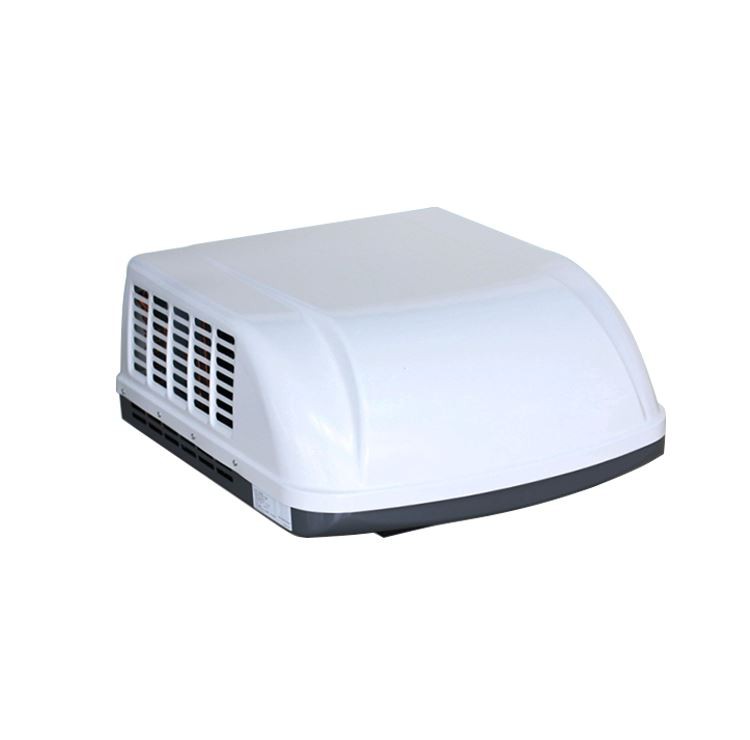

NFRT2-135 Top-mounted RV air conditioner

TECHINICAL PARAMENTER

Upper Unit Sizes (L*W*H)	890*760*335 mm
Net Weight	39KG
Rated Cooling Capacity	12000BTU
For 220V/50Hz,60Hz version, rated Heat Pump Capacity	12500BTU or optional Heater 2000W
For 115V/60Hz version, optional Heater 1400W only
Power Supply	220-240V/50Hz, 220V/60Hz, 115V/60Hz
Refrigerant	R410A
One motor + 2 fans  system
Vacuum forming ABS cover + Metal Base
Inner frame material	EPS
Compressor	vertical rotary type, LG or Rechi

GENERAL INFORMATION

A. This air conditioner / heat pump is designed for:

1.Installation on a recreational vehicle.

2. Mounting on the roof of a recreational vehicle.

3. Roof construction with rafters/joists on 16 inch centers.

4. 2.5" to 5.5" inch thick roofs. B. The efficiency of the air conditioner / heat pump will be affected by the conditions inside and outside of the RV. Reducing the heat gain of the RV will allow the air conditioner / heat pump to function with greater efficiency.

Here are some suggestions to reduce heat gain in your RV.

1. Select a shaded area to park your RV 2. Close windows and utilize the blinds and / or curtains. 3. Keep doors shut. 4. Avoid using appliances that produce heat. Beginning the cooling / heating process early in the day will greatly improve the heat pump’s ability to maintain the desired temperature. In high temperature and high humidity environments, the air conditioner / heat pump should be set in Cool mode with the Fan Speed in the high position, This will allow for optimal cooling efficiency. C. Condensation The manufacturer of this air conditioner / heat pump will not be responsible for damage caused by condensed moisture on ceilings or other surfaces, Air contains moisture and this moisture tends to condense on cold surfaces, When air enters the RV, condensed moisture may appear on the ceiling, windows, metal parts, etc. The air conditioner / heat pump removes this moisture from the air during cooling operation, Keeping doors and windows closed when this air conditioner /heat pump is operating will minimize condensation.
