Caravan Roof Air Conditioner

Caravan Roof Air Conditioner

When choosing your NF roof air conditioner, you need to take into consideration the length of the interior space of your caravan or motorhome and where the unit will be situated in the vehicle.

There are two methods for installing an air conditioner in your caravan or motorhome: one is a roof-mounted air conditioner and the other is the NFHB9000 bench air conditioner, which can be hidden in a bed box or cupboard. It is important to remember that countertop air conditioners need to breathe through the floor, so take into account the air ventilation required for these air conditioners.But this article mainly introduces ceiling air conditioners.



Caravan air conditioners come with a mains voltage of 220-240V AC. To supply power at 12 or 24 Volts DC, a suitable AC kit or similar must be fitted to the caravan or motorhome. Some recreational vehicles already have enough electrical power built in!The design and installation of caravan roof air conditioners are suitable for RVs to improve indoor temperature and provide a comfortable environment. It can cool your RV when it's hot and warm your RV when it's cold. The temperature can be controlled in both environments.





Model	NFRTN2-100HP	NFRTN2-135HP
Rated Cooling Capacity	9000BTU	12000BTU
Rated Heat Pump Capacity	9500BTU	12500BTU(but 115V/60Hz version has no HP)
Power consumption(cooling/heating)	1000W/800W	1340W/1110W
Electric current(cooling/heating)	4.6A/3.7A	6.3A/5.3A
Compressor stall current	22.5A	28A
Power Supply	220-240V/50Hz, 220V/60Hz	220-240V/50Hz, 220V/60Hz, 115V/60Hz
Refrigerant	R410A
Compressor	horizontal type, Gree or others
Upper Unit Sizes (L*W*H)	1054*736*253 mm	1054*736*253 mm

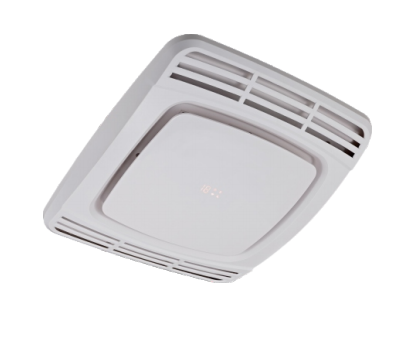

Indoor panel net size	540*490*65mm	540*490*65mm
Roof opening size	362*362mm or 400*400mm
Net weight of roof host	41KG	45KG
Indoor panel net weight	4kg	4kg
Dual motors + dual fans system	PP Plastic Injection cover, metal base	Inner frame material: EPP







1. Design style is unobtrusive, modern, trendy and dynamic.

2. After installing the NFRTN2220v roof air conditioner, reduce the height of the machine to an ultra-thin and 252 mm height.

3. The bark is formed by fine techniques.

4. NFTN2 220V roof trailer air conditioner with 2 motors and horizontal compressor provides high airflow with low noise.

5. Low power consumption



Note: during the use of this product, due to the great change of air temperature in the vehicle, when the temperature drops rapidly, part of condensate will adhere to the surface of objects near the air outlet, which is a normal phenomenon. After the air conditioner works normally for a certain period, it will be automatically dried and detached from the surface of objects. Therefore, when the air conditioner works, please close the doors and windows as much as possible to reduce the coagulation of water vapor on the surface of objects inside the vehicle.





Hebei Nanfeng Automobile Equipment (Group) Co.,Ltd is a group company with 1 foreign trade company(Beijing Golden Nanfeng International Trading Co.,Ltd) and 5 factories, that specially produce high voltage coolant heater, PTC air heater, water pumps, plate heat exchanger, parking heater, defroster, air conditioner, other electric bus parts and so on. It lies in the industrial area of Wumaying of Nanpi county of province Hebei, covers an area of 80,000㎡.

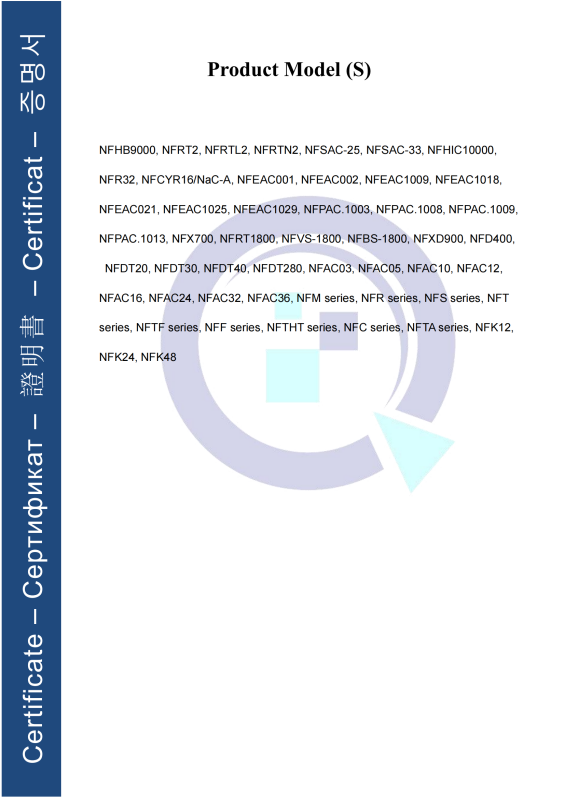

In 2006, our company has passed ISO/TS16949:2002 quality management system certification. We also got the CE certificate and E-mark certificate. Currently being the largest stakeholders in China, we hold a domestic market share of 40% and then we export them around the globe particularly in Asia, Europe and Americas.

Meeting the standards and demands of our customers have always been our top priority. It always encourages our experts to continuously brain storm, innovate, design and manufacture new products, impeccably suitable for the Chinese market and our customers from every nook of the world.



1. Long warranty. Compressor is guaranteed for 3 years and other parts are guaranteed for 1 year.
2. Quick reply. We will reply for your inquiry in 12 hours.
3. OEM & ODM are welcome. Package,product,logo,etc.
4. High quality after-sale. After received the product, if you have any question about it, please contact us, we will follow up until you are satisfied.

Hot Tags: caravan roof air conditioner, China, factory, suppliers, manufacturers, seller, wholesale, quotation
