Roof Mounted New Energy Air Conditioner
rooftop air conditioner for truck are suitable for various types of vehicles, 12V, 24V products are suitable for light trucks, trucks, saloon cars, construction machinery and other vehicles with small skylight openings.48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweeper and other battery powered small vehicles.
Description

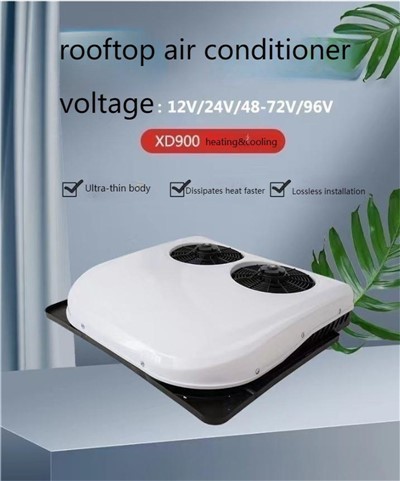

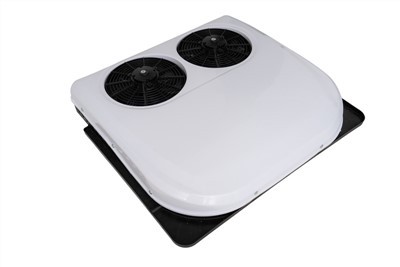

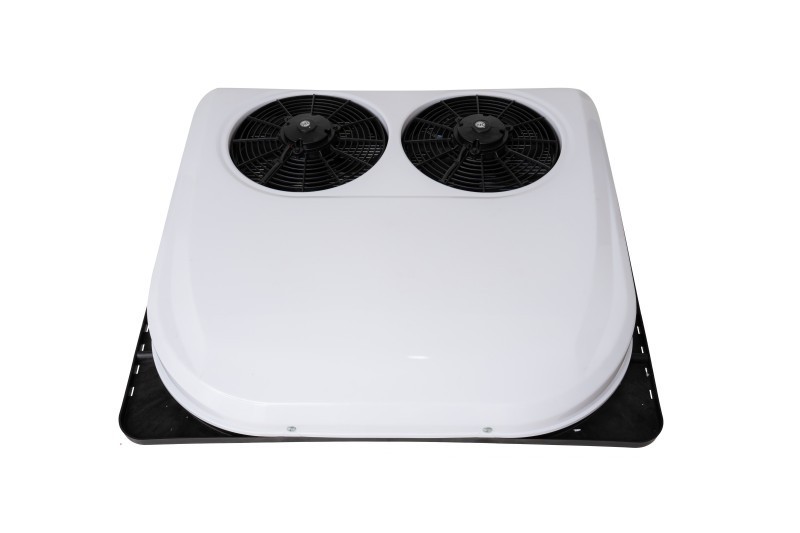

Roof-mounted New Energy Air Conditioner
Products Description
12V product parameters
| power | 300-800w | rated voltage | 12v |
| cooling capacity | 600-1700w | battery requirements | ≥200A |
| rated current | 60A | refrigerant | R-134a |
| maximum current | 70A | electronic fan air volume | 2000M3/h |
24V product parameters
| power | 500-1200w | rated voltage | 24v |
| cooling capacity | 2600w | battery requirements | ≥150A |
| rated current | 45A | refrigerant | R-134a |
| maximum current | 55A | electronic fan air volume | 2000M3/h |
|
Heating power(optional) |
1000W |
Maximum heating current(optional) |
45A |
1)Air conditioning internal standardized vehicle grade design, modular layout, stable performance.
2)The whole aircraft is made of high-strength material, which allows it to bear load without deformation, is environmentally protected and light, is resistant to high temperatures, and is anti-aging.
3) The compressor adopts a scroll type, vibration resistance, high energy efficiency, and low noise.
4) The Bottom plate arc design better fits the body, has a beautiful appearance, and is streamlined, reducing wind resistance.
5)Air conditioning can be connected to the water pipe, free of condensed water flowing.
Product Installation
1. Clean the surrounding area of the skylight to ensure that there is no debris, dust, or uneven deformation.
2. Stick the high-elastic sealing sponge strip to the entire circle of the skylight (the sponge strip should be higher than the raised surface of the skylight)---stick the high-elastic sponge strip to the outer contour of the skylight (the sealing sponge on the skylight should be flat, without gaps, defects, deformation, wrinkles, etc., otherwise it will affect the sealing between the air conditioner host and the skylight and cause air leakage, water leakage, etc.)
3. Apply a circle of glass glue on the surface of the high-elastic sponge strip. (It is recommended to apply more)

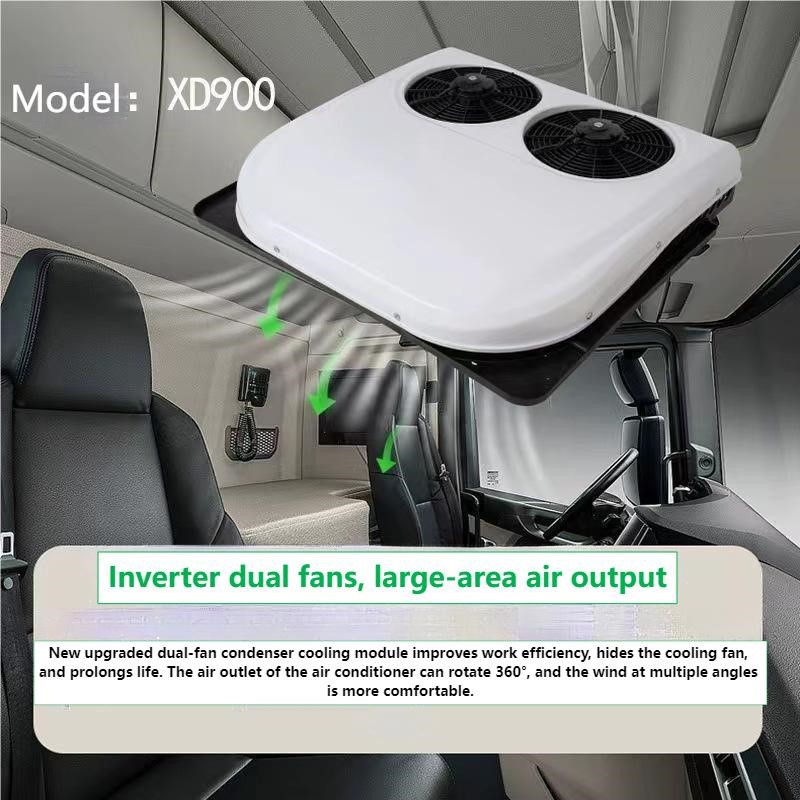

4. Put the air conditioner internal unit (including four fixing screws) into the skylight, slightly adjust the front, back, left and right positions, and compare them with the decorative plate so that the decorative plate can cover other exposed internal positions except the air outlet of the air conditioner after installation.
5. Use the lining strip to fix the air conditioner host (the fixing torque should not be too large, otherwise it will cause the air conditioner bottom plate to deform, causing the air conditioner drainage failure, and in severe cases, it will cause the air conditioner to leak). After the air conditioner main unit is fixed, check from the car whether the glass glue between the air conditioner bottom plate and the high elastic sealing sponge overflows in a full circle. If it overflows in a full circle, it proves that the seal is intact, otherwise, it needs to be refilled. Finall,y install the decorative panel.
6. Connect the cable to the battery (the voltage V number varies according to the model, and the positive and negative poles must not be connected in reverse, otherwise it will cause damage to the air conditioner!).
(Note again: 1. When fixing the lining strip, the torque cannot be too large. The glass glue between the air conditioner's bottom plate and the high elastic sponge strip overflows in a full circle. 2. The air inlet position is strictly prohibited from being blocked. Do not pull out the water outlet glue plug. The heat dissipation direction is strictly prohibited from being blocked.)
Products Precautions
1. Before installation, please make sure that the battery and generator are matched: 12V air conditioners require a battery ≥200A and a generator ≥100A; 24V air conditioners require a battery ≥150A and a generator ≥80A; 48- 72V air conditioners recommend a battery ≥100A.
2. It is recommended to clean the condenser regularly to prevent serious dust accumulation and affect the cooling effect.
3. This product has been added with refrigerant at the factory and does not need to be added repeatedly.
4. If it is not used for a long time, be sure to cut off the power supply and remove the power cord from the battery.
Dimension
Air conditioner size: length 950, width 835, height 149mm
Decorative panel size: 760*530mm
Interior unit size: length 440, width 277, height 125mm
Mounting foot size: 570*285mm
Products Application

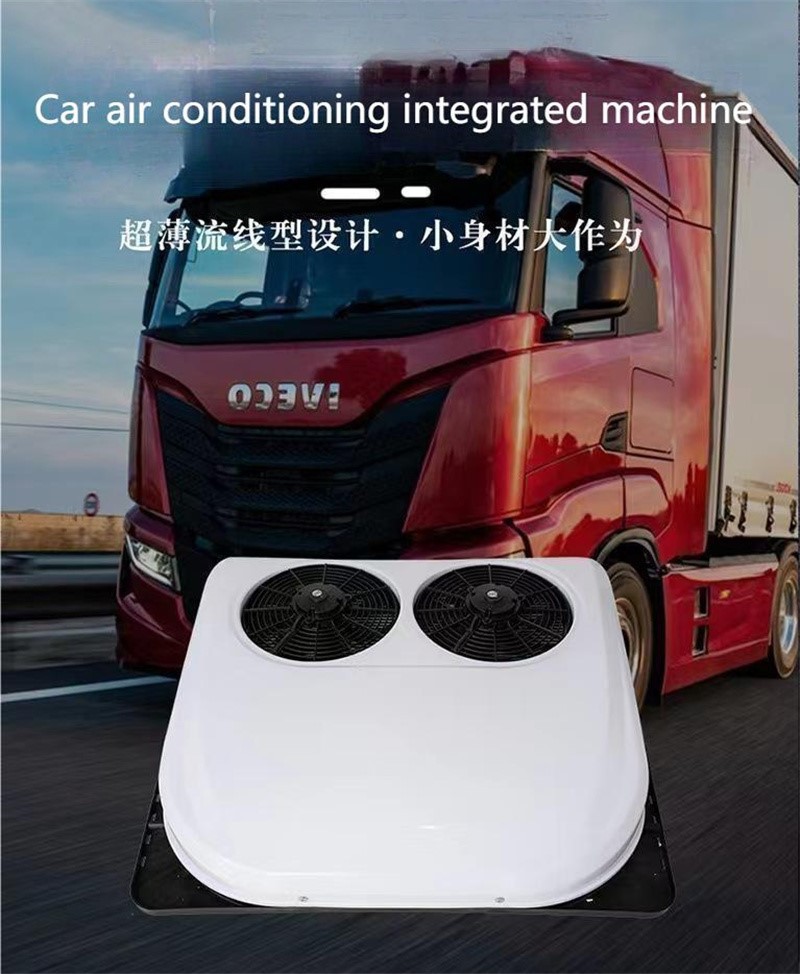

Application of parking air conditioners
Solve the cooling needs when parking: Parking air conditioners are designed specifically for trucks, solving the problem that the original vehicle air conditioner cannot be used when the vehicle is parked. It is powered by a DC12V/24V/36V on-board battery and does not require a generator.
Energy saving and environmental protection: Compared with traditional on-board air conditioners, parking air conditioners do not rely on vehicle engine power, which can save fuel and reduce environmental pollution.
Various installation methods: Parking air conditioners have two structural forms: split and integrated. The split type is further divided into split backpack type and split top type.
Wide application scenarios: In addition to heavy trucks for long-distance transportation, parking air conditioners are also suitable for scenes such as engineering vehicles and camping vehicles that require long-term rest in the car

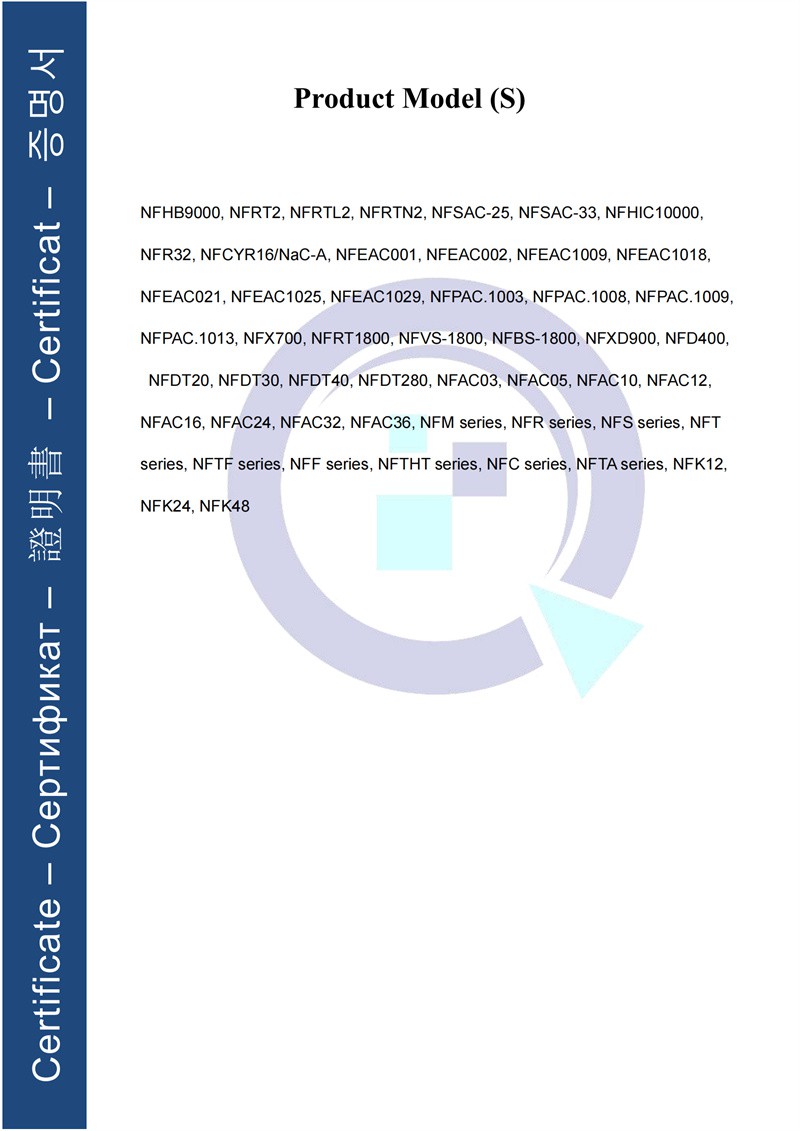

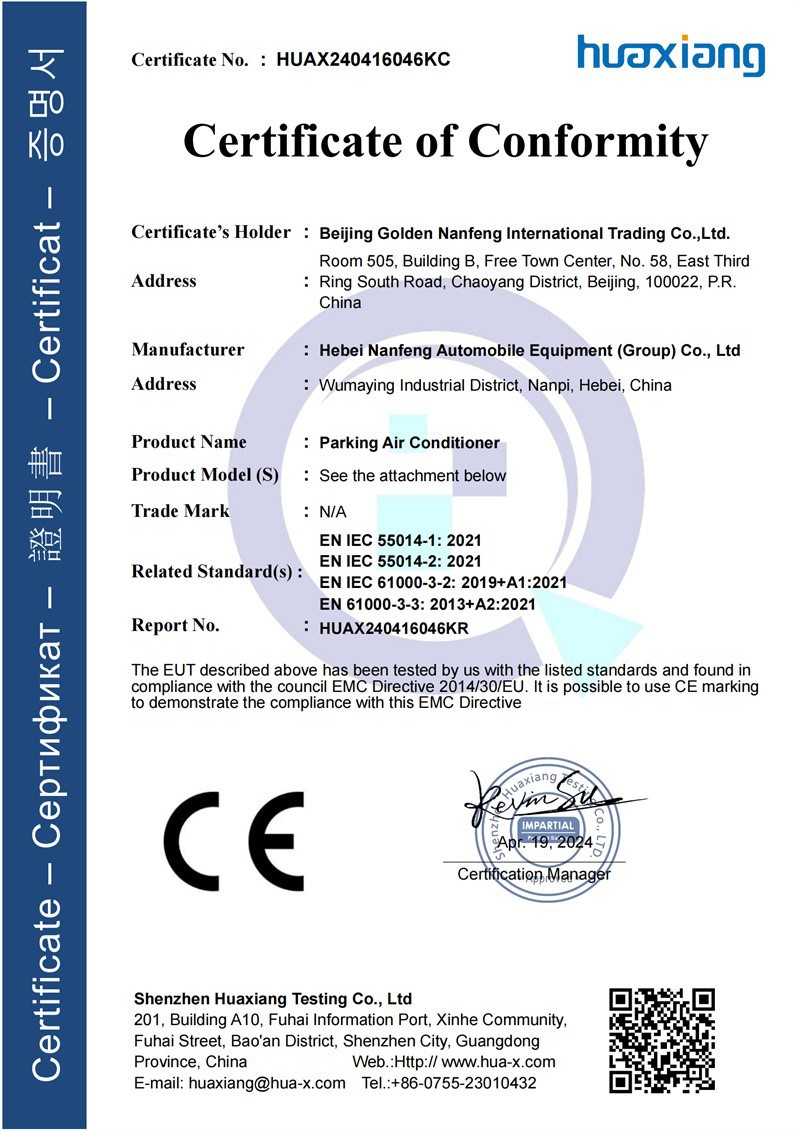

certification and introduction
Products FAQ
FAQ
Q: How does the rooftop truck air conditioner work when the engine is off?
A: The rooftop air conditioner of a truck is driven by the onboard battery or another device when the vehicle is parked and the engine is turned off.
Q: Is it easy to install a rooftop truck air conditioner?
A: For models with built-in sunroofs, the installation is relatively simple and no holes need to be drilled; models without sunroofs need to have the roof installed, and the installation process is relatively complicated.
Q: Does the rooftop air conditioner affect the interior space of the cab?
A: No, the rooftop air conditioner adopts an integrated design and is installed on the top of the cab, which takes up almost no space in the cab.
Q: Is the rooftop air conditioner energy-efficient?
A: Yes, the rooftop air conditioner adopts fixed frequency technology, has high cooling efficiency, and relatively low power consumption.
Q: What is the noise level of a rooftop truck air conditioner?
A: The noise level of the rooftop air conditioner is relatively loud when it is running, but some brands have reduced the noise by optimizing the design
