EV Air Conditioner

EV Air Conditioner

Product Features:
1) 12V and 24V products are suitable for light trucks, trucks, saloon cars, construction machinery, and other vehicles with small skylight openings.
2) 48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweepers, and other battery-powered small vehicles.
3) Vehicles with sunroofs can be installed without damage, without drilling, without damage to the interior, and can be restored to the original car at any time.
4) Air conditioning internal standardized vehicle grade design, modular layout, stable performance.
5) The whole aircraft has high-strength material, bearing load without deformation, environmental protection and light, high-temperature resistance, and anti-aging.
6) Compressor adopts scroll type, vibration resistance, high energy efficiency, and low noise.
7) Bottom plate arc design, more fits the body, beautiful appearance, streamlined design, reduced wind resistance.
8) Air conditioning can be connected to the water pipe, free of condensed water flowing troubles.





12v product parameters

Power	300-800w	Rated voltage	12v
Cooling capacity	600-2000w	Battery requirements	≥150A
Rated current	50A	Refrigerant	R-134a
Maximum current	80A	Electronic fan air volume	2000M3/h



24v product parameters

Power	500-1000w	Rated voltage	24v
Cooling capacity	2600w	Battery requirements	≥100A
Rated current	35A	Refrigerant	R-134a
Maximum current	50A	Electronic fan air volume	2000M3/h



48-72v product parameters

Input voltage	DC43V-DC86V	Minimum installation size	400mm*200mm
Power	800W	Heating power	1200W
Refrigerating capacity	2200W	Electronic fan	120W
Blower	400m3/h	Number of air outlets	3 pieces
Weight	20kg	External machine dimensions	700*700*149mm









Air conditioning installation steps:
The bottom plate of this model adopts an arc design, which is suitable for installing some arc roofs, not the deformation of the bottom plate. This model is standard with a high elastic sealing sponge, although the bottom plate is curved design, but the use of a high elastic sealing sponge is also suitable for the installation of flat top models, please do not worry.



This model is equipped with an air conditioner fixed screw extension pack. If the air conditioner installation screw is not long enough, you can use the screw extension pack and adjust the screw length by yourself.

1-Clean the surrounding area of the skylight to ensure that there is no debris, dust, and concave and convex deformation.
2-sunroof, the paste high elastic sealing sponge article (article sponge than skylight uplift side) - the high elasticity sponge article according to the days out of the window profile against (skylight on sealing sponge to level off, do not have a crack, incomplete, deformation, wrinkling, etc., affect the sealing of air conditioning host and skylight otherwise cause air leakage, water leakage, and so on.)
3-Put a circle of glass glue on the surface of the high elastic sponge strip. (I suggest typing more)
4-air conditioning machine part (including four fixed screws) into the skylight, adjust the front, back, left, and right position, with decorative plate, make decorative plate installed can cover the air conditioning outlet outside the other internal exposed position.
5-the use of pull lining fixed air conditioning host (fixed torque can not be too large, too large will cause deformation of air conditioning floor, air conditioning drainage failure, serious will lead to air conditioning water leakage.). After the main air conditioner is fixed, check whether the glass glue between the bottom plate of the air conditioner and the high elastic sealing sponge overflows in the whole circle from the car. If the glass glue overflows in the whole circle, it proves that the seal is intact, otherwise it needs to fill the glue. Finally, install the decorative plate.
6-Connect the cable to the battery 48V 60V or 72V (voltage V number varies according to different models, positive and negative poles shall not be connected, otherwise it will cause air conditioning damage!).

Note again: when fixing the lining strip, the torque should not be too large, as long as the glass glue between the base plate of the air conditioner and the high elastic sponge strip overflows in a full circle.

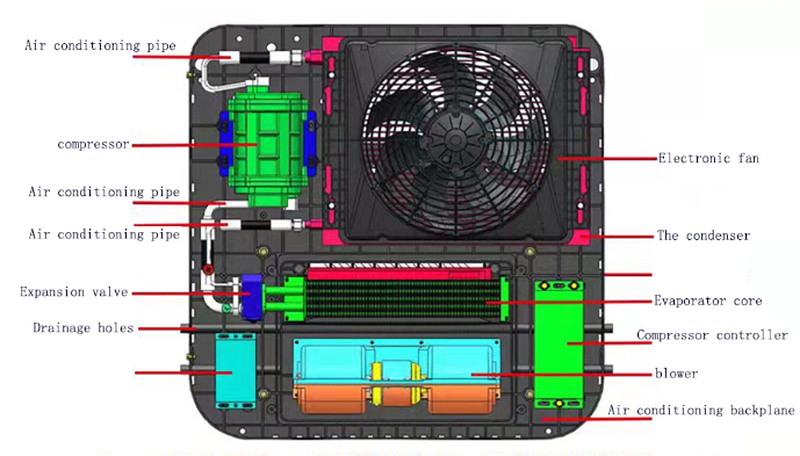

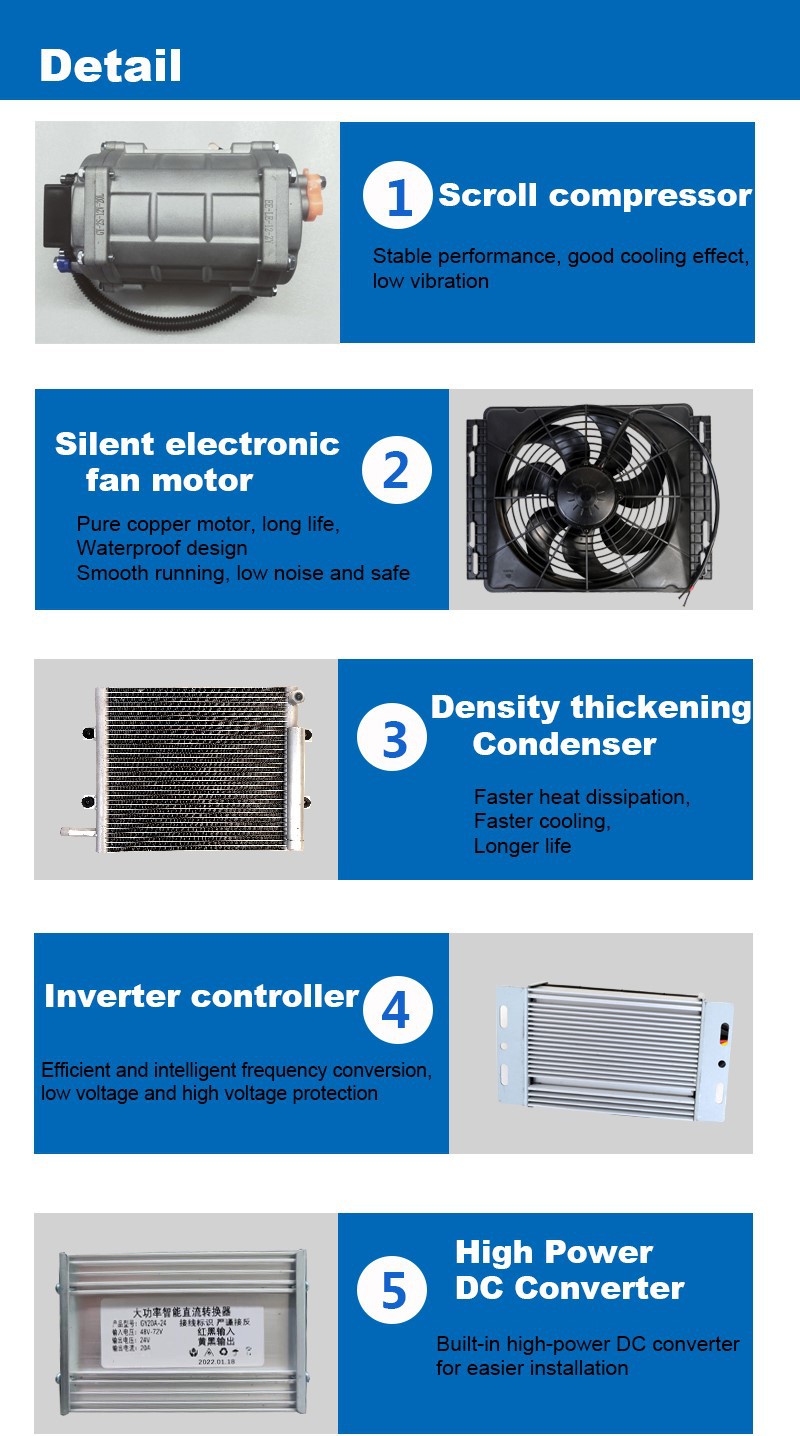

1. Scroll compressor: Stable performance, good cooling effect, low vibration.

2. Silent electronic fan motor: Pure copper motor, long life; Waterproof design; Smooth running, low noise, and safe.
3. Density thickening condenser: Faster heat dissipation; Faster cooling; Longer life.
4. Inverter controller: Efficient and intelligent frequency conversion, low voltage and high voltage protection.
5. High-power DC converter: Built-in high-power DC converter for easier installation.













1. Q: What vehicles can this air conditioner be used on?
A: 12v/24v air conditioners can be used in Light trucks, Cargo, Large trucks, and Flatbed trucks. 48-72V air conditioners are suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweepers, and other batter-powered small vehicles.

2. Q: How long is the warranty period of this air conditioner?
A: The warranty period of the air conditioner is one year.

3. Q: What is included if I buy this air conditioner?

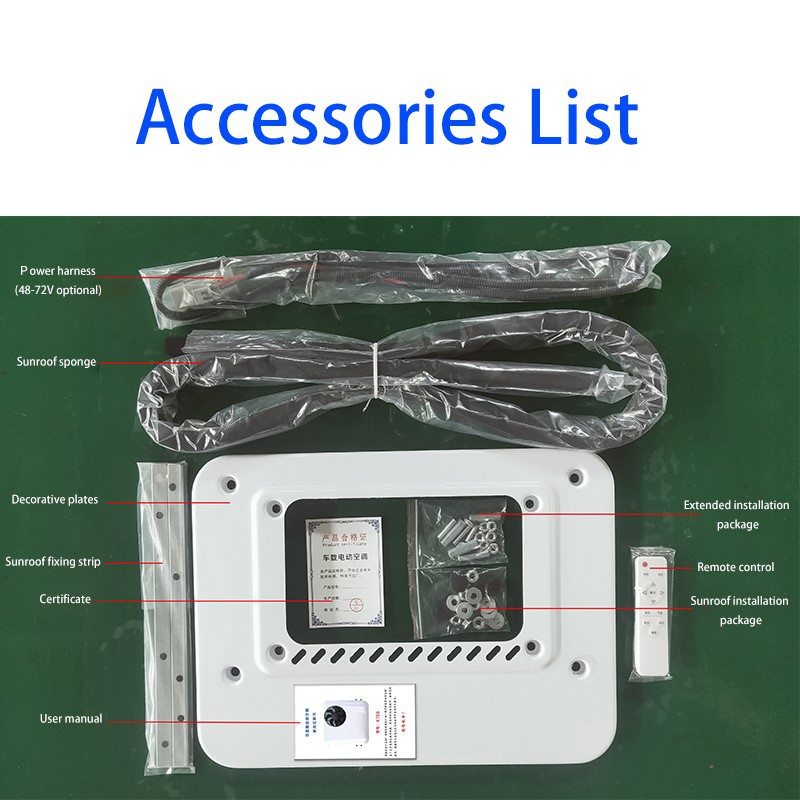

A: Including the air conditioner host and a full set of installation accessories.
