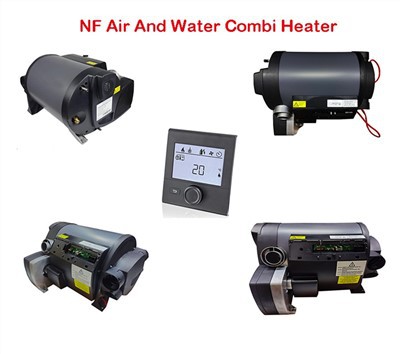

High Quality Combi Heater For RV Camper
Water and air integrated heater for RV is a special heater for caravan that integrates hot water and warm air. This heater cannot be used in bus or dangerous goods carriers. Hebei Nanfeng Group is the largest manufacturer of heating and cooling equipment in China and the designated supplier of Chinese military vehicles.
Description

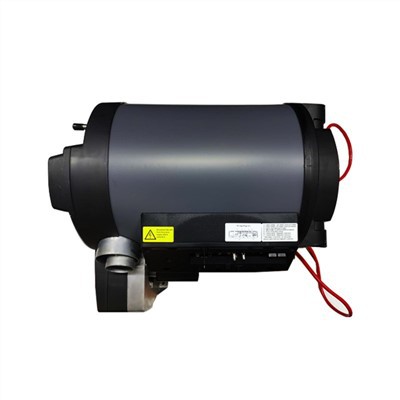

High Quality Combi Heater for RV Camper
Products Description

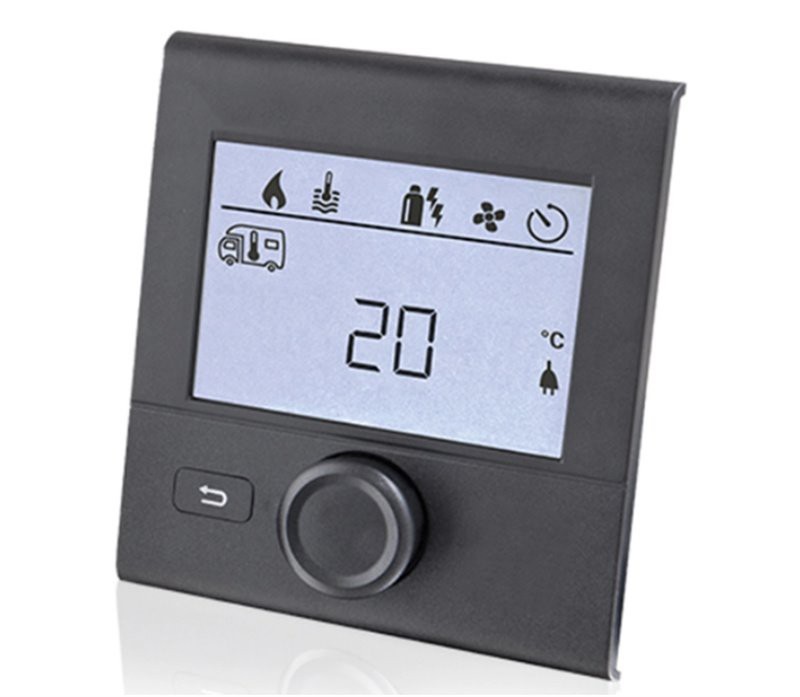

Control Panel:
Main features and components
Heating function: RV hot water heater and air heater are usually equipped with a heating function, which can transfer warm air to the entire RV through the heating system to ensure a livable indoor temperature in cold weather conditions.
Hot water supply: This all-in-one machine has a built-in hot water system that can provide hot water to the RV. Users can use this hot water to meet their bathing, washing and kitchen water needs.
Compact design: Due to the limited space in RVs, all-in-one RV hot water heaters and air heaters usually adopt a compact design, integrating heating and hot water functions into one device to save maximum space.
High efficiency: Advanced RV hot water heater and air heater usually adopt high-efficiency technology to ensure sufficient heating and hot water under limited power supply.
Intelligent control: Some models feature intelligent control systems that can intelligently adjust the operating parameters of the heating and hot water systems based on indoor temperature and user needs.
Safety: In order to ensure the safety of users, this kind of all-in-one machine usually has built-in safety protection measures, such as over-temperature protection, over-voltage protection, etc.
Products Parameters
| Rated Voltage | DC12V |
| Operating Voltage Range | DC10.5V～16V |
| Short-term Maximum Power Consumption | 8-10A |
| Average Power Consumption | 1.8-4A |
| Fuel type | diesel/petrol |
| Gas Heat Power (W) | 2000 4000 |
| Fuel Consumption (g/h) | 240/270 |
| Gas Pressure | 30mbar |
| Warm Air Delivery Volume m3/h | 287max |
| Water Tank Capacity | 10L |
| Maximum Pressure of Water Pump | 2.8bar |
| Maximum Pressure of System | 4.5bar |
| Rated Electric Supply Voltage | ～220V/110V |
| Electrical Heating Power | 900W 1800W |
| Electrical Power Dissipation | 3.9A/7.8A 7.8A/15.6A |
| Working (Environment) Temperature | -25℃～+80℃ |
| Weight (kg) | 15.6kg |
| Dimensions (mm) | 510×450×300 |
| Working Altitude | ≤1500m |

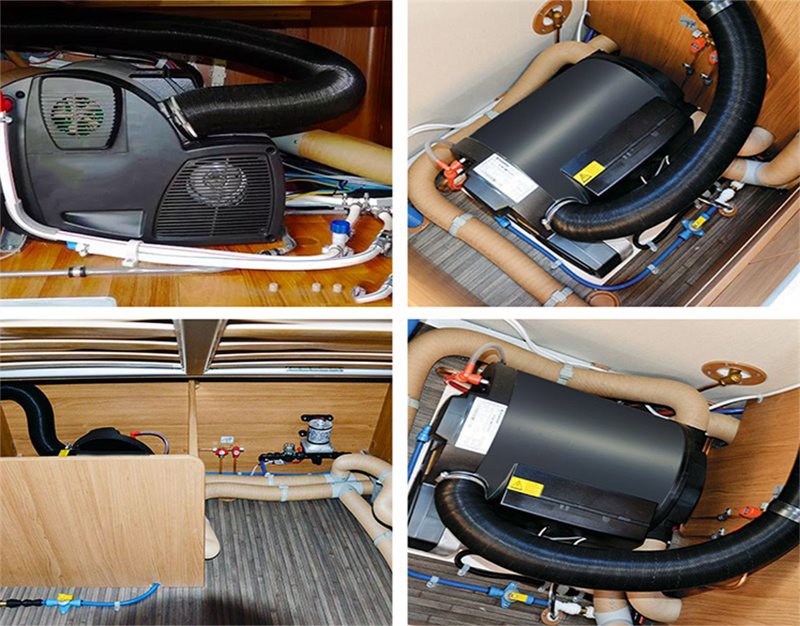

Installation and Application
Application
As winter approaches, how to maintain warmth and hot water supply inside the RV in cold weather is a concern for many RV users. Our RV combination heater has emerged as an essential equipment for winter RVs and campers.
1. For RV users camping in winter or living in high-altitude areas, the heater can provide continuous heating for the RV in cold environments.
2. Whether camping in a desert or forest wilderness environment, the supply of hot water is crucial for RV living. The heater can heat domestic water for the RV, meeting customers' needs for bathing and cooking.
3. The heater can adjust its working state according to the temperature inside the car and the owner's demand for hot water, thereby reducing energy consumption.
4. The heater is equipped with multiple safety protection functions, which can prevent equipment and pipeline damage caused by low temperature in extreme weather conditions, and automatically shut down the heater for overheating protection under high temperature conditions to avoid danger.
5. Its small size and two in one heating and hot water system allow the heater to occupy a smaller space inside the RV, freeing up more storage and living space for the RV.

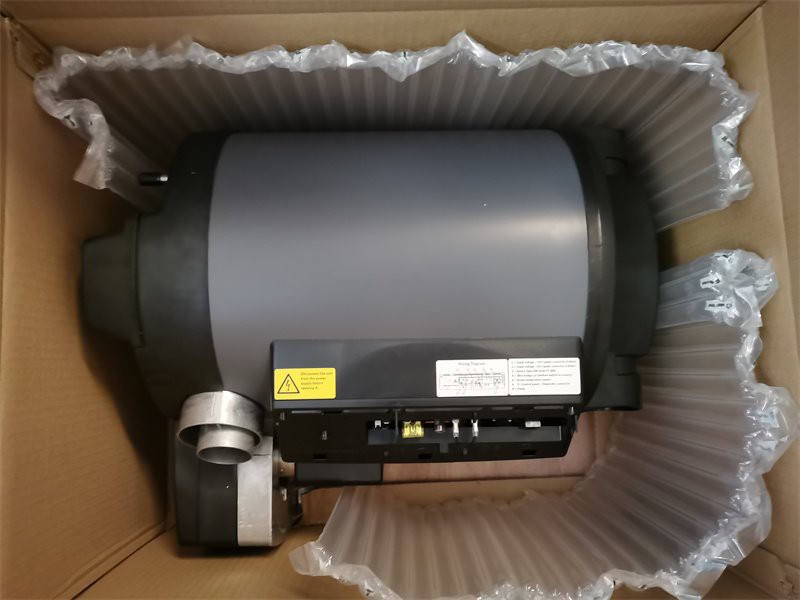

Packing
