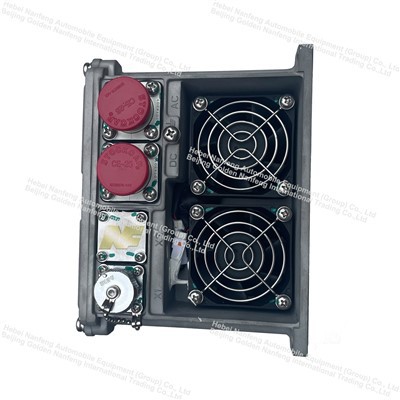

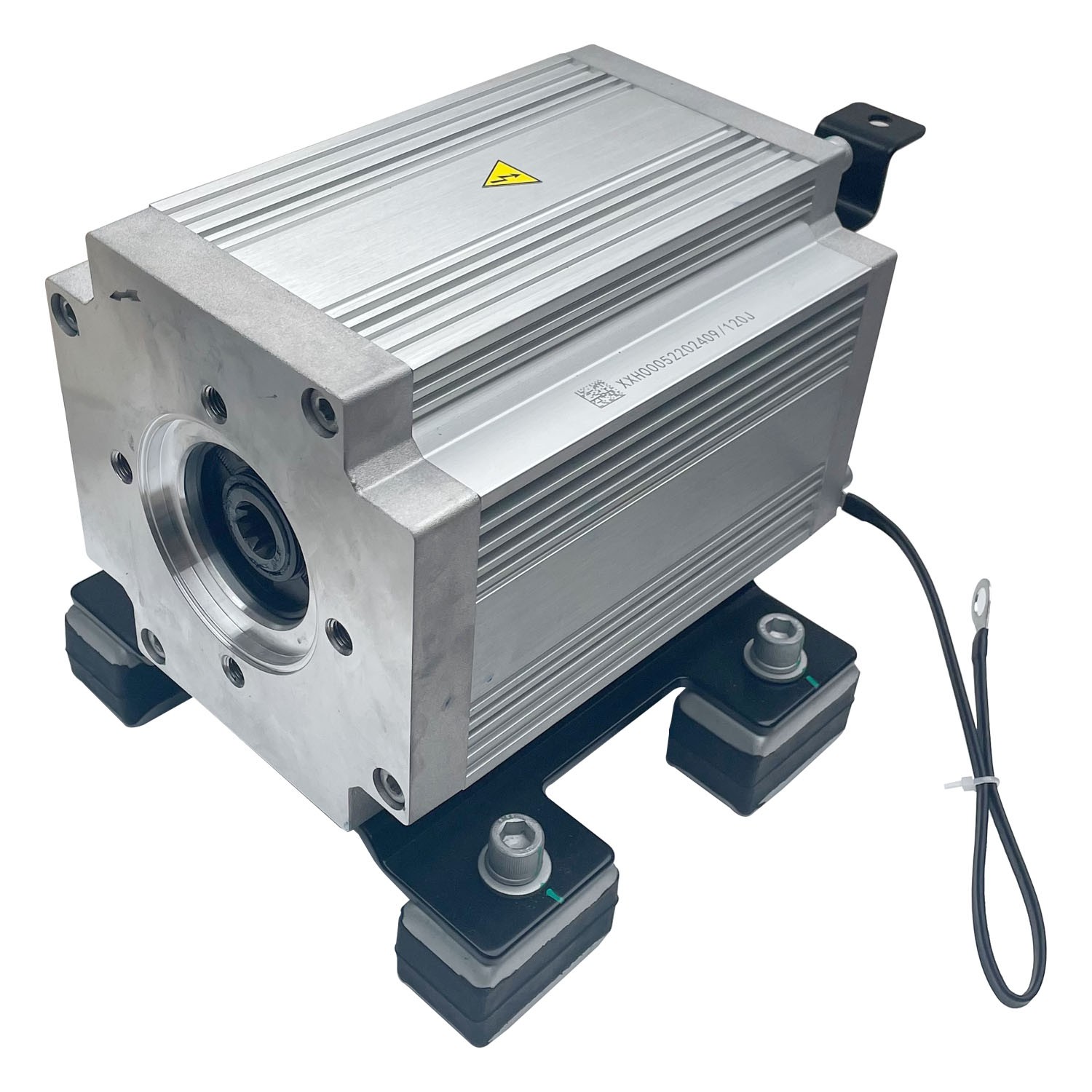

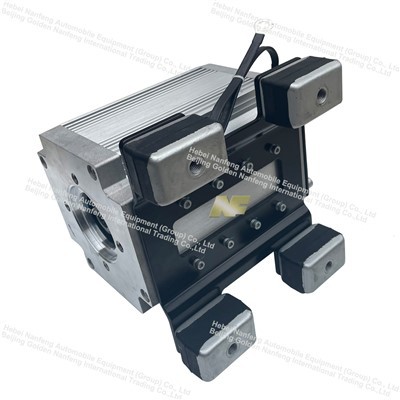

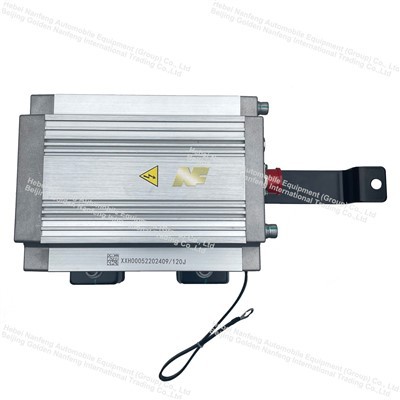

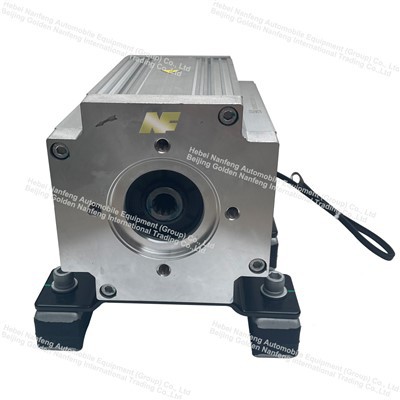

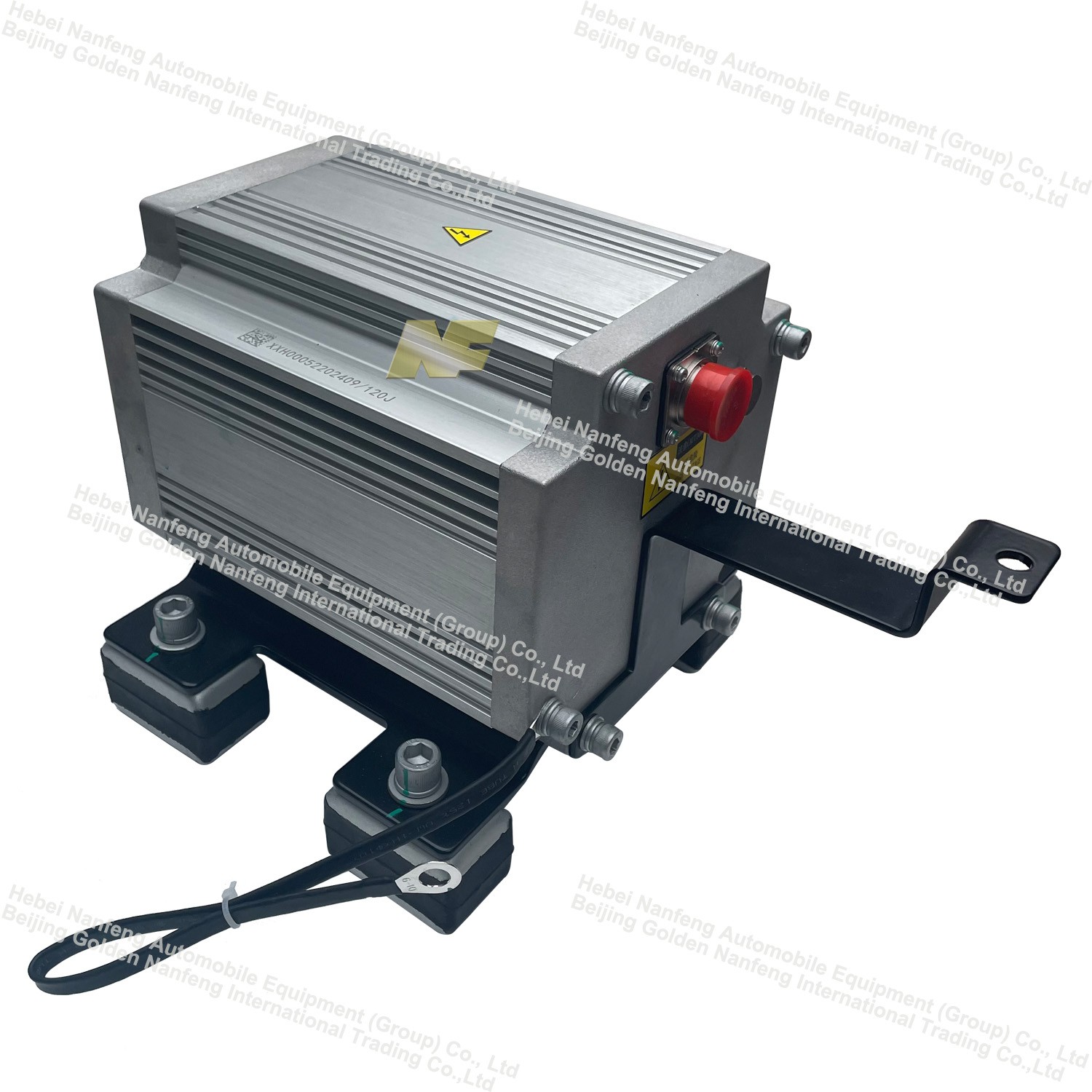

EV Truck EHPS Steering Pump
Hebei Nanfeng Group has a history of producing electric vehicle parts for over 30 years. Our company is the largest auto parts manufacturer in China. The steering motor is specially designed for electric vehicles and electric trucks and supports OEM customization.
Description
EV Truck EHPS Steering Pump
Products Description
EHPS, or Electric Hydraulic Power Steering, is an important innovation in modern automotive technology. It retains many advantages of mechanical hydraulic power steering while significantly reducing energy consumption and improving responsiveness. The core of this system is that it can adaptively adjust according to key parameters such as turning angle and vehicle speed, providing drivers with a more humane and comfortable steering experience.
|
Steering motor assembly performance parameters |
|||
|
Motor model |
EHPS-1018R3/19XB-010 |
||
|
Rated power (KW) |
3 |
Peak power (KW) |
7.5 |
|
Guangdong fixed voltage (VAC) |
237 |
Temperature control resistor type |
None |
|
Rated current (A.) |
12 |
Number of motor poles: |
8 poles (4 pairs of boards) |
|
Peak current (A) |
33 |
Stator wire resistance (0) |
0.8 (at 20℃) |
|
Rated frequency (HZ) |
66.67 |
Rated speed (r/min) |
1000 |
|
Peak torque (N.m) |
72 |
Rated torque (N.m) |
30 |
|
D-axis inductance|mH) |
6.88 |
Q-axis inductance|mH) |
10.87 |
|
Rated efficiency (%) |
≥92% |
Working day |
S2~3min |
|
Insulation level |
H level |
Cooling method: |
natural cooling |
|
Protection grade |
IP67 |
Working environment temperature: |
-40℃~+85℃ |
|
Motor type: |
SVC position sensorless permanent magnet synchronous motor |
||
Products Details
The EHPS system also adds an advanced electronic control system, including vehicle speed sensors, solenoid valves, steering ECU, and other components. This electronic control system can monitor the vehicle's operating status in real-time and accurately control the steering assist based on this information. In this way, whether driving at low or high speeds, on straight roads, or on curves, the EHPS system can provide the driver with just the right amount of steering assist, making driving easier and safer.
Products Application
