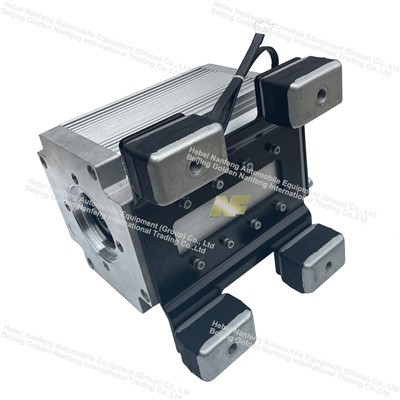

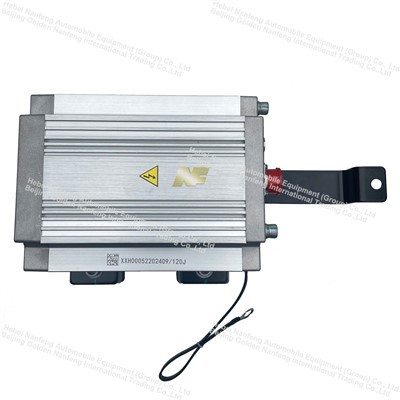

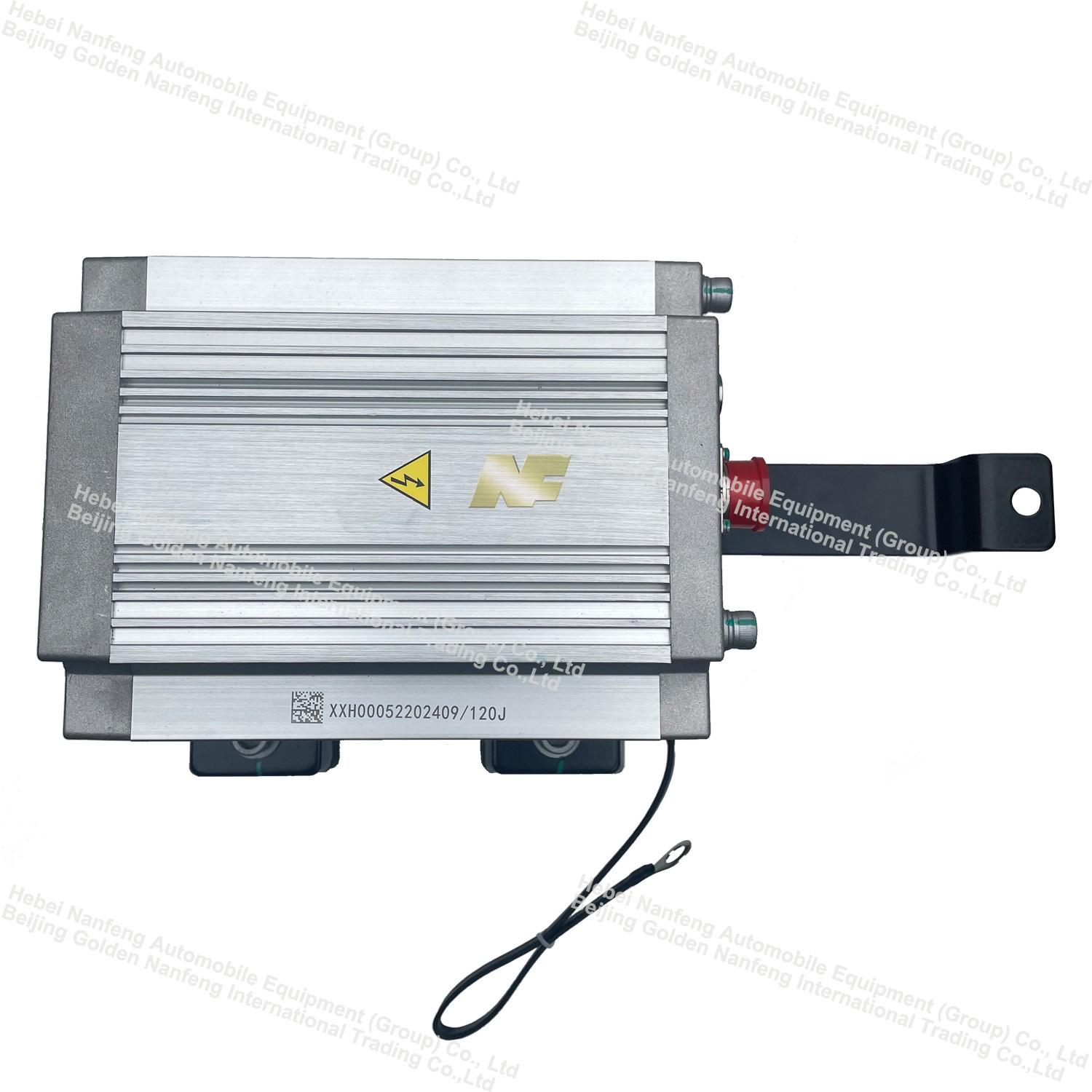

Electric Truck Steering Motor

Name: Electric Truck Steering Motor
Brand: Nanfeng
SKU: 254546847

Hebei Nanfeng Group has a history of more than 30 years in the production of electric vehicle parts. Our company is the largest auto parts manufacturer in China. The steering motor is specially designed for electric vehicles and electric trucks, and supports OEM customization.

Send Inquiry

Description

Electric Truck Steering Pump

Products Description

Product Features

1. Compact structure, small size, and light weight
2. Simple structure, high-cost performance, and long service life;
3. High power factor and good heat dissipation by natural air cooling;
4. Simple control method and strong overload capacity;
5. Protection level: IP67 and above, insulation level: H;
6. Low noise, energy saving, and environmental protection;
7. The dual-source integrated product has strong emergency response capability and no delay in switching;

Working principle of car power steering motor

The working principle of the car power steering motor is based on electromagnetic induction. When the car driver turns the steering wheel, the steering sensor transmits the steering wheel's rotation angle and direction to the vehicle computer. Based on this information, the computer calculates the auxiliary force that the steering motor needs to provide and then transmits the signal to the steering motor.

Steering motor assembly performance parameters
Motor model	EHPS-1018R3/19XB-010
Rated power (KW)	3	Peak power (KW)	7.5
Guangdong fixed voltage (VAC)	237	Temperature control resistor type	None
Rated current (A.)	12	Number of motor poles:	8 poles (4 pairs of boards)
Peak current (A)	33	Stator wire resistance (0)	0.8 (at 20℃)
Rated frequency (HZ)	66.67	Rated speed (r/min)	1000
Peak torque (N.m)	72	Rated torque (N.m)	30
D-axis inductance\|mH)	6.88	Q-axis inductance\|mH)	10.87
Rated efficiency (%)	≥92%	Working day	S2~3min
Insulation level	H level	Cooling method:	natural cooling
Protection grade	IP67	Working environment temperature:	-40℃~+85℃
Motor type:	SVC position sensorless permanent magnet synchronous motor

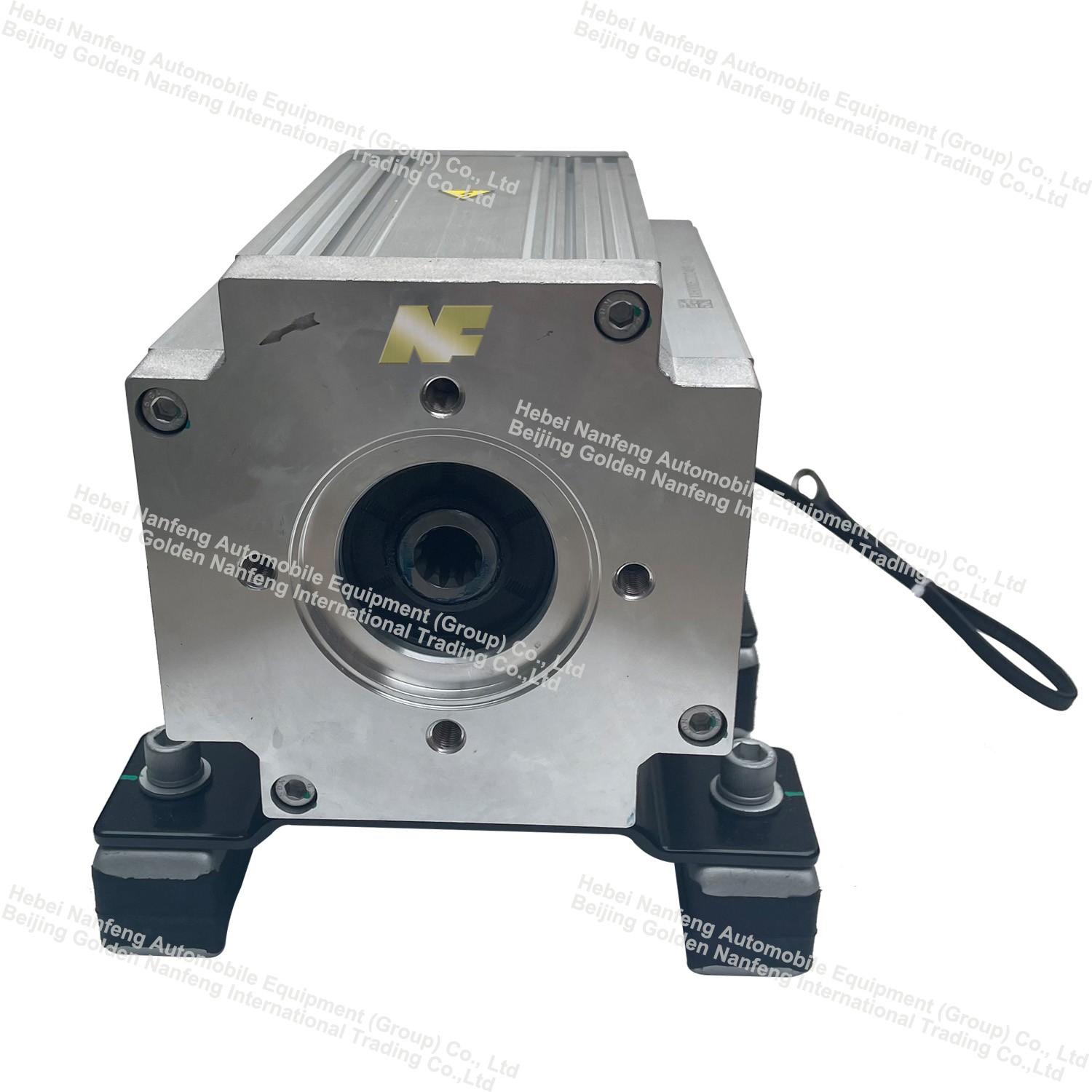

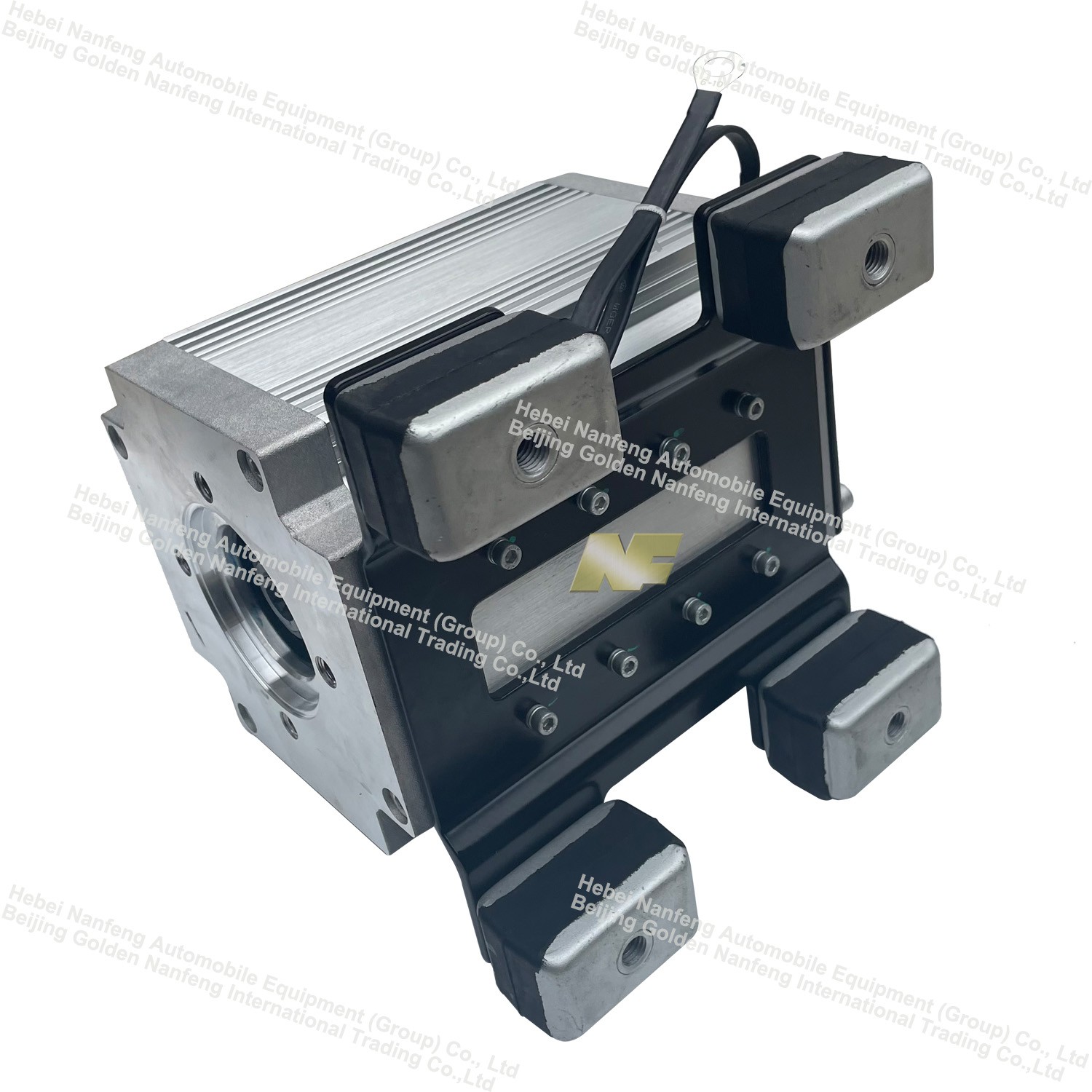

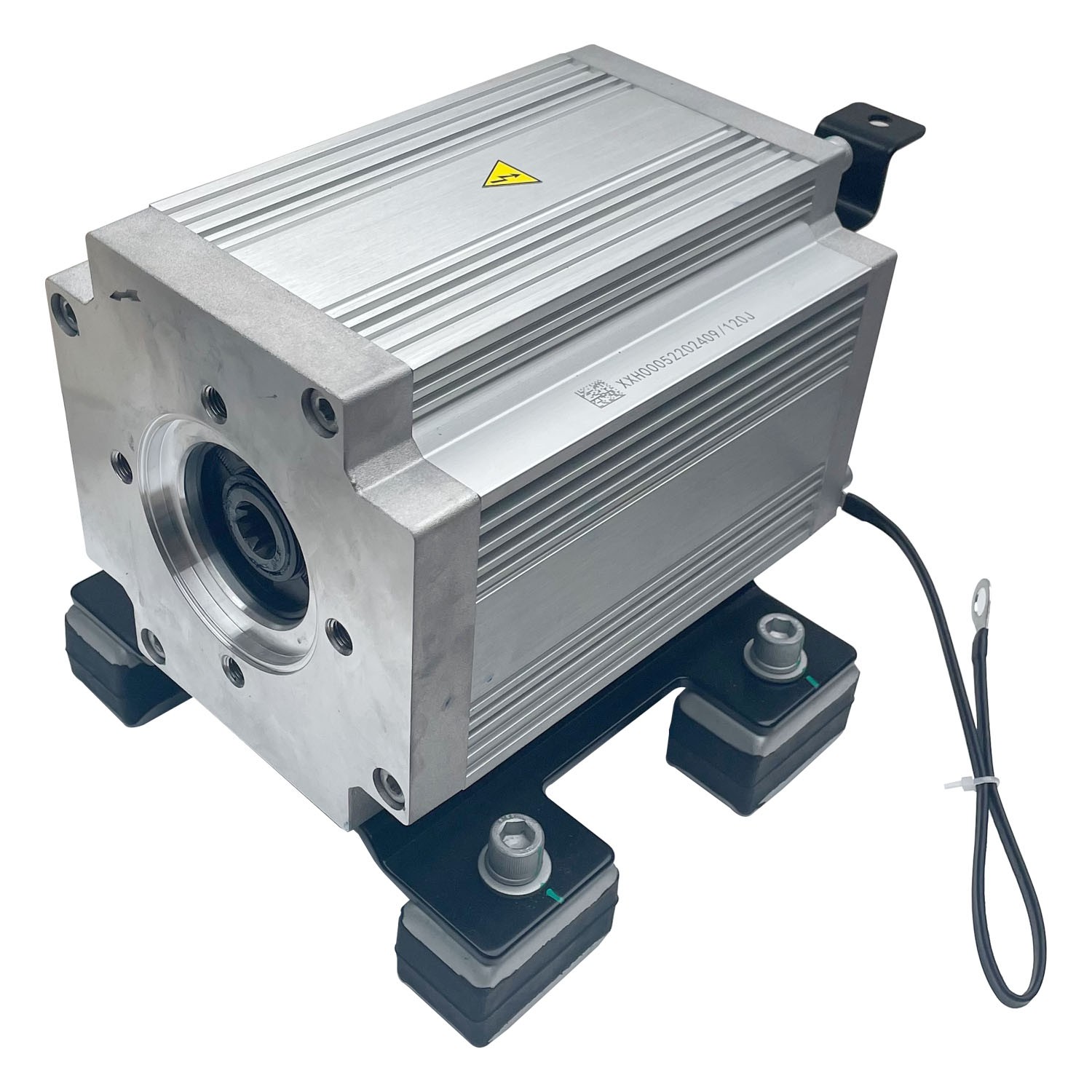

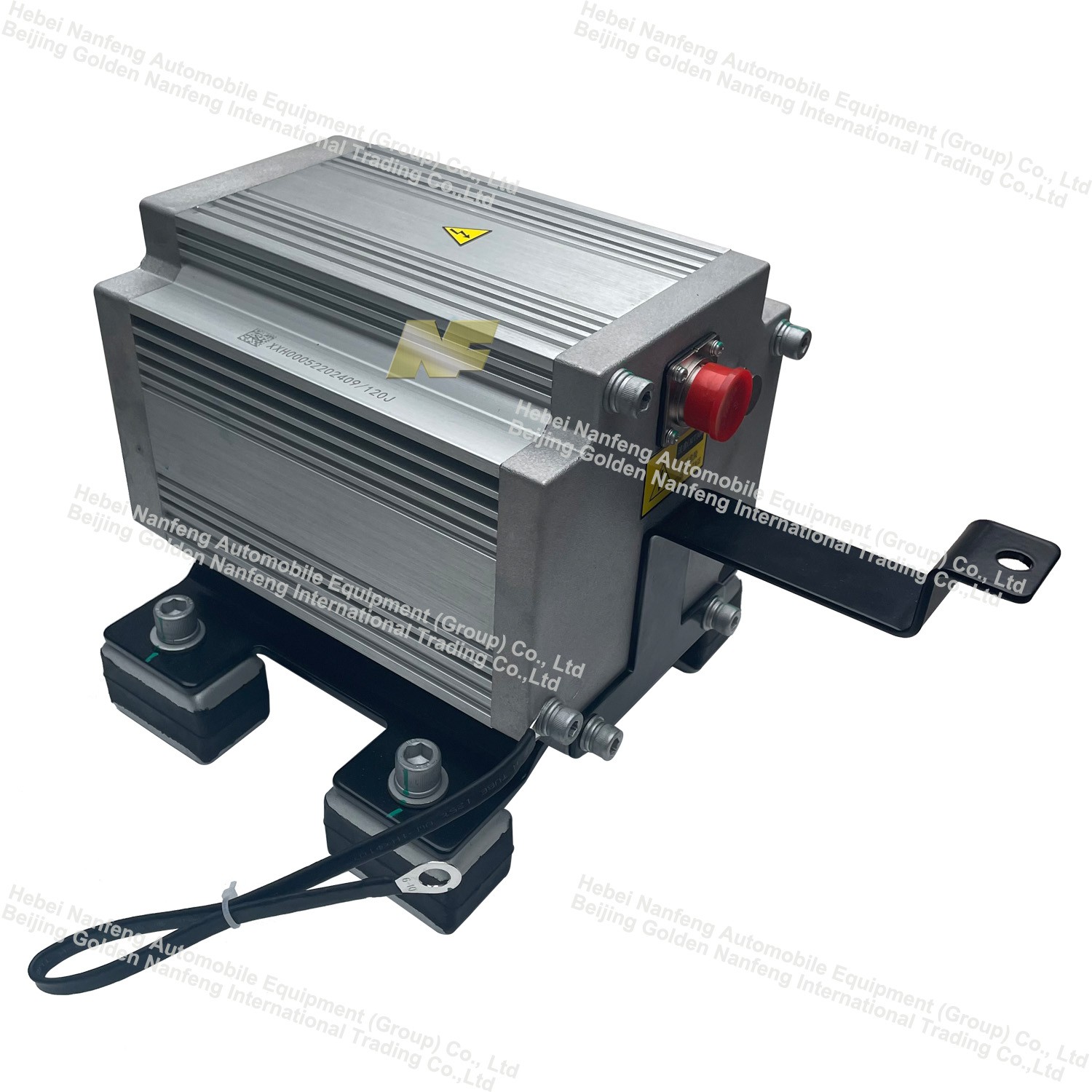

Products Details

The car power steering motor is an essential component in the car. The car power steering motor can provide auxiliary force when the driver turns the steering wheel, making the vehicle easier to turn and making driving more comfortable and safe.
