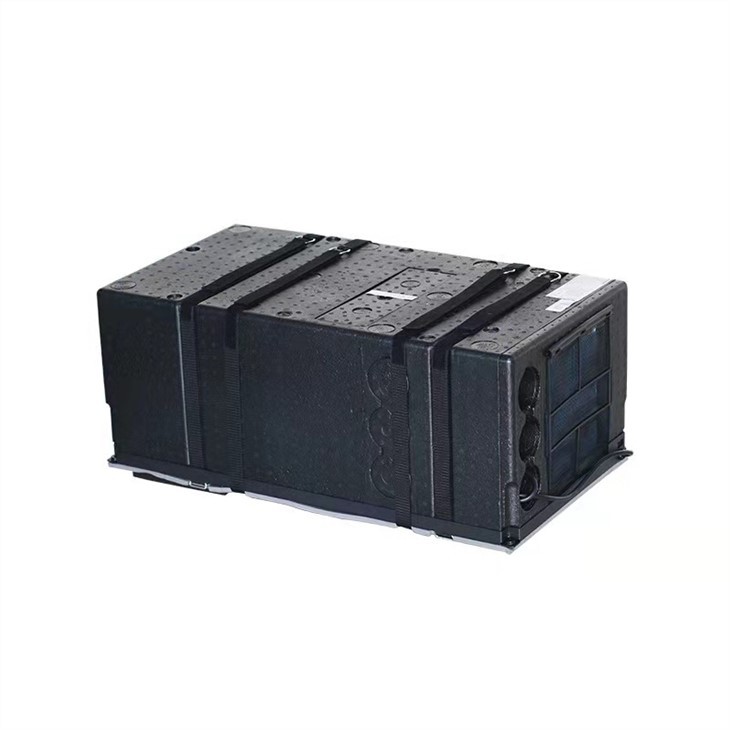

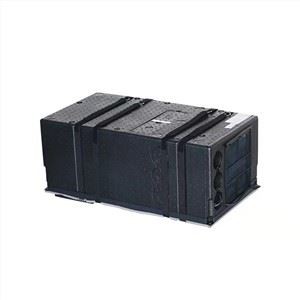

9000BTU Bottom Caravan 220v Air Conditioner

9000BTU Bottom caravan 220v air conditioner

Major Specs Rated

Unit Sizes (L*W*H): 734*398*296 mm

Net Weight: 27.8KG

Rated Cooling Capacity: 9000BTU

Rated Heat Pump Capacity: 9500BTU

Extra electric heater: 500W  (but 115V/60Hz version has no heater)

Power Supply: 220-240V/50Hz, 220V/60Hz, 115V/60Hz

Refrigerant:R410A

Compressor: vertical rotary type, Rechi or Samsung

One motor + 2 fans  system

Total frame material: one piece EPP

Metal base

Features

1. Hidden installation in the seat, bed bottom or cabinet, save space.

2. layout of pipes to achieve the effect of uniform air flow throughout the house. Air distributed equably through 3 vents all over the room, more comfortable for users

3. low noise & low vibration.

4.one-piece EPP frame  with better sound/heat/vibration insulation, and so simple for faster installation and maintaince.

Installation example of Under-Bunk Air Conditioners for RV :









If you're looking for the 9000btu bottom caravan 220v air conditioner, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
