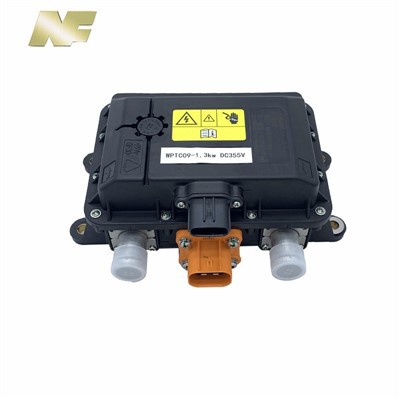

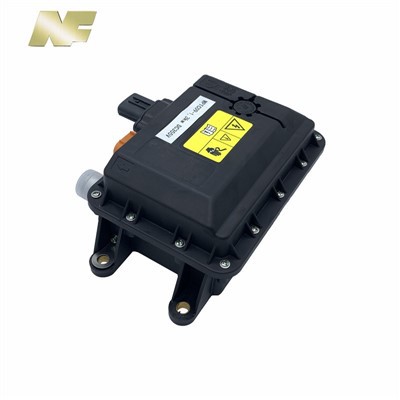

3kw High Voltage Coolant Heater For Ev Car
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.
Description

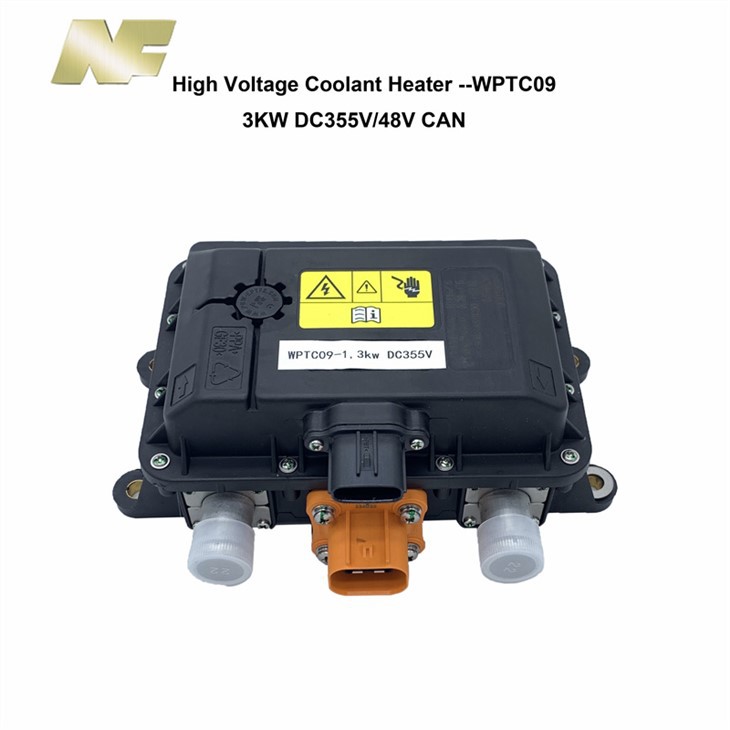

3kw High Voltage Coolant Heater for ev Car
Products Description
PTC heater: It is a resistance heating device, usually with a rated operating voltage between 350v-550v. When the PTC electric heater is powered on, the initial resistance is low, and the heating power is large at this time. After the temperature of the PTC heater rises above the Curie temperature, the resistance of the PTC increases sharply to generate heat, which is transferred to the water through the water medium in the water pump. The components transport heat.

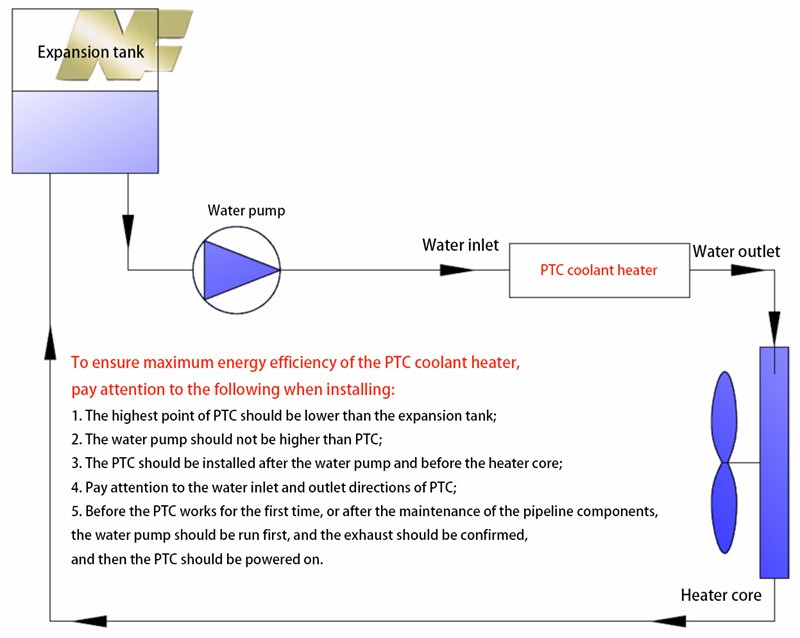

Heating system: In the heating system, if it is a hybrid vehicle or a fuel cell system vehicle, the heat produced by the engine or the fuel cell system itself can be used to meet the heat demand. The fuel cell system may require PTC heating at low temperatures. A heater is used to assist heating so that the system can heat up quickly; if it is a pure power battery vehicle, a PTC heater may be needed to meet the heat demand.
Refrigeration system: If it is a heat dissipation system, it is necessary to use a water pump to drive the heat dissipation liquid in the components to flow, take away local heat, and use a cooling fan to assist in rapid heat dissipation.
| Model | WPTC09-1 | WPTC09-2 |
| Rated voltage (V) | 355 | 48 |
| Voltage range (V) | 260-420 | 36-96 |
| Rated power (W) | 3000±10%@12/min,Tin=-20℃ | 1200±10%@10L/min,Tin=0℃ |
| Controller low voltage (V) | 9-16 | 18-32 |
| Control signal | CAN | CAN |

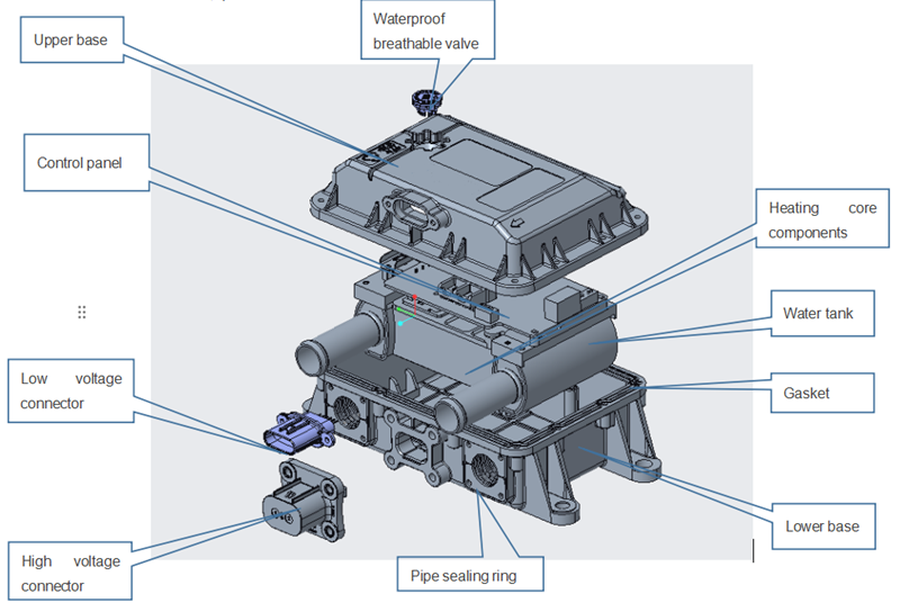

Product Structure:
The maximum starting current is less than or equal to 13A;
Other unmarked requirements shall be implemented according to Q/321191 AAM007;
The unmarked dimensional tolerance shall be implemented according to the C level in the limit deviation value of the linear dimension;
The overall weight is 2.1Kg, and the tolerance range is ±0.1kg;
CAN bus control; baud rate: 500k
The overall protection level is IP67;
The date on the production batch number is engraved according to the specific date;
Appearance: There should be no scratches, burrs, and residual oil marks on the surface;
Flame retardancy requirements: it should meet the requirements of GB8410-2006 combustion characteristics of automotive interior materials, and the combustion speed should be less than or equal to 100mm/min;
All materials meet the requirements of "Automobile Prohibited Substances" GB/T 30512.
Enter 1.5KPa air pressure, keep balance for 10s, test for 10s, and require leakage ≤5pa/s

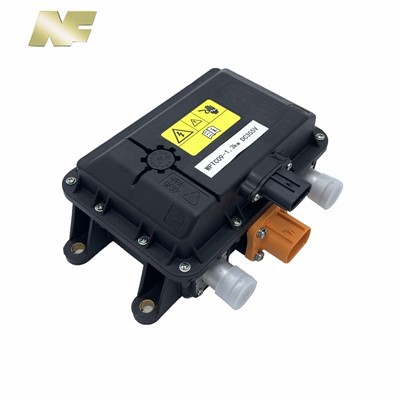

Products Details
Application
Certification
