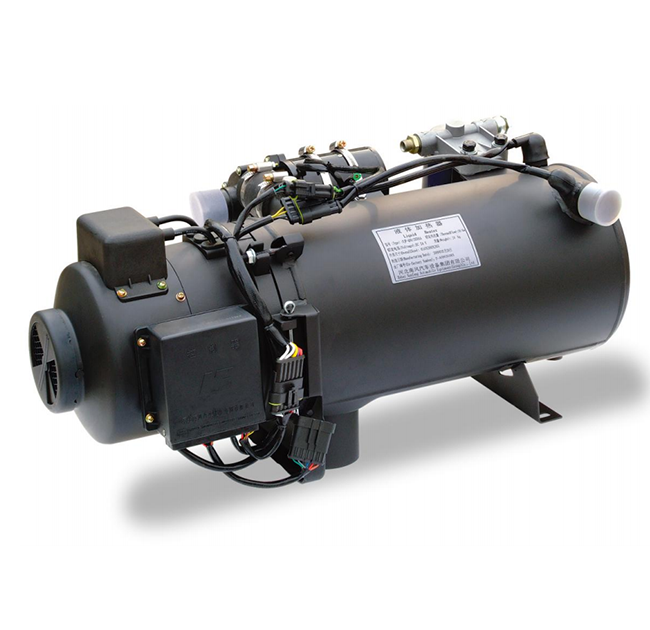

30KW Diesel Water Parking Heater

30KW Diesel Water Parking Heater



1、Product Introduction



The sprayer tank heater is a motor independent digitally controlled heater whose control box has multiple functions, such as low temperature start, high temperature stop, error stop, water temperature display, etc. It also defines many precautions. As a heater for passenger cars, it has a number of features that are superior to similar products:

1. The voltage does not affect the oil supply, and the combustion is more stable.

2. Oil return saves product energy.

3. The new heat exchanger increases thermal efficiency

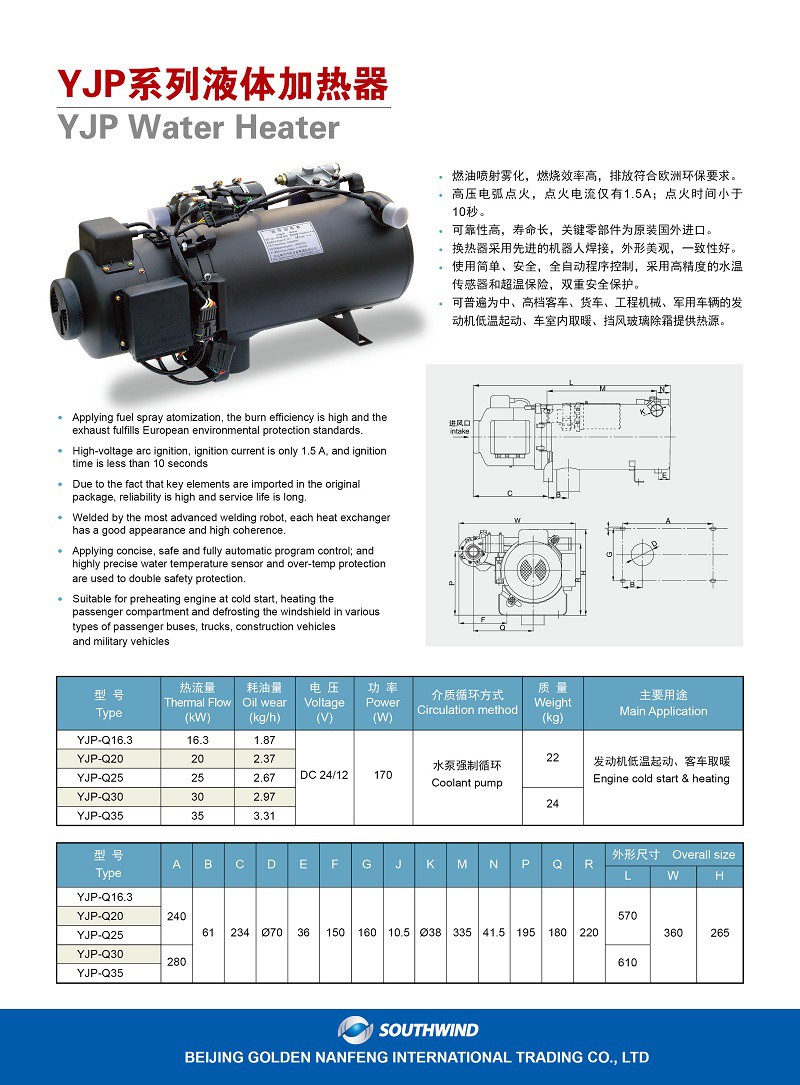

2、Product Parameter

Model	YJP-Q16.3	YJP-Q20	YJP-Q25	YJP-Q30	YJP-Q35
Heat flux(KW)	16.3	20	25	30	35
Fuel consumption(L/h)	1.87	2.37	2.67	2.97	3.31
Working voltage(V)	DC12/24V
Power consumption(W)	170
Weight(kg)	22			24
Dimensions(mm)	570×360×265			610×360×265
Usage	Motor operates in low temperature and warming, defrosting of bus
Media circling	Water pump force circle



3、System Application
Open all of water valves in heaer.
Turn on water pump , pump light shines, you can utilize remaining heat from motor water tank to warm. If heating, turn on heating switch，heater goes into normal combustion state after about 20 sec, combustion light shines. Defrosting and radiant switches can be turned on or shut down at any moment. If being in trouble,fault light shines,after shooting ,restart heater to work normally. If not using heater in summer, water-exhausted valve need be closed.
Be be prohibitted to shut down generel power in bus before combustion light quenches,or not ,it will damage heater and reduce its life!



4、Safeguard And Maintenance

1.The filter must be cleaned or replaced every 2-3 years.
2. Keep the fuel clean.
3. Make sure that the chain is not obstructed by the oil and the components are connected.
4. Make sure that the port is not blocked in the input.
5. Clean accumulating carbon timely.
6. Clean the strainer and fuel injector periodically.
7. Check the system every year before use (for oil on the floor where the fire is applied).



5、Product Details



6、FAQ

1、Q:Can l visit your factory?
A:By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
2、Q:Can I request to advance the shipment?
A:It should be depends on whether there is sufficient inventory in our warehouse.
3、Q:How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality. If you need the samples, we would like to send samples.
4、Q:Where is your factory located?
A:It lies in the industrial area of Wumaying of Nanpi county of province Hebei, covers an area of 80,000㎡.
5、Q:About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A:Our warranty period is one year, and our service staff will do their best to solve any problems you have.
