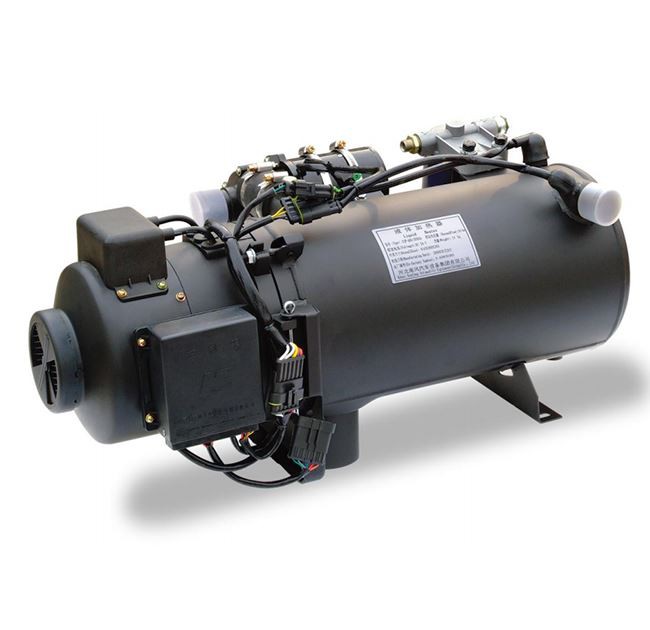

Diesel Liquid Bus Water Parking Heater
Hebei Nanfeng Automobile Equipment (Group) Co.,Ltd, which is the only designated parking heater supplier for the Chinese military vehicle. We have been manufacturing and selling heater for over 30 years. Our products are not only popular in China, but also exported to other countries, like South Korea, Russia, Ukraine, and so on.
Description
Diesel liquid bus water parking heater
1、Product Introduction
Jet liquid heater is a digital-control warming equipment independent of motor, its controll part has many functions: open at low temperature, stop at high temperature,alarm and stop when in trouble, show water temperature. It is also set multiple protection measure. As bus warm equipment , it has lots of performance super to congener products:
1 supplying oil is not affected by voltage to make combustion more steady.
2 back-oil makes products ecnomizing energy
3 newly heat exchange device can raise heat efficiency
4 using hi-voltage oil fog and hi-voltage electrode igniter,opening and closing do not cause pollution , jet liquid heater can apply to pre-heat water-cool motor in low temperature,it can keep refrigerant between 65ºC and 80ºC automotically. Using it to pre-heat motor in winter will reduce motor damage ,decrease oil-exhausting and prolong life of motor.
2、Product Parameter
| Model | YJP-Q16.3 | YJP-Q20 | YJP-Q25 | YJP-Q30 | YJP-Q35 |
| Heat flux(KW) | 16.3 | 20 | 25 | 30 | 35 |
| Fuel consumption(L/h) | 1.87 | 2.37 | 2.67 | 2.97 | 3.31 |
| Working voltage(V) | DC12/24V | ||||
| Power consumption(W) | 170 | ||||
| Weight(kg) | 22 | 24 | |||
| Dimensions(mm) | 570×360×265 | 610×360×265 | |||
| Usage | Motor operates in low temperature and warming, defrosting of bus | ||||
| Media circling | Water pump force circle | ||||

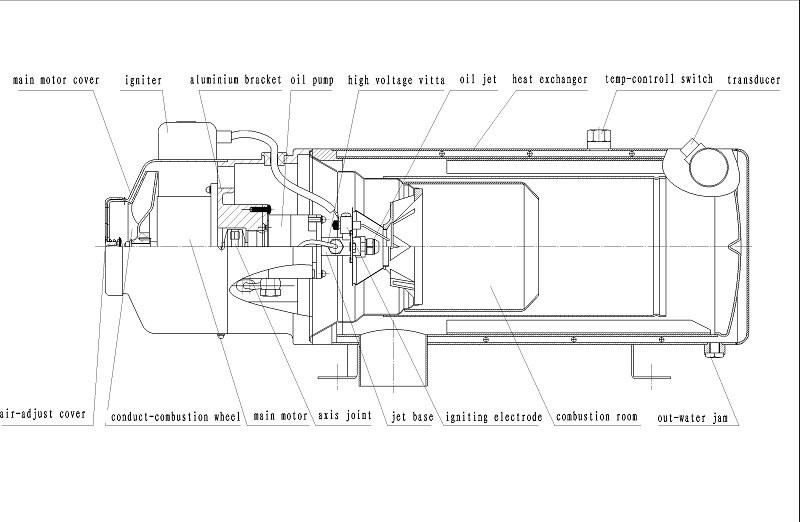

3、Detailed Image
Under the operation of motor, oil is taken to jet by pump to produce oil fog under high speed air blow with motor circling. oil fog is burning under high voltage discharge of igniting electrode, its heat is sent to circling liquid in heat exchanger by conductive slice, under the operating of pump, liquid is taken to radiant equipment to make vehicle warm and defrost.
4、Advantages
1. Applying fuel spray atomization, the burn efficiency is high and the exhaust fulfills European environmental protection standards.
2. High-voltage arc ignition, ignition current is only 1.5 A, and ignition time is less than 10 seconds Due to the fact that key elements are imported in the original package, reliability is high and service life is long.
3. Welded by the most advanced welding robot, each heat exchanger has a good appearance and high coherence.
4. Applying concise, safe and fully automatic program control; and highly precise water temperature sensor and over-temp protection are used to double safety protection.
5. Suitable for preheating engine at cold start, heating the passenger compartment and defrosting the windshield in various types of passenger buses, trucks, construction vehicles and military vehicles.
5、Attention
1. Fuel is diesel, kerosene is not fit, No petrol!
2. In winter ,when temperature is below 0ºC,add antifreeze into heater,if adding water, heater should be empty everyday to prevent freezing.
3. Rated voltage: DC24V
4. Being be prohibitted from shutting down general power before combustion light quenches.
5. Being prohibitted from changing any parts ,or not ,it will not at the range of maintenance.
6. Usage enviroment:
6-1 usage temperature:-40ºC~+50ºC
6-2 storage temperature:-50ºC~+80ºC
6-3 altitude ≤3000M (>3000M special order)
