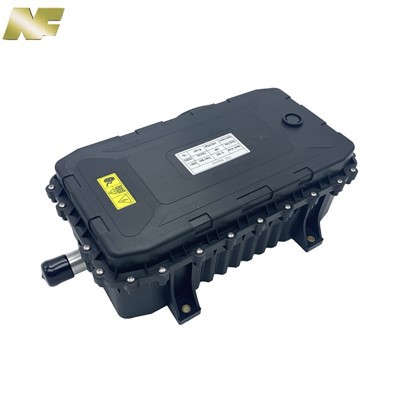

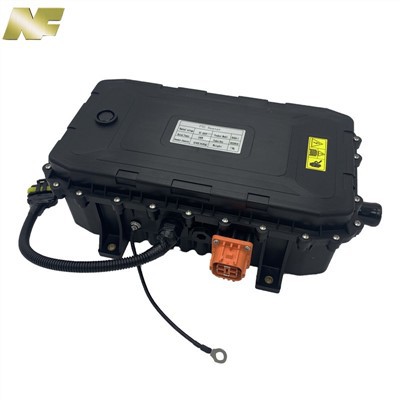

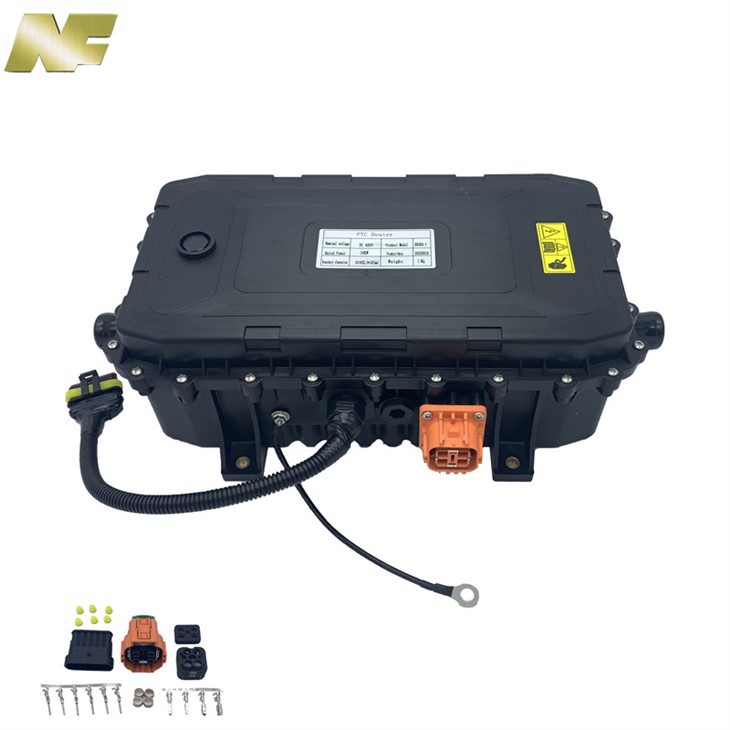

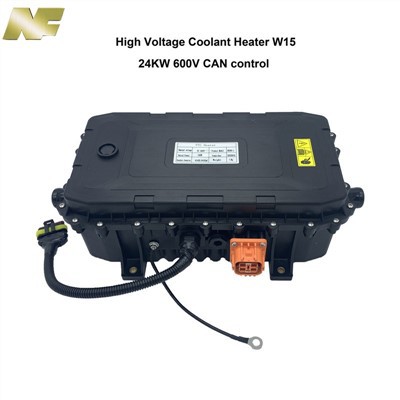

24KW 500v EV Coolant Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China. Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.
Description
24KW 500V EV Coolant Heater
our Product
PTC HEATER
Working Principle
Mains Powered: Electric heaters draw their power from a power system connected to the vehicle's battery.
Electrothermal effect: The high resistance material in the electric heating element causes an electrothermal effect to occur when current passes through, generating heat.
Heat transfer to the interior of the vehicle: The generated heat is transferred to the interior of the vehicle through conduction or convection, including the air inside the vehicle, seats, steering wheel, etc.
Increase the temperature inside the car: The heated air spreads throughout the car through the ventilation system, increasing the temperature inside the car and providing a comfortable driving experience for the driver and passengers.
HVAC HEATER
Application Areas
Winter preheating: Electric heaters are often used to preheat the vehicle in cold weather to improve battery performance and interior temperature.
Cabin heating: In electric vehicles, electric heaters are used to provide a comfortable cabin temperature, replacing traditional engine heating systems.
Battery temperature control: Some electric vehicles use electric heaters to maintain the appropriate operating temperature of the battery in cold weather to improve battery life and performance.
Warm seats and steering wheel: Electric heaters can also be used to provide heating functions for seats and steering wheels to enhance the driving experience.
Basic feature
| Low voltage range | 9-32V |
| Rated power | 24KW |
| High voltage range | 400-750V |
| Insulation resistance | voltage 500VDC,test for 60s,insulation resistance 100MQ |
| Nsulation withstand voltage |
voltage 1220VAC,50Hz,no damage to the insulation layerafter testing,for 60s,leakage current 10mA |
| Working temperature | -40 ~+110℃ |
| Storage temperature | -40 ~+120℃ |
| Coolant temperature | 40 ~+85℃ |
| Product weight | 7.5KG±5% |

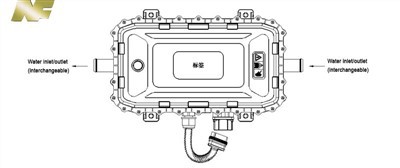

Detail image
who choose us?
Hebei Nanfeng Automobile Equipment Group Co., Ltd. is a high-tech group company specialising in the production of automobile heating systems, electronic water pumps, hardware stamping parts, electronic accessories and other equipment and related parts. NF Group has five factories and one export foreign trade company (Beijing Jinnanfeng International Trade Co., Ltd., located in Beijing). For more than thirty years, NF Group has continuously introduced international advanced technology and equipment. The products comply with European safety and environmental protection standards, and have formed large-scale and series production. NF has been supporting a number of well-known domestic automobile factories. At present, the products have been exported to overseas and international markets.
one-stop solution
professional team
high quality
competitive advantage
high quality
EMC laboratory
High-tech equipment
We have intelligent online detection production line.
International markets
At present, the products have been exported to Asia, Europe, and America.
Our Certificate
IATF 16949
CE Certificate
CE Certificate
Our products have passed the CE certification, which represents that our products comply with the relevant standards of EU safety, health, environmental protection, and consumer protection.For electric vehicle manufacturers and accessory suppliers, choosing CE certified PTC heaters can quickly enter the EU market and expand sales channels.
