12KW Electric Bus Battery Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.
Description
12KW Electric Bus Battery Heater
Products Description
PTC heaters play an important role in new energy vehicles. Their working principle is to generate heat through resistance after power is turned on and cooperate with the blower to make air flow through the element to achieve the heating effect.
DC PTC heaters, ceramic-based heaters, are widely used in electric vehicles. PTC thermistors are favored for their constant-temperature heating, long life, energy savings, safety without open flames, and controllable heat generation.
Products parameter
| Model | NFL5825 |
| Rated power | 12KW |
| Rated voltage | DC800V |
| High voltage range | 550~850V |
| Low voltage range | 15~32V |
| Inrush current | ≤30A |
| Power output mode | CAN or automatic temperature control |
| Relative humidity | 5% - 95% |
| Protection level | IP67 |
| Weight | 4kg |

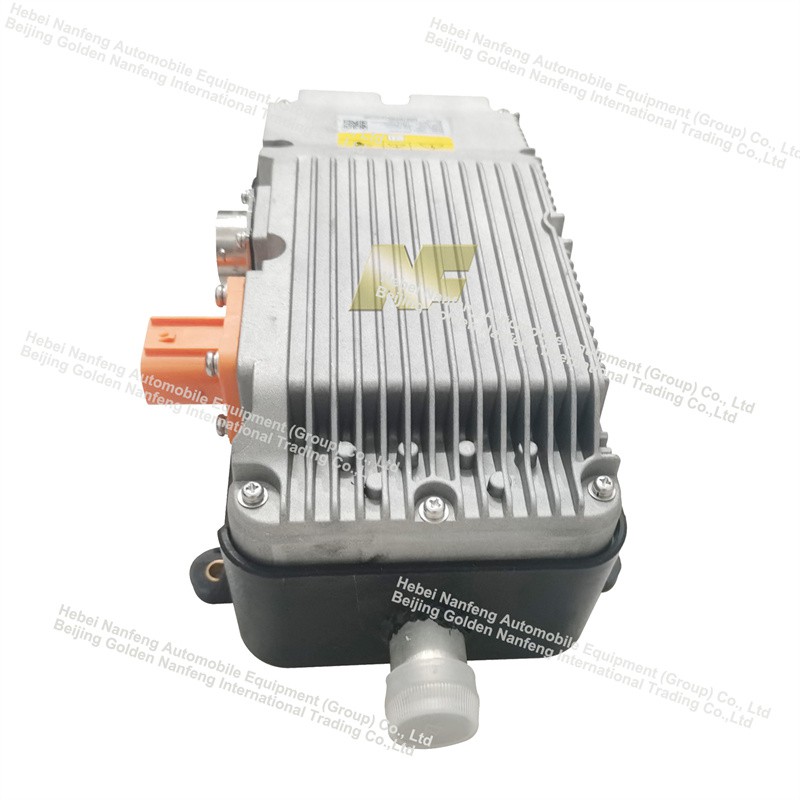

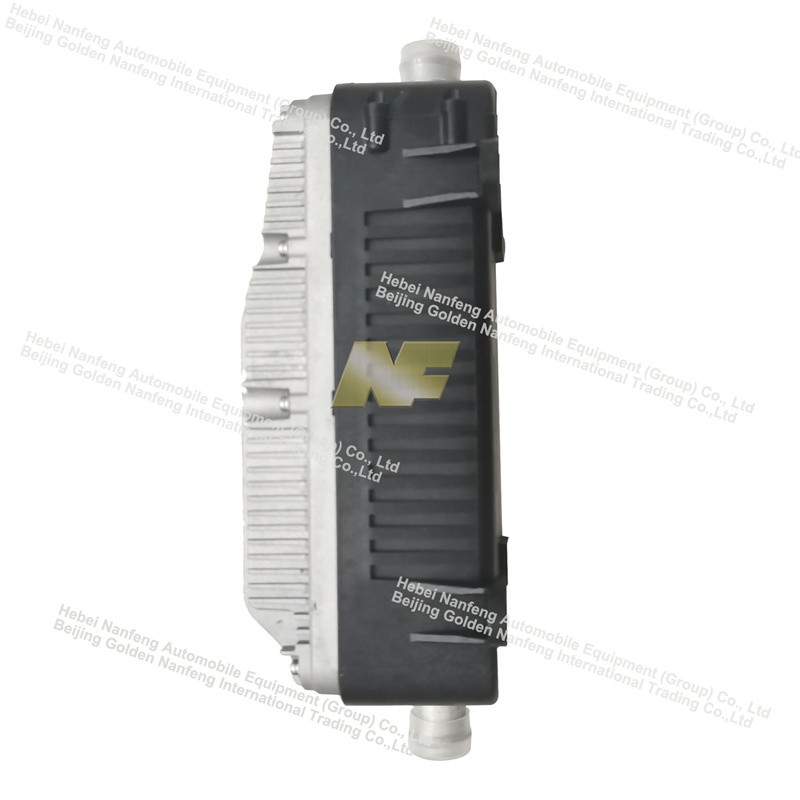

Products Details

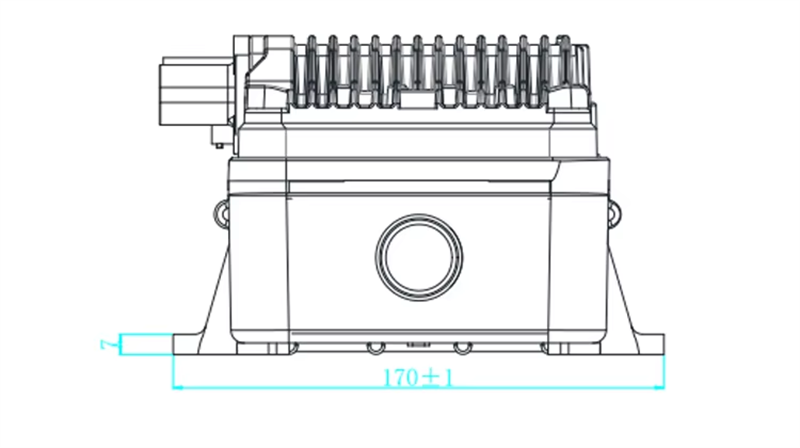

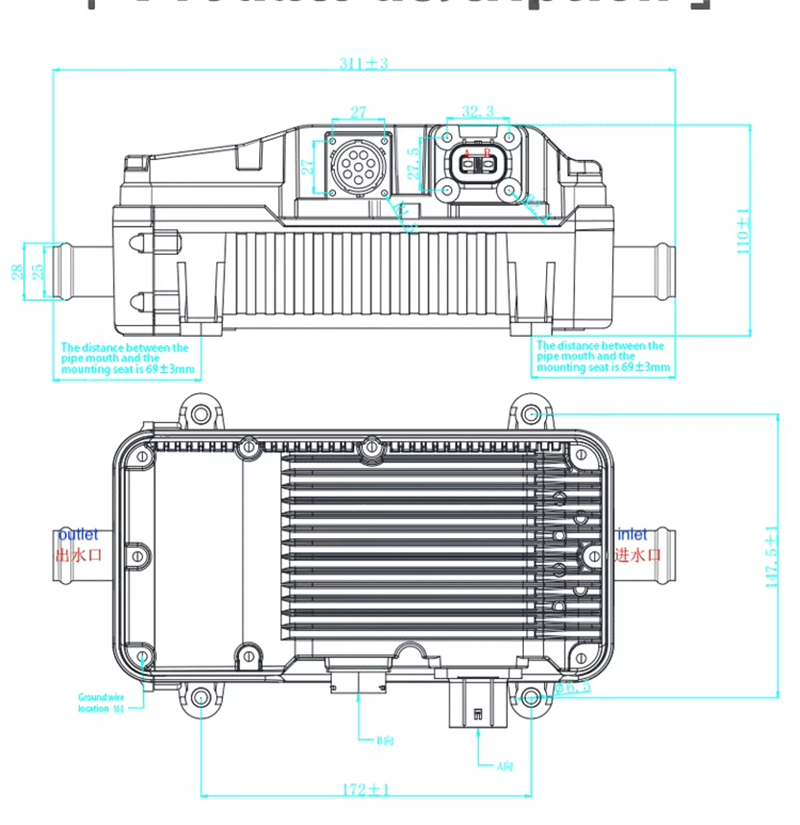

Products Size
By 2030, electric vehicles (EVs) will constitute 64% of global new car sales. As the greener and more cost-efficient alternative to fossil-fueled cars, EVs will soon be a fixture of everyday life. Therefore, our main new products in recent years have been electric vehicle parts, especially High-Voltage coolant heaters. Please check our catalog in the attachment. From 2.6kw to 30kw, our heaters can meet all your requirements.
Our high-voltage coolant heaters can be used for improving battery energy performance in EVs and HEVs. In addition, it allows comfortable cabin temperatures to be generated quickly, enabling a better driving and passenger experience.
We are now jointly developing with Bosch, and our product quality and production line are highly recognized by Bosch. We are your best choice in China.
Products Application
Our Company
