Self-generating Portable Air Diesel Heater

Self-generating Portable Air Diesel Heater









Model	NFGMH-04D
Heating medium	Air
Heat Level	1-9
Heat rating	1KW-4KW
Fuel consumption	0.1L/H - 0.48L/H
Rated power consumption	<40W
Rated voltage:(Max)	16.8V
Noise	30 to 70dB
Ambient temperature Heater Fuel pump	Working	No Working
	-40° to +40°C	-40° to +85°C
	-40° to +50°C	-40° to +125°C
Air inlet temperature	Max +28°
Fuel	Diesel

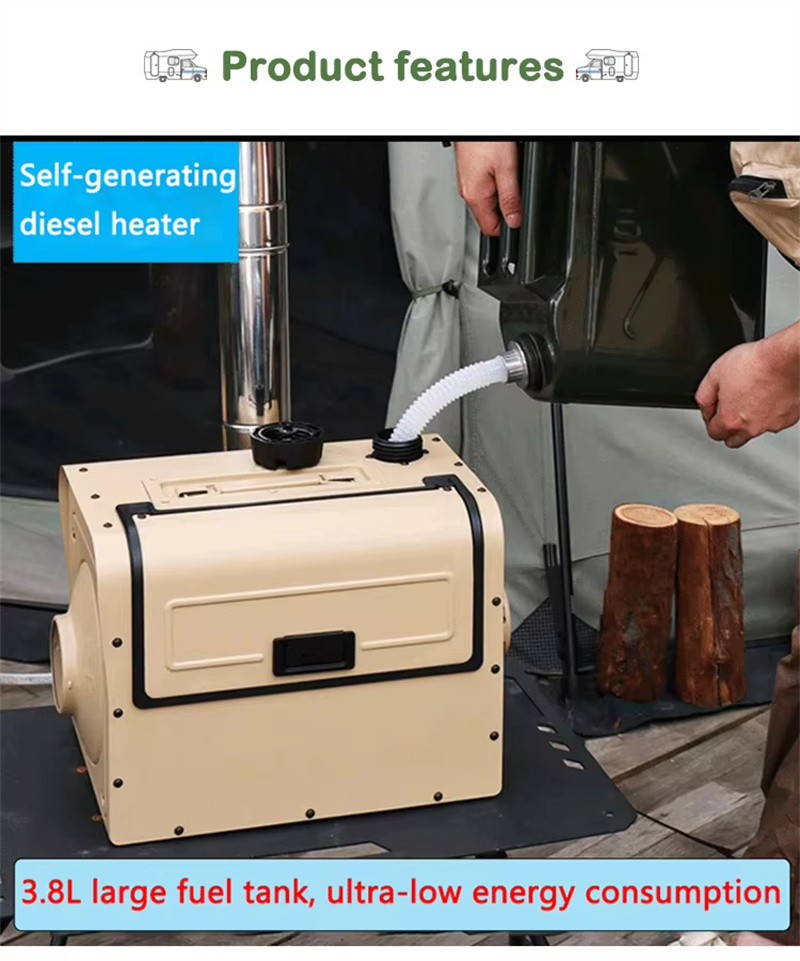

Internal fuel tank capacity	3.7L(1.2Gallon)
Host weight	13kg

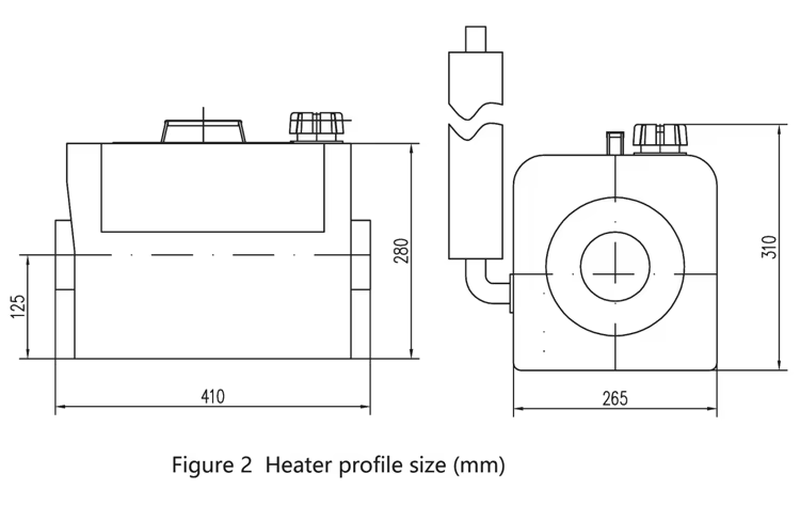

The external dimension of the host	410*265*280mm













Precautions for use:

(a) Make sure the battery has enough power to ensure the heater starts properly before use. When not in use for a long time, take out the battery and charge it regularly.

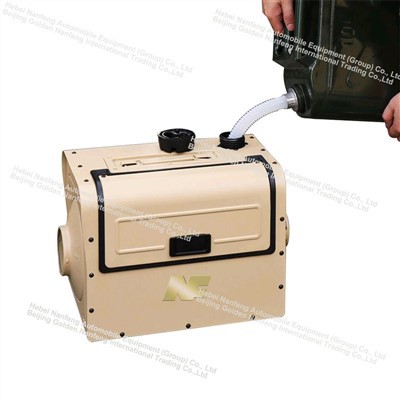

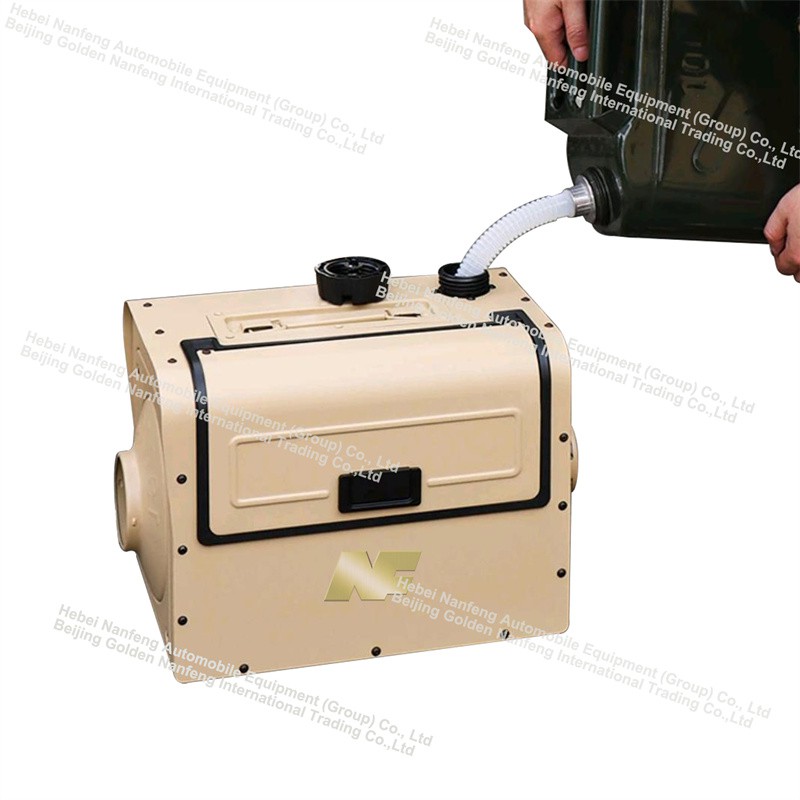

(b) Check the fuel tank to make sure the heater is running continuously. This product only uses diesel oil and should ensure the quality of diesel oil.
(c) Before starting the heater, the air valve on the fuel tank lid must be opened to prevent thefuel tank from being vacuumed.

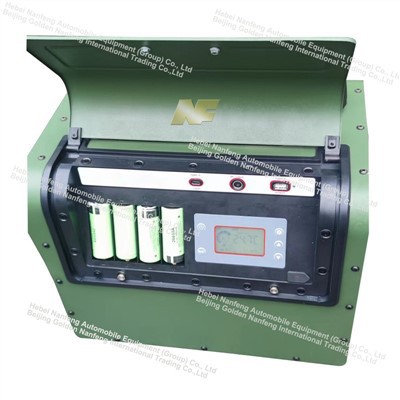

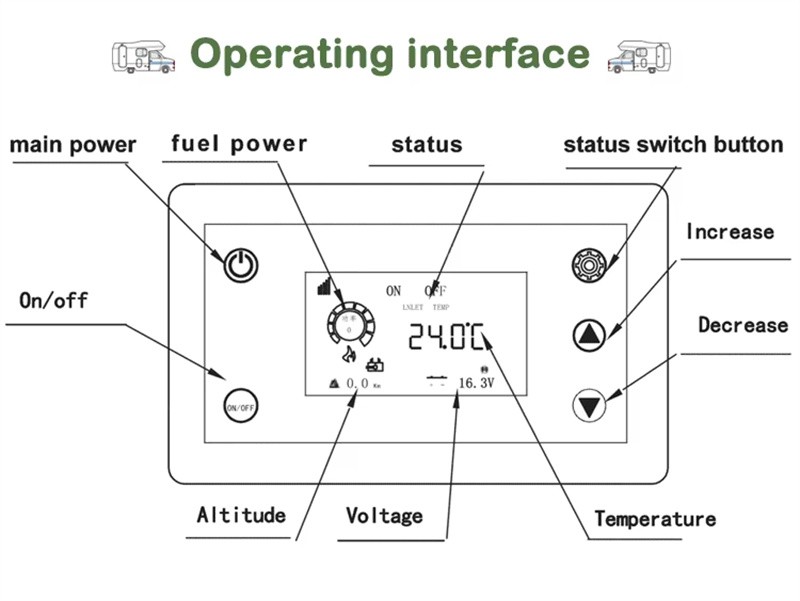

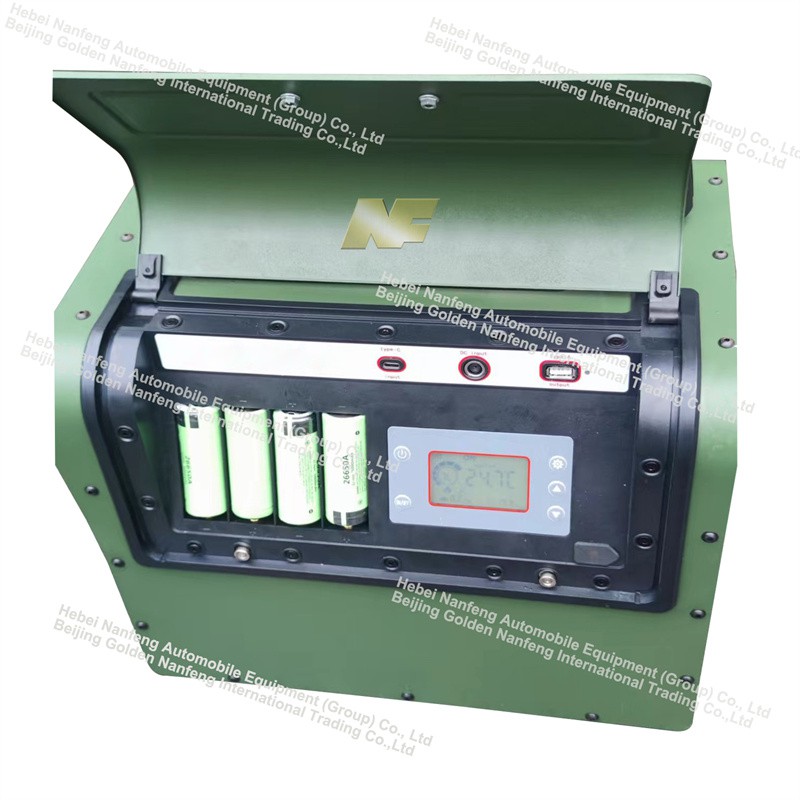

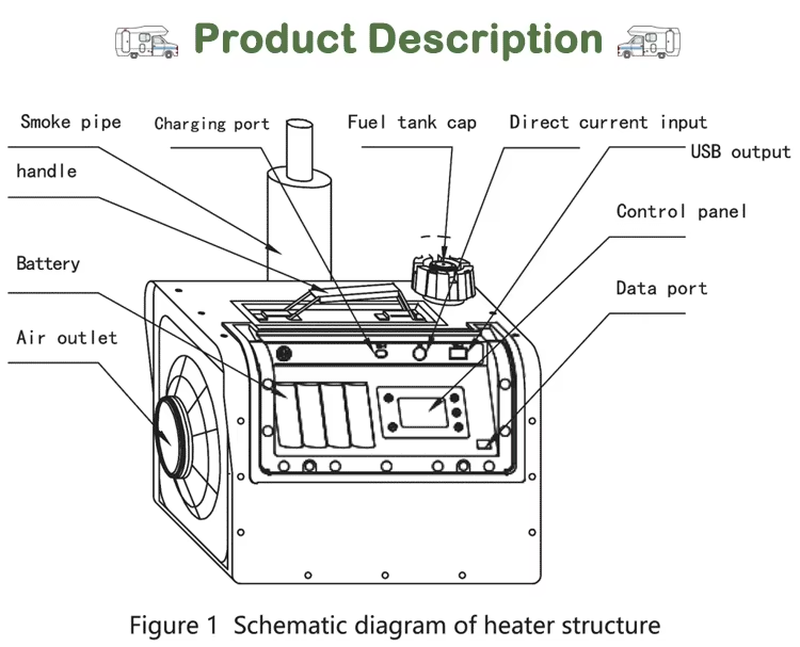

This machine can generate electricity only after the machine is fired and runs stably, so it is necessary to install batteries when using the machine. After pressing the power button to switch on the power, observe whether the battery voltage is greater than 15.0v. if the voltage is lower than 15.0V, the battery can be charged to 15.0V-16.8V by inserting the charger into the charging port. if it is not convenient to use the charger to charge, you can use the cigarette lighter cable to plug into the DC input interface, and the cigarette lighter end can use the vehicle cigarette lighter or the outdoor power cigarette lighter port to power the machine before it can be turned on. After the machine is ignited and runs stably for at least 5 minutes, the cigarette lighter cable can be unplugged, and the machine can supply itself with electricity to achieve use without external power.







Q1. Who are we?
A: We are a group company with 5 factories. We are the largest manufacturer of automotive heating and cooling systems in China and a designated supplier for Chinese military vehicles. We have been supporting many well-known domestic automobile factories and our products are exported to overseas and international markets.

Q2. What are your terms of payment?
A: T/T 100% in advance.

Q3. What can you buy from us?
A: Parking air heater, parking water heater, parking air conditioner, caravan air and water heater, electronic water pump, electric heater, high voltage coolant heater, other auto parts and accessories, etc.

Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you havea  legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
