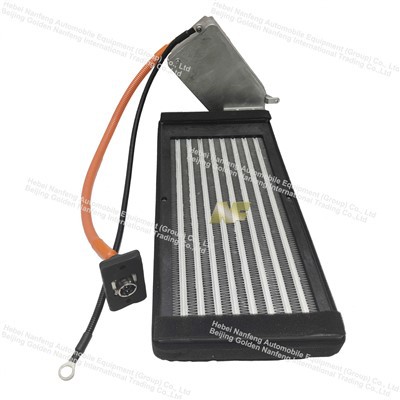

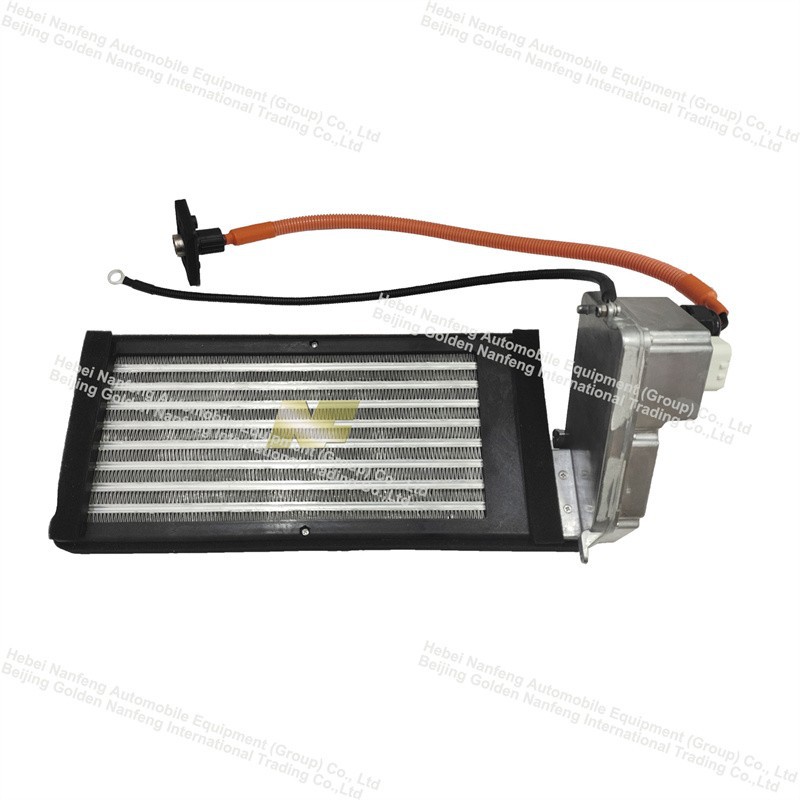

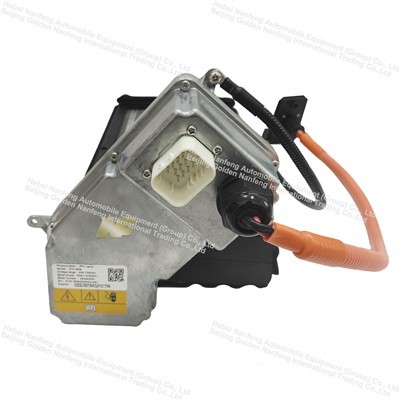

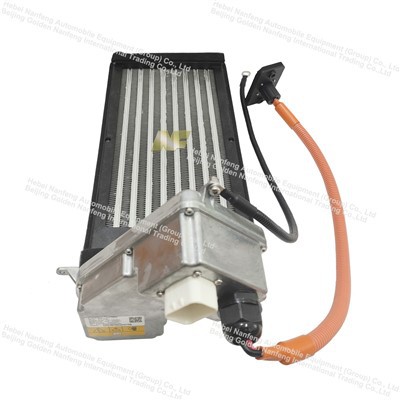

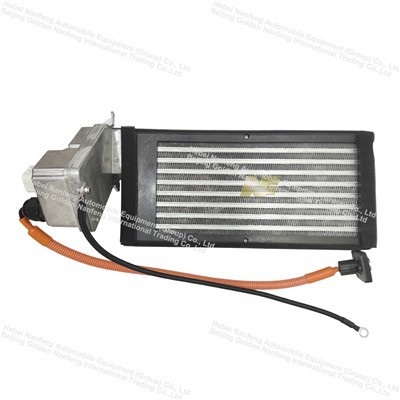

PTC Air Heater With CAN

Name: PTC Air Heater With CAN
Brand: Nanfeng
SKU: 262742460

NF PTC Ceramic Air Heater is suitable for hybrid battery vehicles and is mainly used as the main heat source for temperature regulation in the car. The heating effect of the product is faster than that of the internal combustion engine. During the heating process, the electrical energy is effectively converted into heat energy by the PTC component.

Send Inquiry

Description

PTC air heater with CAN

Products Description

product key technologies

PTC air heater Structure and workflow

Structure: It consists of multiple groups of PTC heating sheets, aluminum heat sink fins, fans and shells.

Workflow:
1.After power is turned on, the PTC heating sheet heats up quickly;
2.The fan blows cold air to the heating sheet and fins for heat exchange;
3.The heated air is sent into the car, and the PTC automatically adjusts the power according to the temperature.

PTC heater2

High Rated voltage	575V
Power	5KW
High voltage range	450-756V
Low Rated voltage	24V
Insulation Withstand	2500VDC/10mA/60s
Communication method	CAN

Why Choose an Electric Air Heater?

Electric air heaters offer several advantages over traditional heating methods, such as gas or liquid fuel heaters. Their efficiency, safety, and ease of integration make them a top choice in a wide range of applications. Here are the top reasons to choose electric air heaters:

Energy efficiency:
Electric air heaters convert electrical energy directly into heat, minimizing energy losses.
Advanced technologies such as PTC (positive temperature coefficient) heating elements allow for self-regulating and adaptive heating, reducing unnecessary power consumption.

Instant and uniform heating:
Unlike combustion-based heaters, electric air heaters reach optimal temperatures quickly, making them ideal for applications that require fast heating.
They evenly distribute heat with integrated fans or heat exchangers, ensuring consistent temperature control.

Versatile control options:
Can be integrated with smart thermostats, sensors, and variable power controllers to optimize heating performance based on real-time conditions.
Some models use PWM (pulse width modulation) control or adjustable temperature regulation, making them highly adaptable.

Key Advantages

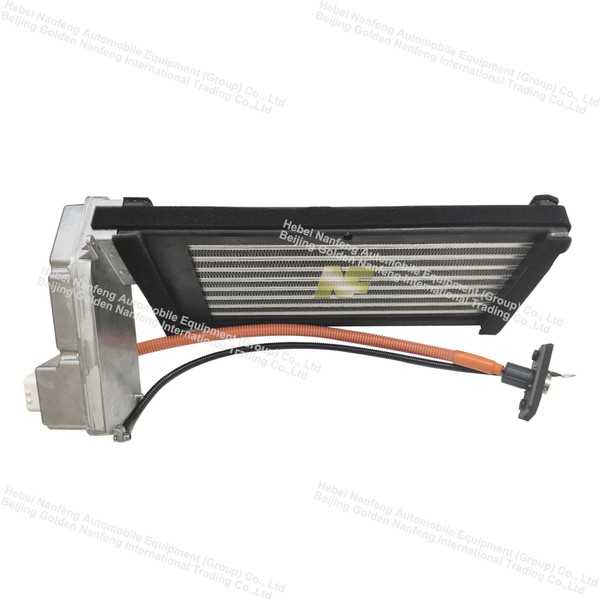

PTC heater4

Advantages of PTC air heaters

High safety: Self-limiting temperature characteristics avoid overheating, no open flame or fuse risk, suitable for the high-voltage environment of electric vehicles.

Energy efficiency optimization: Full power heating at low temperature, automatic power reduction at high temperature, reducing energy waste (saving about 15-30% energy compared to traditional resistance wire).

Compact structure: Its modular design and small size make it suitable for limited space in electric vehicles (such as integrated into an air conditioning duct).

Long life and maintenance-free: PTC ceramics have no oxidation problems, and the life span can reach more than 10 years, without the need to replace heating elements.

Quick response: Hot air can be discharged in 3-5 seconds during a cold start, improving driving comfort in winter.
