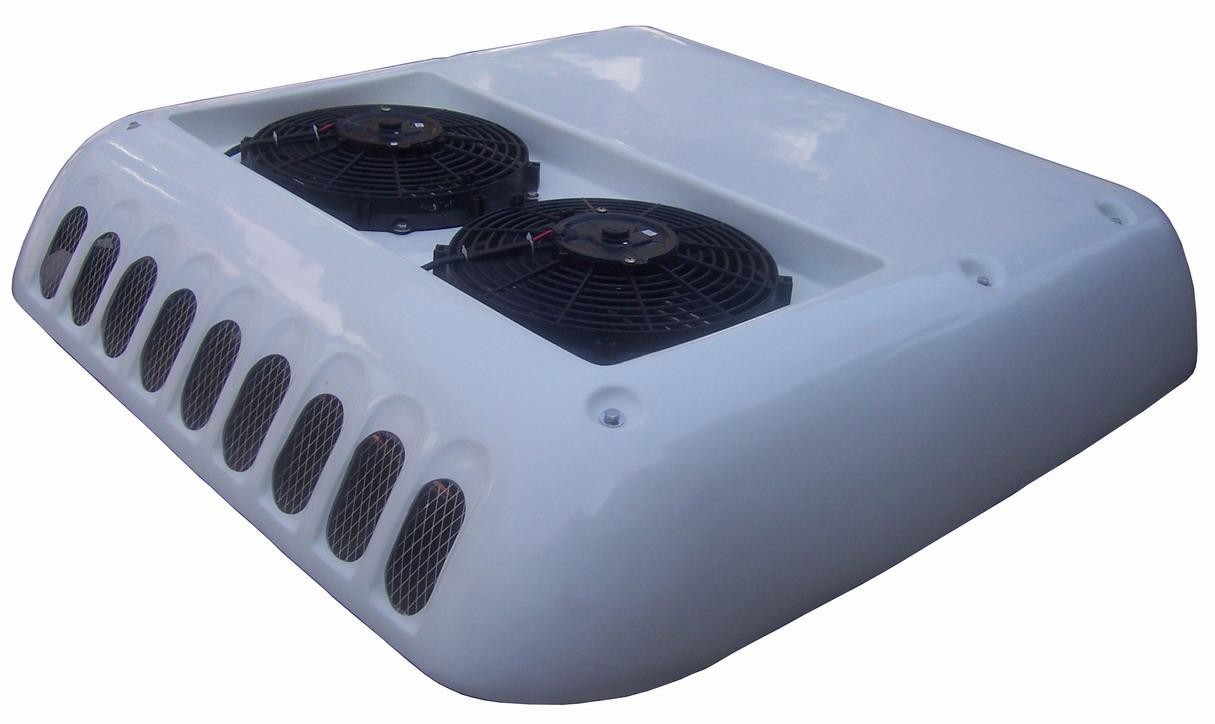

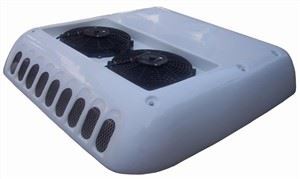

NF AC10 Mini Bus Air Conditioner

NF AC10 mini bus air conditioner

Model	AC10
Cooling capacity	9000Kcal/h / 10500W / 35700BTU
Compressor	7H15/TM21
Compressor weight	7.9KG/14.5KG
Compressor discharge volume	167CC/213CC
Refrigerant	R134a
Evaporator air flow	2000 m3/h
Total current	≤30A（24V）
VEHICLES MODEL	MINIBUS, Special Vehicles etc （15-21seats）
Condenser air flow	2600 m3/h

Working:

When the vehicle power system and the engine working, put the ON/OFF switch of the panel, the bus AC units will working as the last set models. And the evaporator blower, compressor clutch will working.

Cooling:

When the control panel is working at the cooling models, the AC units will working according the set temperature and the blower fan volume. We can adjust the blower fan at three models MAX, MID and MIN.

If the temperature is lower or equal the set temperature, the AC units will be waiting. When the temperature higher or equal the set temperature, the AC units will be working at cooling again.

The AC control panel can defrost automatically according the temperature.

Note: when the cooling is closed, the AC units will wait for at least 10 minutes ,   if the temperature higher or equal the set temperature, the AC units can be working at cooling again.

If the control panel power off, and power on again. The AC units will do anything as the last time setting. If working at cooling models, the compressor working on must after the engine working.

Closing:

When close the AC units, the control panel will close compressor, blower, etc automatically.
