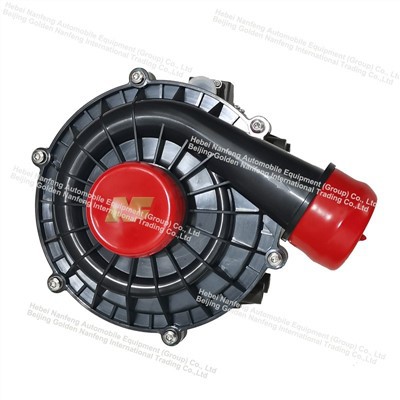

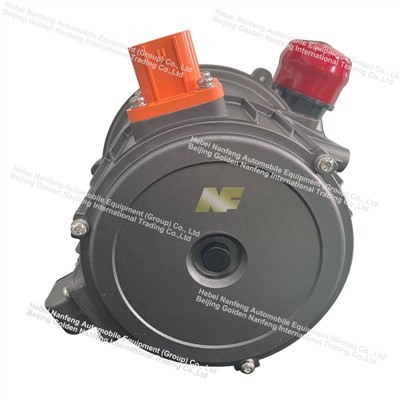

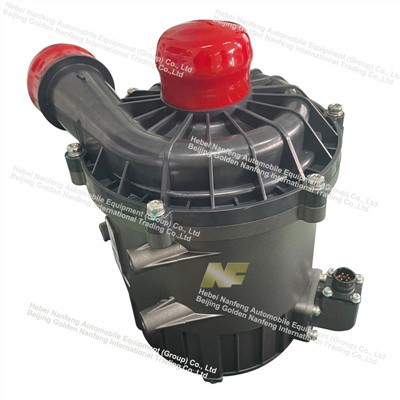

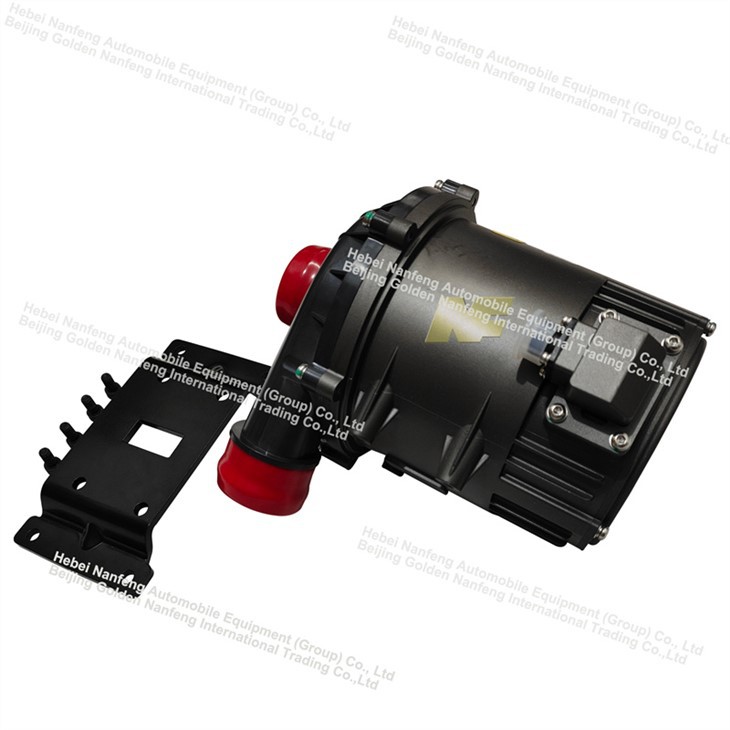

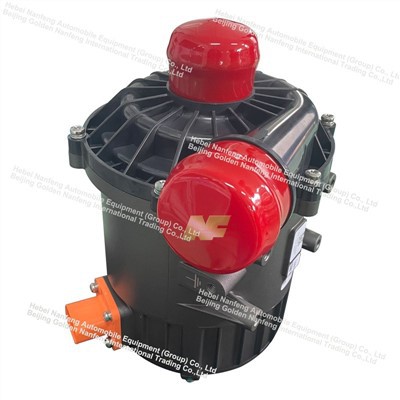

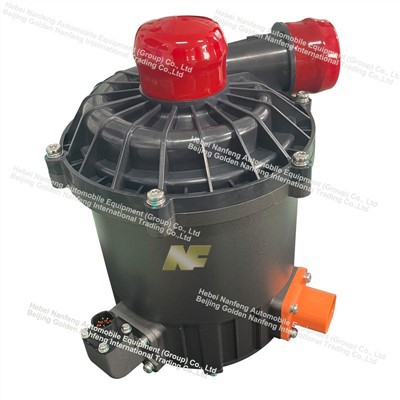

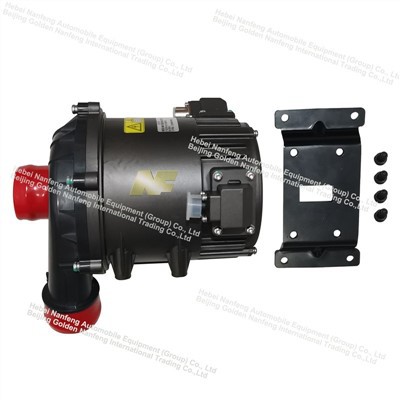

Electric Water Pump Used For Hydrogen Fuel Cell Vehicle
NF new energy electric water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
Description
Electric Water Pump Used For Hydrogen fuel cell vehicle
Products Description
Features of electronic water pump
1. The electronic water pump is water-cooled with a high power density and low-temperature rise.
2. The internal structure of the electronic water pump meets the insulation requirements of the medium and the casing.
3. The flow channel parts of the electronic water pump all meet the requirements of deionized water ion precipitation.
4. The structure is compact, with the advantages of small size and lightweight, and can be flexibly adapted to the installation space of different systems.
| Model Number | 02.03.256H.0003 |
| Ambient Temperature | -40ºC~+85ºC |
| Medium Temp | -40ºC~+95ºC |
| Rated Voltage | 24V |
| Voltage Range | DC9V~DC32V |
| Waterproofing Grade | IP67 |
| Service life | ≥30000h |
| Noise | ≤70dB |
| Rated Voltage | 600v |
| Flowing | Q=385L/min( when the head is 18m) |
Product Explosion Diagram
Products application
Our Company
