20kw High Quality High Voltage Coolant Heaters video

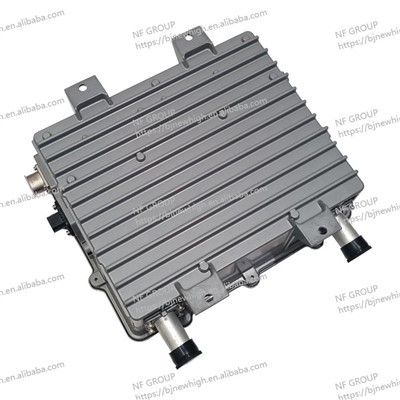

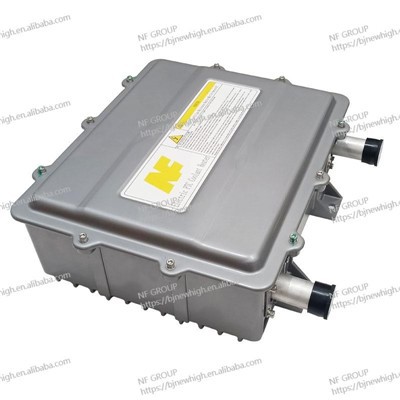

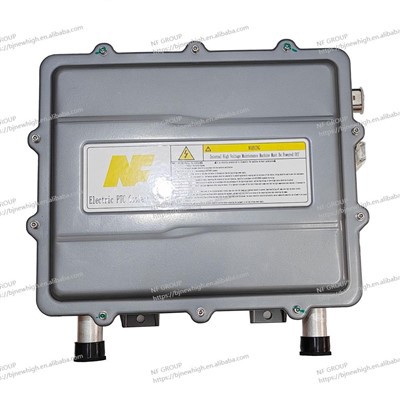

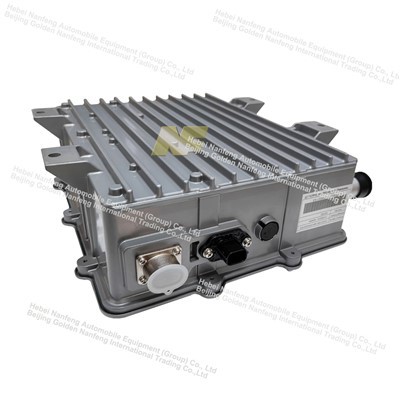

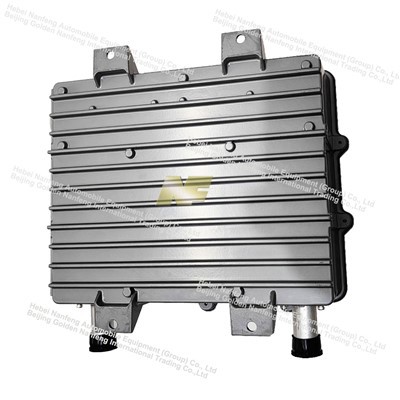

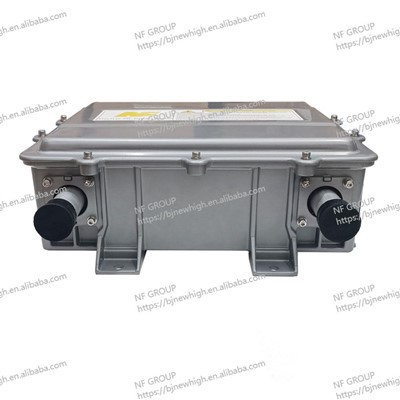

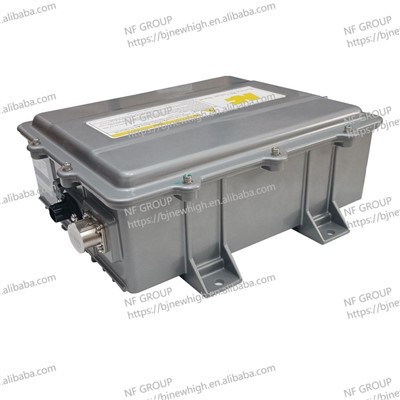

20kw High Quality High Voltage Coolant Heaters

20KW HV coolant heater for new energy vehicles is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components.

Description

20kw high quality high voltage coolant heaters


Products Description


Battery thermal management system: In low temperature environments, the performance of lithium batteries in new energy vehicles will decline. PTC electric heaters can help heat the batteries to reach operating temperature, improving endurance and performance.


Carriage heating: PTC electric heaters can provide heating for the cabin of electric or hybrid vehicles, replacing the heating system in traditional fuel vehicles to ensure a comfortable temperature inside the vehicle.


Coolant heating: PTC electric heaters are often used to heat coolant in new energy vehicles to help the engine or motor quickly reach operating temperature under low temperature conditions.



Power (KW) 10KW 15KW 20KW
Rated voltage(V) 600V 600V 600V
Supply voltage (V) 450-750V 450-750V 450-750V
Current consumption (A) ≈17A ≈25A ≈33A
Flow (L/h) >1800 >1800 >1800
Weight (kg) 8kg 9kg 10kg
Installation size 179x273 179x273 179x273
Control signal Rocker switch hardwire control Rocker switch hardwire control Rocker switch hardwire control

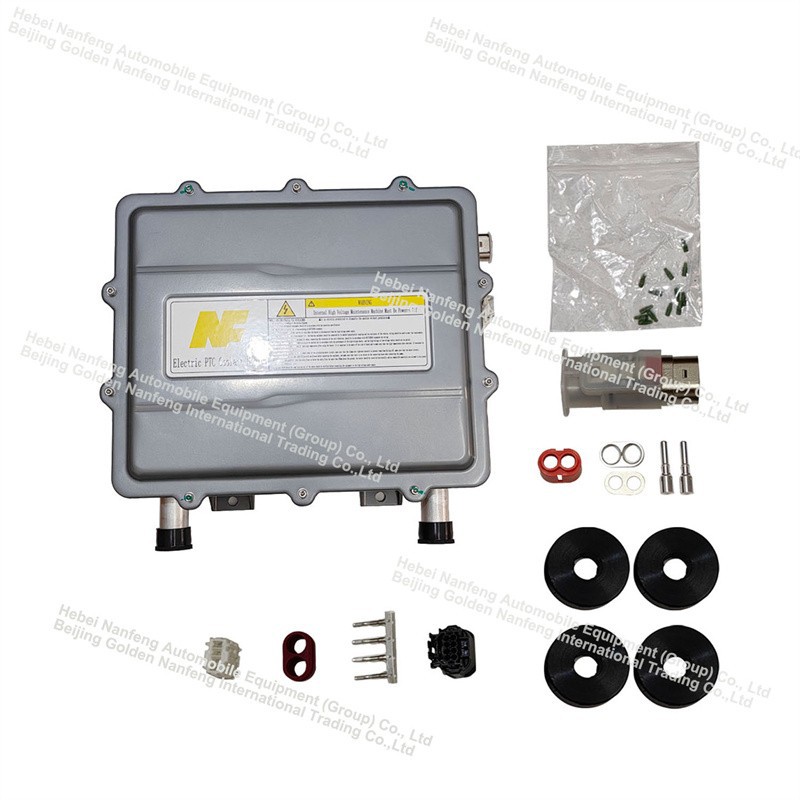

Products Details

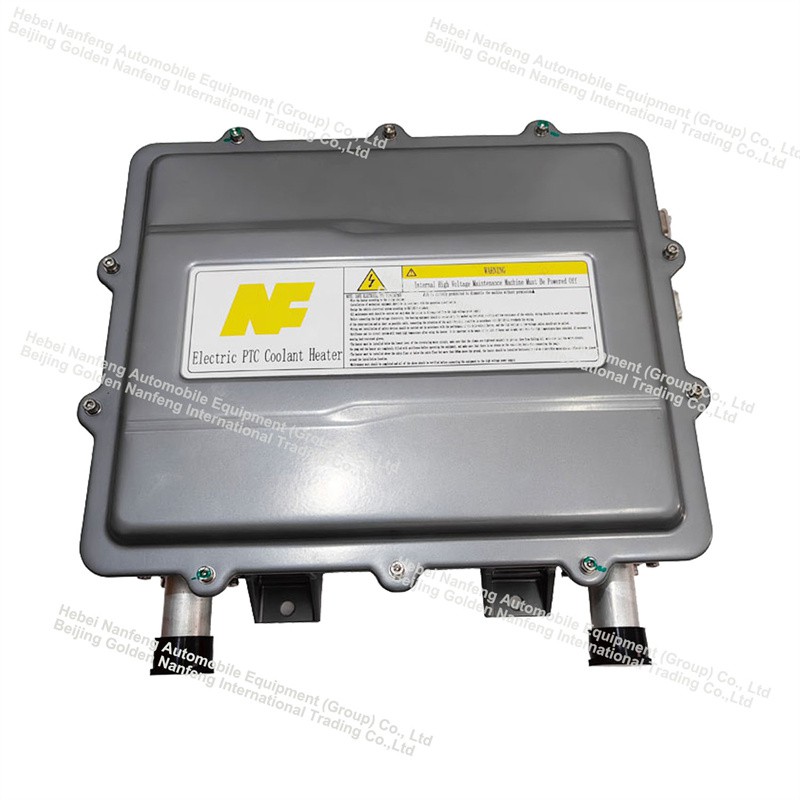

PTC heater 01

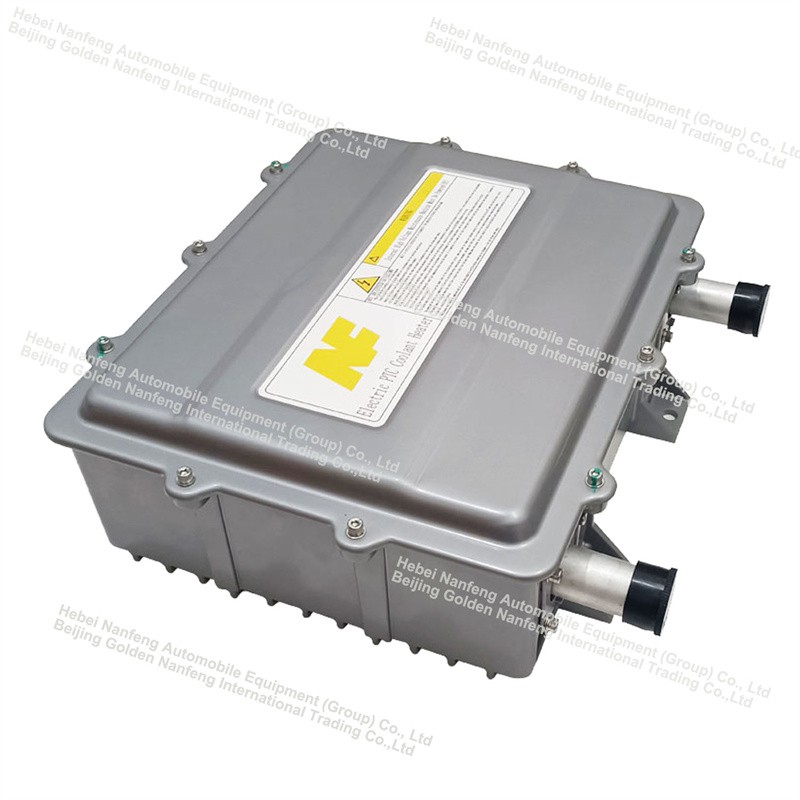

PTC heater 04

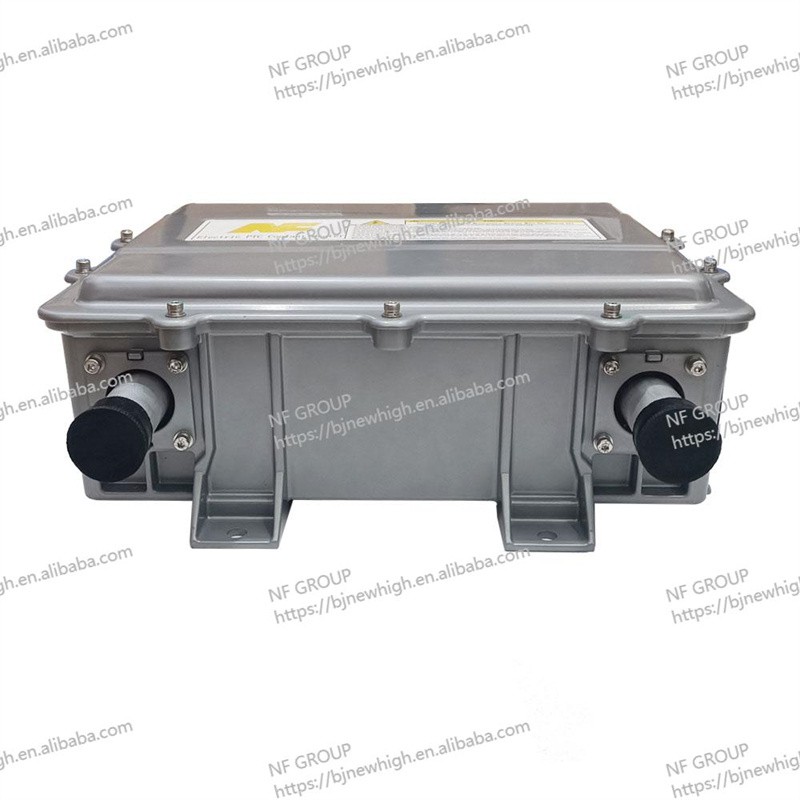

PTC heater5

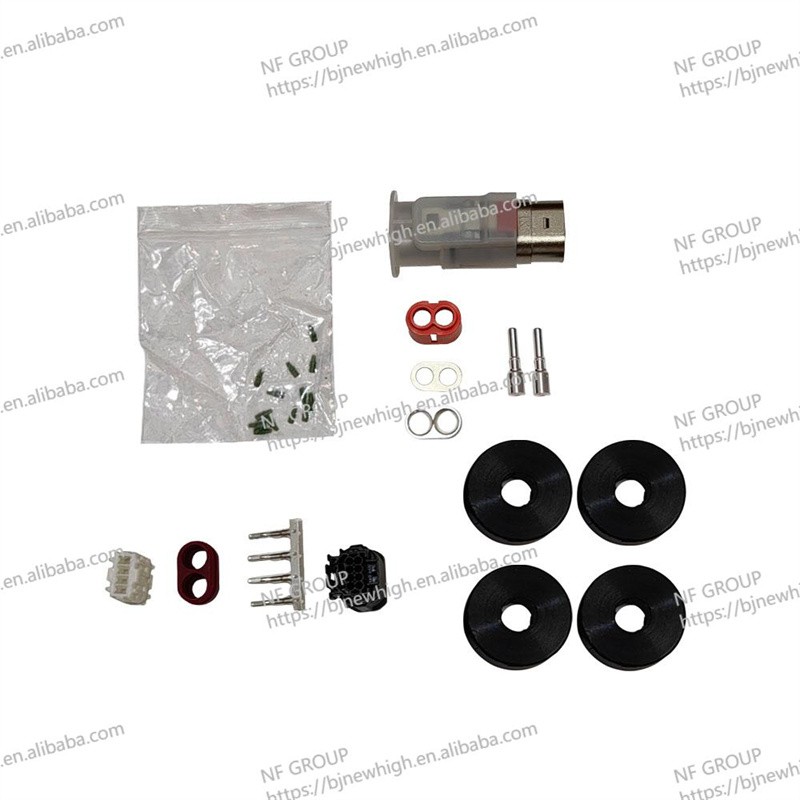

PTC heater12
Products Application




20kw ptc heater application

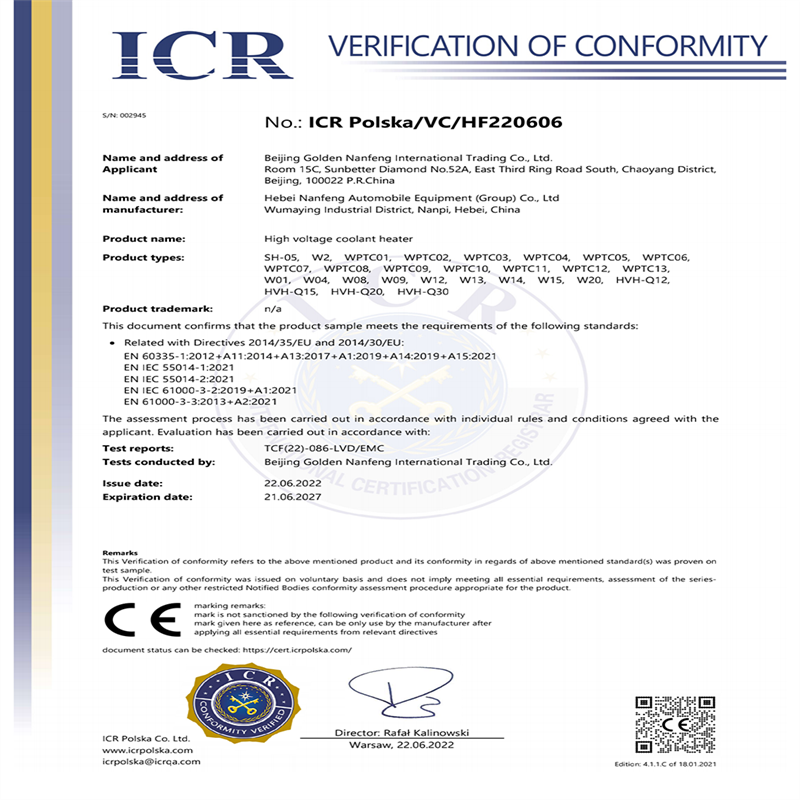

certification of high voltage heater

If you're looking for the 20kw high quality high voltage coolant heaters, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

Hot Tags: 20kw high quality high voltage coolant heaters, China, factory, suppliers, manufacturers, seller, wholesale, quotation, 600v PTC electric liquid heater, parking ptc coolant heater, 24v ev ptc coolant heater, PTC car heater, PTC air heaters up to 3 5kw, ev battery heater
