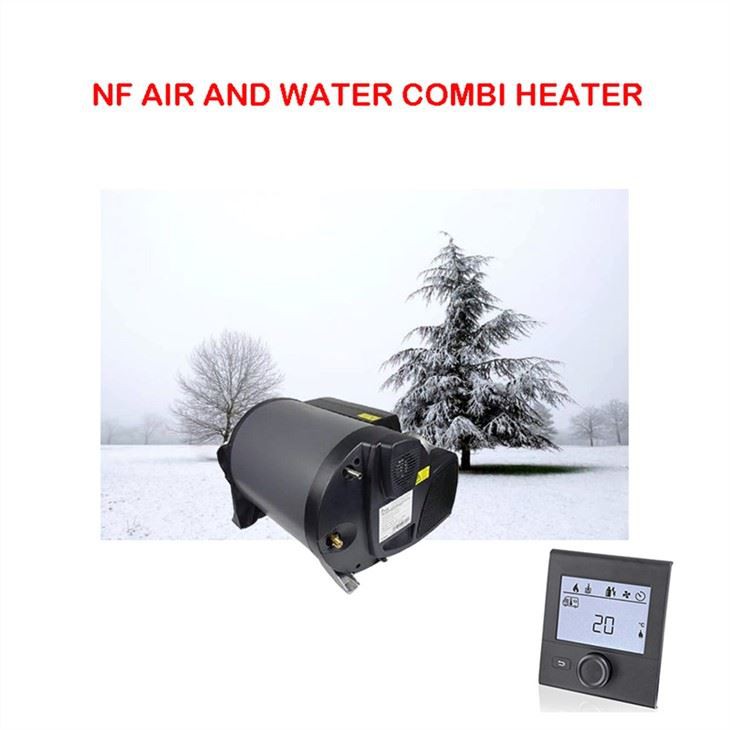

Water And Air Combi Heater
Water and air integrated heater for RV is a special heater for caravan that integrates hot water and warm air. This heater cannot be used in bus or dangerous goods carriers. Hebei Nanfeng Group is the largest manufacturer of heating and cooling equipment in China and the designated supplier of Chinese military vehicles.
Description
Water And Air Combi Heater
Product Acessories
Application
FJH-4/1C-E Model air parking heater (hereinafter referred to as heater) is a special heater for caravan that integrates hot water and warm air. This heater cannot be used in bus or dangerous goods carriers.
Control Panel:
Product Parameter
| Rated Voltage | DC12V |
| Operating Voltage Range | DC10.5V～16V |
| Short-term Maximum Power Consumption | 8-10A |
| Average Power Consumption | 1.8-4A |
| Fuel type | diesel/petrol |
| Gas Heat Power (W) | 2000 4000 |
| Fuel Consumption (g/h) | 240/270 |
| Gas Pressure | 30mbar |
| Warm Air Delivery Volume m3/h | 287max |
| Water Tank Capacity | 10L |
| Maximum Pressure of Water Pump | 2.8bar |
| Maximum Pressure of System | 4.5bar |
| Rated Electric Supply Voltage | ～220V/110V |
| Electrical Heating Power | 900W 1800W |
| Electrical Power Dissipation | 3.9A/7.8A 7.8A/15.6A |
| Working (Environment) Temperature | -25℃～+80℃ |
| Weight (kg) | 15.6kg |
| Dimensions (mm) | 510×450×300 |
| Working Altitude | ≤1500m |
Installation and Application
No cover is allowed to add to the heater surface.The size with is the smallest size, leaving enough space to connect accessories such as gas and water pipes. To prevent the danger from heater accidentally loosening, the upper cover of the heater compartment is screwed to the upper cover. Next to the installation location it is necessary to install a strong partition strip in front of the heater, perpendicular to the direction of travel. Above the floor height180mm can be attached to a septum (minimum 30*50mm). Heat sensitive objects and flammable objects should be placed away from the heater.
Obligations of the operator/vehicle owner
--The operator is responsible for the water with which the boiler is filled and for its quality.
--The vehicle owner is responsible for correct operation of the appliance.
--Liquid fuel system must comply with the technical and administrative regulations of the respective country of use.The national legislation and regulations must be observed.
--Pressure regulating devices and hoses must be replaced with new ones no more than 10 years after their date of manufacture(every 8 years if used commercially).
--Inspect hose lines regularly and have them replaced if they are broken.
--If the heater is not being used,always drain off the water if there is a risk of frost.NO claims may be made under the warranty for damage caused by frost.
Packing
