High Voltage Electric Parking Heater For Cars
Electric Vehicle High Voltage PTC Heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. It also provides heat to other parts of the vehicle that require temperature regulation, such as the battery.
Description

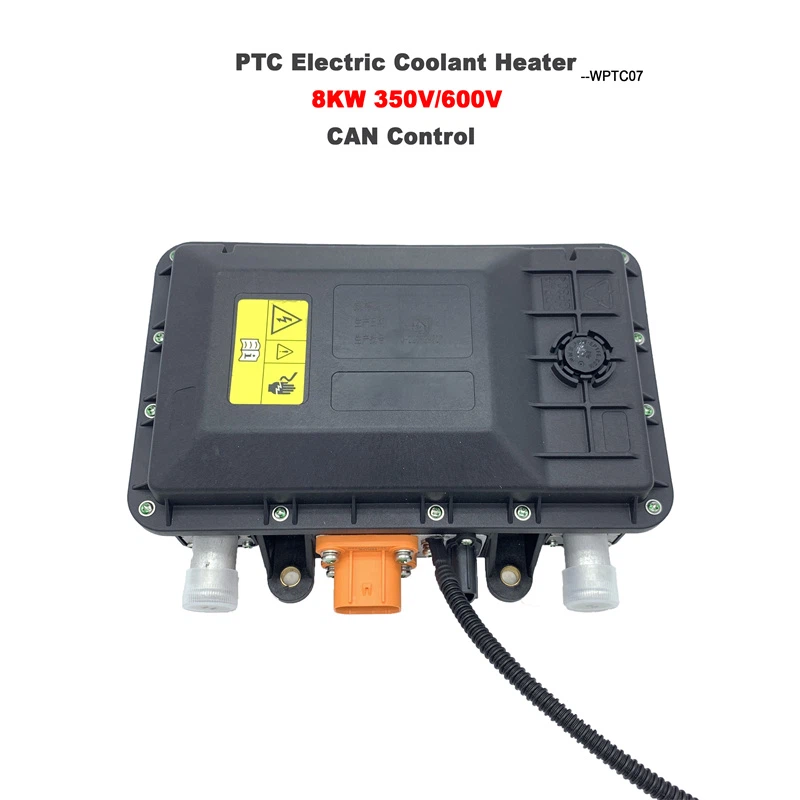

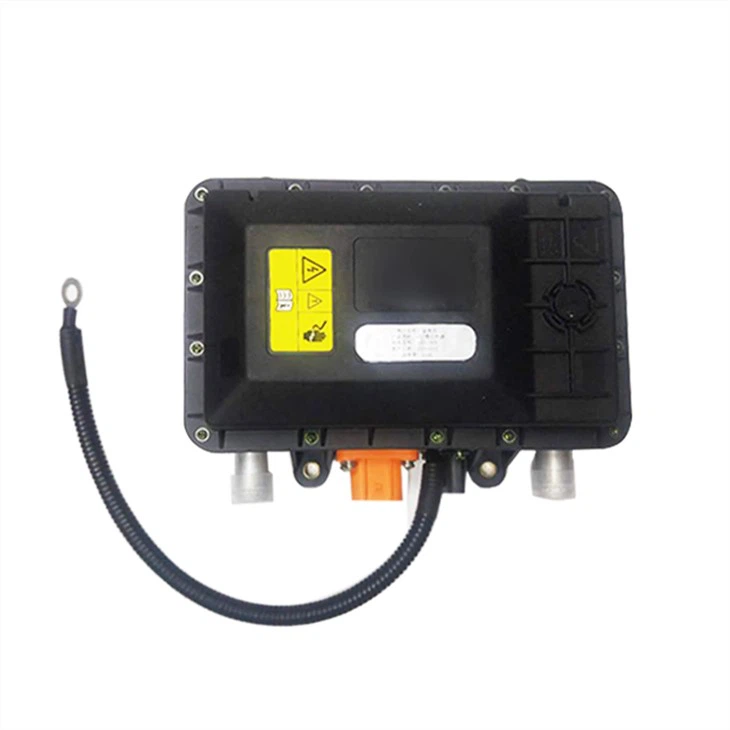

High Voltage Electric Parking Heater For Cars
Products Introduction
Electric Vehicle High Voltage PTC Heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. It also provides heat to other parts of the vehicle that require temperature regulation, such as the battery.
Products Parameter
| Model | WPTC07-1 |
| Rated power (kW) | 8KW±10%@10L/min,Tin=0℃ |
| OEM Power(kW) | 6KW/7KW/8KW/9KW/10KW |
| Rated Voltage(VDC) |
350v |
| Working Voltage | 250~450v |
| Controller low voltage (V) | 9-16 or 18-32 |
| Communication protocol | CAN |
| Power adjust method |
Gear Control |
| Connector IP rating | IP67 |
| Medium type |
Water: ethylene glycol /50：50 |
| Overall dimension (L*W*H) | 236*147*83mm |
| Installation dimension | 154 (104)*165mm |
| Joint dimension | φ20mm |
| High voltage connector model | HVC2P28MV102, HVC2P28MV104 (Amphenol) |
| Low voltage connector model | A02-ECC320Q60A1-LVC-4(A) (Sumitomo adaptive drive module) |

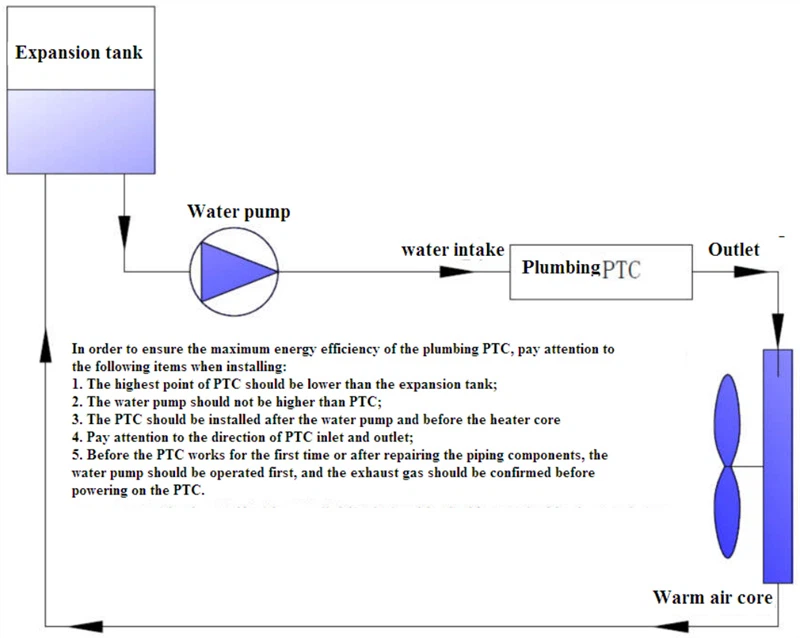

Precautions for product installation
Products Details
Products Application
Products Certification
Our Advantage
1,Our company has been producing heaters for over 30 years and is the only designated supplier of Chinese military vehicles.
2,We provide the best service according to your needs;
3,Our products are of high quality at a cheap price and delivered on time.
4,We have a professional sales team to provide you with quick and warm service throughout the whole process.
5, A Small quantity is acceptable.
6,Customized--We are the manufacturer! sample &OEM&ODM are available!
7,Safety--We have our test chart, and all of our products have been rigorously tested in the factory.
8,Certification--We have CE and quality management system certification.
9,High Quality --Our company uses the most advanced equipment to make the best quality products.
FAQ
1. Q: What is the control method of this high-voltage coolant heater?
A: The control method of this high voltage coolant heater is currently CAN control, and the baud rate can be selected from 250k and 500k.
2. Q: If I want more detailed technical information about this product, can you send it to me?
A: Of course. We can send you drawings, instructions, CAN protocols, and 3D models.
3. Q: If I want to buy this product, what information do I need to tell you?
A: (1) What power do you need?
(2) High voltage range? Rated high voltage?
(3) Low voltage range? Rated low voltage?
(4) What control method do you need? What baud rate do you need?
(5) Do you need a high and low-voltage docking plug-in?
