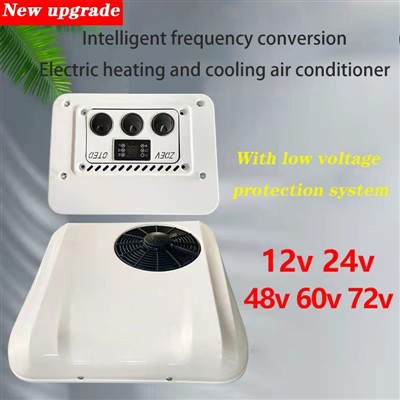

DC12v 24v Roof Mounted Air Conditioner For Truck
rooftop air conditioner for truck are suitable for various types of vehicles, 12V, 24V products are suitable for light trucks, trucks, saloon cars, construction machinery and other vehicles with small skylight openings.48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweeper and other battery powered small vehicles.
Description
Products Description
Truck air conditioner Introduction
The system automatically enters the blowing mode after each startup. Press the mode key to switch the refrigeration mode (snowflake sign appears), within 45 seconds, the system will perform self-check (other keys except the power key have no effect during the self-check period), if the refrigeration is not normal, the system will automatically shut down with an alarm, if the refrigeration condition is normal, the system will automatically remove the self-check and restore manual control. Press the mode key again to switch the heating mode (the green small sun symbol appears). If the temperature is set higher than the temperature displayed on the panel, the heating will start; otherwise, the heating will not start.
12v product parameters
| power | 300-800w | rated voltage | 12v |
| cooling capacity | 600-2000w | battery requirements | ≥150A |
| rated current | 50A | refrigerant | R-134a |
| maximum current | 80A | electronic fan air volume | 2000M3/h |
24v product parameters
| power | 500-1000w | rated voltage | 24v |
| cooling capacity | 2600w | battery requirements | ≥100A |
| rated current | 35A | refrigerant | R-134a |
| maximum current | 50A | electronic fan air volume | 2000M3/h |

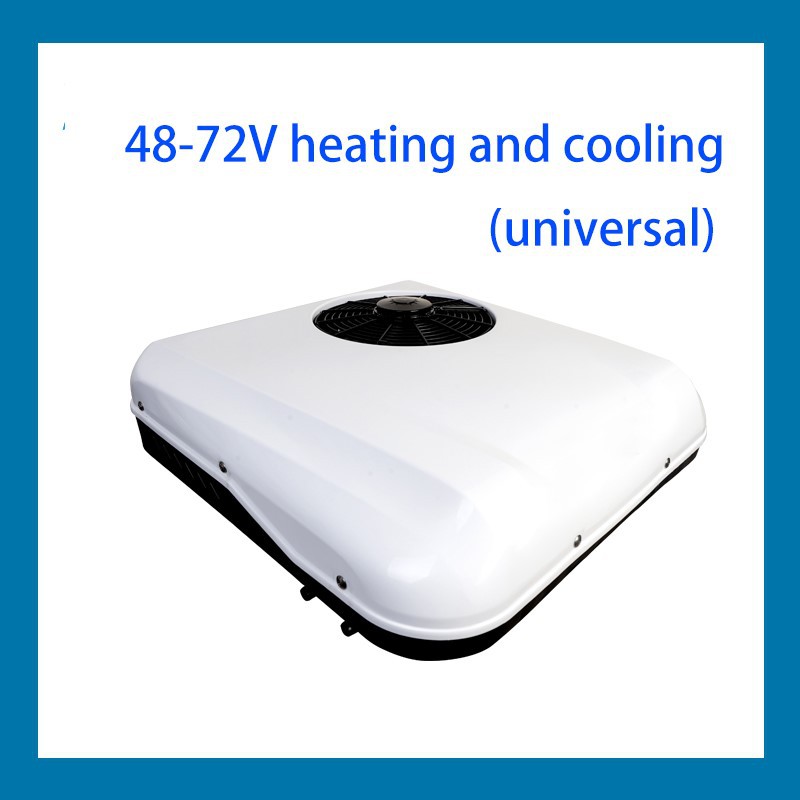

48v-72v product parameters
| input voltage | DC43V-DC86V | minimum installation size | 400mm*200mm |
| power | 800W | heating power | 1200W |
| refrigerating capacity | 2200W | electronic fan | 120W |
| blower | 400m3/h | number of air outlets | 3 pieces |
| weight | 20kg | external machine dimensions | 700*700*149mm |
1)12V, and 24V products are suitable for light trucks, trucks, saloon cars, construction machinery, and other vehicles with small skylight openings.
2)48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electric forklifts, electric sweepers, and other battery-powered small vehicles.
3)Vehicles with sunroofs can be installed without damage, without drilling, without damage to the interior, and can be restored to the original car at any time.
4)Air conditioning internal standardized vehicle grade design, modular layout, stable performance.
Product structure drawing
Products Dimension
12v 24v panel display and instructions

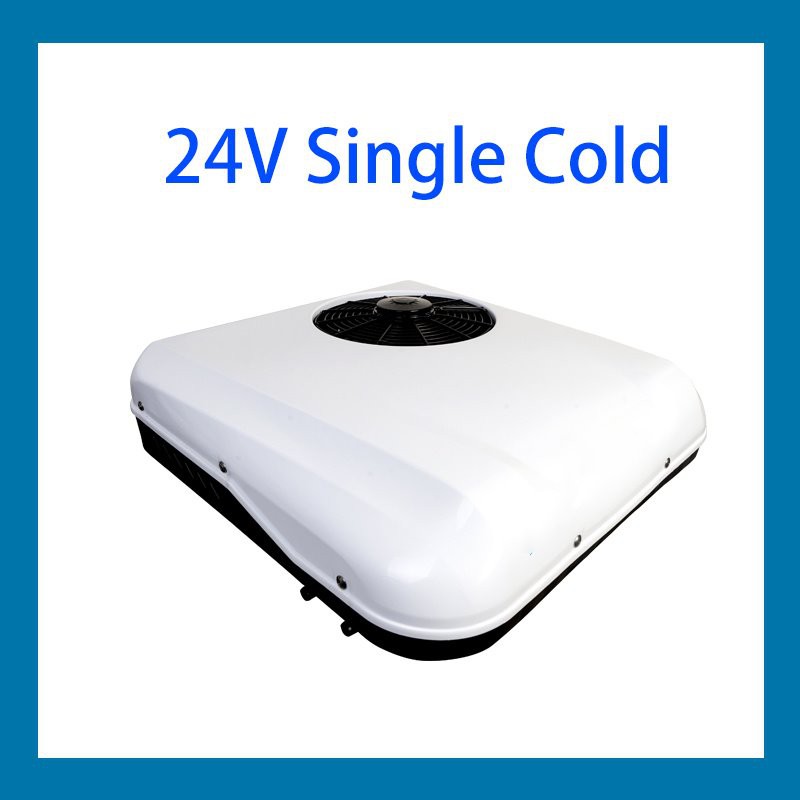

Products Four Models
Products Details
Products Installation
Products Advantages
01
Intelligent frequency conversion
Energy saving and mute
03
High voltage and low voltage protection
04
Rapid cooling, fast heating
Products Application
