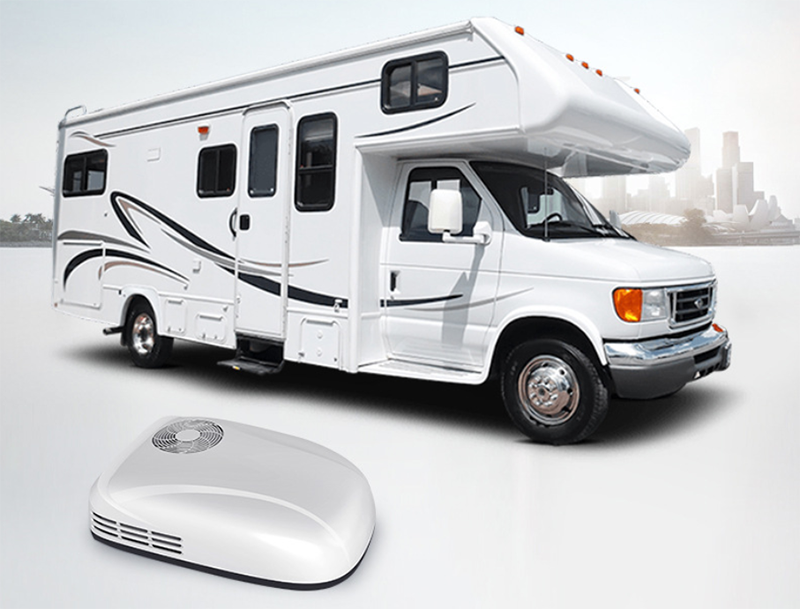

Caravan Parking Air Conditioner

Caravan Parking Air Conditioner





RV air conditioners are broadly divided into two categories: traveling air conditioners and parking air conditioners. The two can be distinguished from the name. One is used while the RV is in motion, and the other is used after arriving at the campground.

Top-mounted air conditioners are easier to replace and repair than bottom-mounted air conditioners, and they cost less. Today we introduce you to the high quality overhead air conditioner:





Model	NFRTN2-100HP	NFRTN2-135HP
Rated Cooling Capacity	9000BTU	12000BTU
Rated Heat Pump Capacity	9500BTU	12500BTU(but 115V/60Hz version has no HP)
Power consumption(cooling/heating)	1000W/800W	1340W/1110W
Electric current(cooling/heating)	4.6A/3.7A	6.3A/5.3A
Compressor stall current	22.5A	28A
Power Supply	220-240V/50Hz, 220V/60Hz	220-240V/50Hz, 220V/60Hz, 115V/60Hz
Refrigerant	R410A
Compressor	Horizontal type, Gree or others
Upper Unit Sizes (L*W*H)	1054*736*253 mm	1054*736*253 mm
Indoor panel net size	540*490*65mm	540*490*65mm
Roof opening size	362*362mm or 400*400mm
Net weight of roof host	41KG	45KG
Indoor panel net weight	4KG	4KG
Upper Unit Sizes (L*W*H)	PP Plastic Injection cover, metal base	Inner frame material: EPP

















7.1 Cleaning of Filter Screen:

Position of left and right buckles of the decorative panel Regularly remove the filter screen behind the decorative panel inside the panel (press the left and right buckles of the decorative panel, and the decorative panel can be removed), flush it backwards with clear water, dry it and reinstall it.
Note: it is forbidden to operate the air conditioner without the filter screen, otherwise, the evaporator coil will be defiled and the service life of air conditioner will be affected.

7.2 Panel Surface Cleaning:

Clean the outer surface of the panel with soft cloth dipped in neutral detergent. Do not use polishing or cleaning powder.

7.3 Fan Motor:

The fan motor has been lubricated before leaving the factory and does not need special maintenance.



If you're looking for the caravan parking air conditioner, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
