7KW Automotive Electric PTC Coolant Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.7KW automotive electric PTC coolant heater is specially designed for electric vehicles and has the advantages of fast heating and environmental protection.
Description
7KW Automotive Electric PTC Coolant Heater
Products Description
This PTC electric heater is suitable for electric/hybrid/fuel cell vehicles and mainly serves as the main heat source for temperature regulation inside the vehicle. The PTC electric heater is suitable for both vehicle driving mode and parking mode.
During the heating process, electrical energy is effectively converted into thermal energy by PTC components, so this product has a faster heating effect than internal combustion engines. At the same time, it can also be used for temperature regulation of batteries (heating to working temperature) and fuel cell start-up loads.

This PTC electric heater adopts PTC technology to meet the safety requirements of passenger cars for high voltage. In addition, it can also meet the relevant environmental requirements of components in the engine compartment.
The purpose of PTC electric heaters in application is to replace the engine block as the main source of heat. It heats the PTC heating component by supplying power to the PTC heating group, and heats the medium in the heating system circulation pipelinethrough heat exchange.
Products Parameter
| Item | PTC coolant heater |
| Rated power (kw) | 7KW -5%,+10% (350VDC, 20 L/min, 25 ℃) |
| High voltage range | 240~500VDC |
| Low voltage range | 9~16VDC |
| Electric shock | ≤ 30A |
| Heating method | PTC positive temperature coefficient thermistor |
| Communication method | CAN2.0B |
| Electric strength | 2000VDC , no discharge breakdown phenomenon |
| Insulation resistance | 1000VDC, ≥ 120MΩ |
| IP grade | IP 6K9K & IP67 |
| Storage temperature | - 40~125℃ |
| Use temperature | - 40~125℃ |
| Coolant temperature | -40~90℃ |
| Coolant | 50 ( water) +50 (ethylene glycol)% |
| Weight | ≤ 2.6 Kg |
| EMC | IS07637/IS011452/IS010605/ CISPR25 |
| Water chamber airtight | ≤ 2.5 ( 20 ℃, 300KPa ) mL / min |
| Control area airtight | < 0.3 (20 ℃, -20 KPa ) mL / min |
| Control method | Limit power + target water temperature |

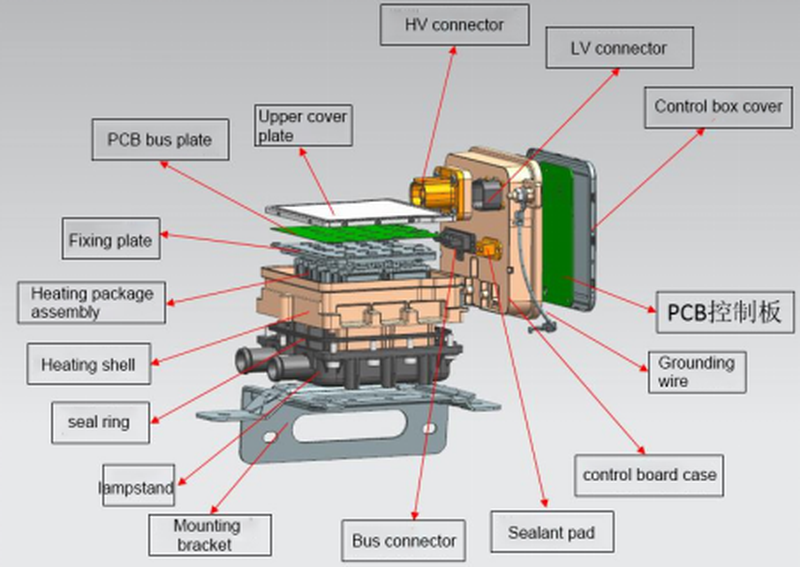

Product explosion diagram:

Products Details




Products Installation


The base of the PTC water heating heater has 6 installation points, which are fixed to the installation bracket by 6 ST6 self-tapping screws. The installation bracket can be customized according to the installation space of the vehicle.
Products Certification

Products Application

Our Company


Hebei Nanfeng Group is the largest manufacturer of electric heaters in China and the only designated supplier of military vehicles in China. Hebei Nanfeng Automobile Equipment Group Co., Ltd. is a high-tech group company specializing in the production of automobile heating systems, electronic water pumps, metal stamping parts, electronic accessories and other equipment and related parts. We have 5 factories and an export foreign trade company (Beijing Golden nanfeng International Trade Co., Ltd., located in Beijing).
After more than 30 years, Hebei Nanfeng Automobile Equipment Group Co., Ltd. has continuously introduced international advanced technology and equipment. The products meet the European safety and environmental protection standards, and have formed large-scale and serial production. Our company has passed IATF 16949, ISO14001, BS OHSAS 18001 and other system certifications, and has been supporting many well-known automobile factories in China. At present, the products have been exported to overseas and international markets.
