3KW Low Price Air Heater
Product information Scope of supply of Heater,Installation Kits and SetInstruments 1.Heater 2.Dosing pump 3.Rotation Switch 4.Tank Extractor 5.Hamess 6.Wiring Harness7.Flexible exhaust pipe 8.Air Intake Pipe 9. Cable Tape 10.Bracket dosing pump 11.FuelHose 12. Hose Clamp 13.Rotaionary Air Outlet...
Description
Product information

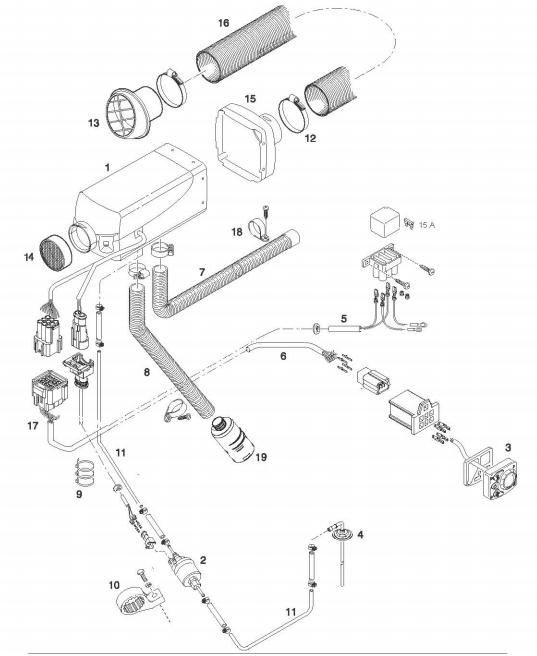

Scope of supply of Heater,Installation Kits and SetInstruments
1.Heater 2.Dosing pump 3.Rotation Switch 4.Tank Extractor 5.Hamess 6.Wiring Harness7.Flexible exhaust pipe 8.Air Intake Pipe 9. Cable Tape 10.Bracket dosing pump 11.FuelHose 12. Hose Clamp 13.Rotaionary Air Outlet 14.Grating15Housing 16. Hot Air Duct 17.Connector 18. Hose Clamp 19.Air Intake Silencer
Technology data
Power (Watt) | 3000 |
Heating medium | Air |
Fuel consumption (Vh) | 0.41-0.11 |
Fuel | Diesel |
Rated voltage | 12or 24 volt |
Main dimensions | 376X140x150 |
Operating range Lower voltage limit: switches off the heater when the voltage limit is reached. | approx.10.5 volt resp.18 volt Undervoltage protection trigger time: 20 seconds |
Upper voltage limit: An uppervoltage protection in the controler switches off the heater when the voltage limit is reached. | approx.18 volt resp.28 volt Overvoltage protection trigger time: 20 seconds |
Fuel "Fud quality"and "Fuel at low temperatures" | Commercially available diesel fuel DIN EN 590) |
| Ventilation modepossible | possible |
Maximum air intake temperature | +40℃ |
The Operation And Eror Code
1. Press on button for 2 Seconds when switch of, red lights on left upper cormer2. Pree on button for 2 Seconds when switch on, red lights off left upper corner
3. Automatic power adjustment in accordance with the customized temperature setting by the rotationary switch
4. Fuel pumping starts when consecutive press 5 times on the ventilation buton on condition of power on for the first time when switch off press 1 time shortly for the stop of fuel pumping
5. Press for 2 Seconds for Ventilation, and press for another 2 Seconds, Ventilation off
