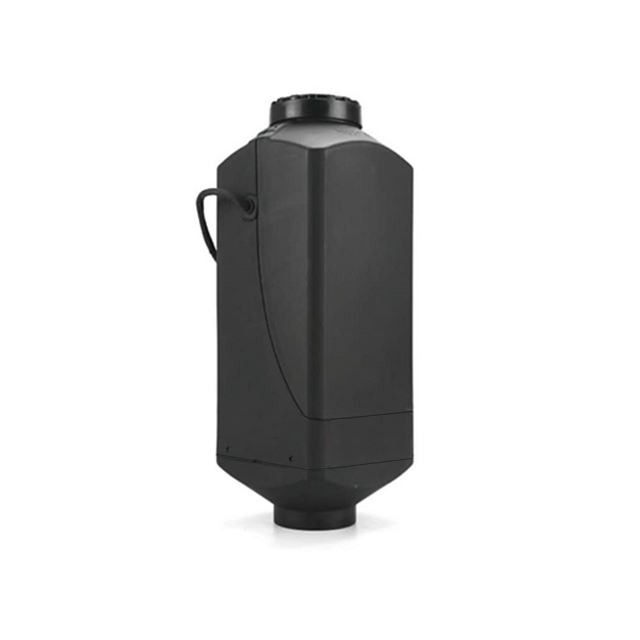

2kw 12v/24v Diesel Heater
Survey
KW2.0 Air heater (hereinafter referred to as the heater) is independent to the original engine system, it makes use of 12V or 24V direct current to drive. There are two kinds of control mode of the heater: Automatic control mode and Manual control mode. The heater adopts light diesel and gasoline which corresponds to the environmental temperature as fuel, and it can be started and operated normally at the temperature of above -40℃. The inhaled fresh air is heated to hot air through heat exchanger by the energy which comes from fuel burning, then blown to where it is needed. This type of heater owns the advantage of compact structure, light weight, high thermal efficiency, economize on electricity and fuel, easy installation.
Function
Warm-up, defrost glass
Heat and keep warm for the followed area:
---Driving cab, cabin
---Cargo hold
---Interior of staff carrier
---Caravan
Technical specification
Power(W) 2000 Heating medium
Air Fuel Diesel Fuel consumption 0.28~0.1 Rated voltage(V) 12/24 Low limit of under voltage protection(V) 10.5/21.6 Upper limit of over voltage protection(V) 15.5/30 Rated consumption(W) 14~29 Working temperature(℃) -40~+70 Weight(KG) 2.8 Size(mm) 305*115*122 Suitable to vehicles Micro vehicles, minivans, sedans, trucks, passenger cars, station transport wagons, engineering vehicles, agricultural transportation vehicles
The inner structure of heater
Exhaust tube 2.Gasket 3.Combustion pipe 4.Combustor 5.Fuel tube 6.Gasket 7.Combustion supporting fan blades 8.Bracket of fan motor 9.Gasket 10.Combustion supporting air inlet 11.Fan motor 12. Blade wheel of heating fan 13.Intake air temperature sensor 14.Controller 15.Fix screw 16.Fix screw 17.Fix screw 18.Ignitor sensor
Controller
