16-35KW Diesel Water Parking Heater With Emark
Hebei Nanfeng Automobile Equipment (Group) Co.,Ltd, which is the only designated parking heater supplier for the Chinese military vehicle. We have been manufacturing and selling heater for over 30 years. Our products are not only popular in China, but also exported to other countries, like South Korea, Russia, Ukraine, and so on.
Description

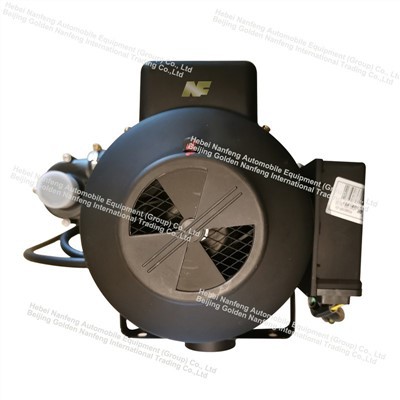

16- 35KW Diesel Water Parking Heater With Emark
Products Description
The 16-35kW diesel water parking heater is an efficient and energy-saving vehicle-mounted or parking heating device for trucks, RVs, construction machinery, and other vehicles. It can independently provide warm air when the engine is turned off, and supports engine preheating, antifreeze, and other functions.
Core features:
1. Efficient heating: This 16-35kW high-power output, fast heating unit is suitable for large vehicles or severe cold environments. Warm air can circulate through the vehicle air-conditioning system to improve the comfort of the cab.
2. Diesel drive: Directly use the diesel in the vehicle tank, no external power supply is required, long-lasting endurance, and better economy than electric heating equipment.
3. Water heating circulation: By heating the coolant, it can not only heat the cab, but also preheat the engine, reduce cold start wear, and extend the engine life.
4. Intelligent control: Support temperature control adjustment, timed start and stop, remote control operation, some models are compatible with APP remote control, and are easy to use.
5. Safe and reliable: It has multiple safety mechanisms such as overheating protection, flameout protection, and voltage monitoring, and is suitable for 30℃ to 50℃ environments.
Products Parameter
| Model | YJP-Q16.3 | YJP-Q20 | YJP-Q25 | YJP-Q30 | YJP-Q35 |
| Heat flux(KW) | 16.3 | 20 | 25 | 30 | 35 |
| Fuel consumption(L/h) | 1.87 | 2.37 | 2.67 | 2.97 | 3.31 |
| Working voltage(V) | DC12/24V | ||||
| Power consumption(W) | 170 | ||||
| Weight(kg) | 22 | 24 | |||
| Dimensions(mm) | 570×360×265 | 610×360×265 | |||
| Usage | Motor operates in low temperature and warming, defrosting of the bus | ||||
| Media circling | Water pump force circle | ||||
Product Structure:
Products Installation
Selecting the product type, installation seems to be more important, because it decides the usage effect of the warming system directly. Installation has five steps:
1. To install the heater conveniently, please refer to the diagram (below). The heater should be installed in a cabin with not too high temperatures and no combustible materials. Inlet and exhaust air openings must be kept clean so as not to inhale snowflakes and spattering spray; the air-exhausted opening can't face the direction of driving.
2. Inlet-air of the heater is ample, so a shutter (total area≥100 cm2) should be cut in the side of the bin, and waste air is prohibited from being inhaled into the inlet air pipe to affect the operation. Air-exhausted pipes stretch to the outside of the bin.
3. Oil pipe (φ8×1) is made from nylon colophony, joints M14×1.5, pipes must be joined tightly. The difference between the oil tank liquid surface and heater center is within ±500 ㎜, the distance between the in-oil joint and surface of the oil pipe is within 3m, the heater pipes are single, and they can't be used with other pipes together.
4. Electric connection refers to circuit diagram 10
5. Canalage of heater has reasonable arrangement, affusion is at the top, position of heater is as low as possible, pipe can't be converted into hard bend, pipes resistant-pressure>6 ㎏/㎝ 2
Products Details
Why Choose Us?
1. Our company is the largest manufacturer of automobile heating and cooling equipment in China, and the designated supplier of military vehicles in China.
2. Quality Control through the whole Manufacturing process.
3. General Inspection on fixing before Packing.
4. In 2006, our company passed ISO/TS16949:2002 quality management system certification.
5. After you make an order, we will follow up on the whole process and update you. Collecting goods, loading containers, and tracking goods transport information for you.
6. Any of our products you are interested, or any customized orders you wish to place, any items you want to buy, please let us know your requirements. Our team will do its best to help you.
Products Application
