10kw High Voltage Electric Vehicle Ptc Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.7KW HV coolant heater for electric vehicles is specially designed for electric vehicles and has the advantages of fast heating and environmental protection.
Description

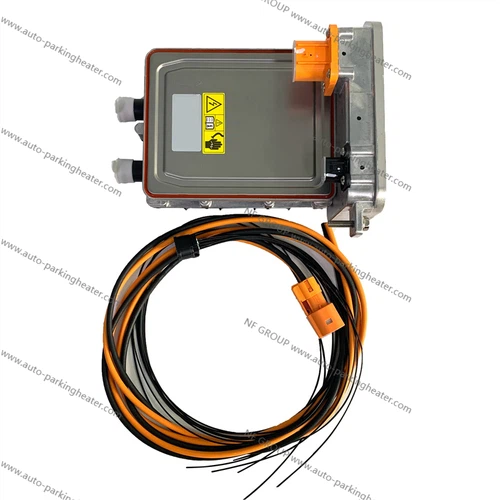

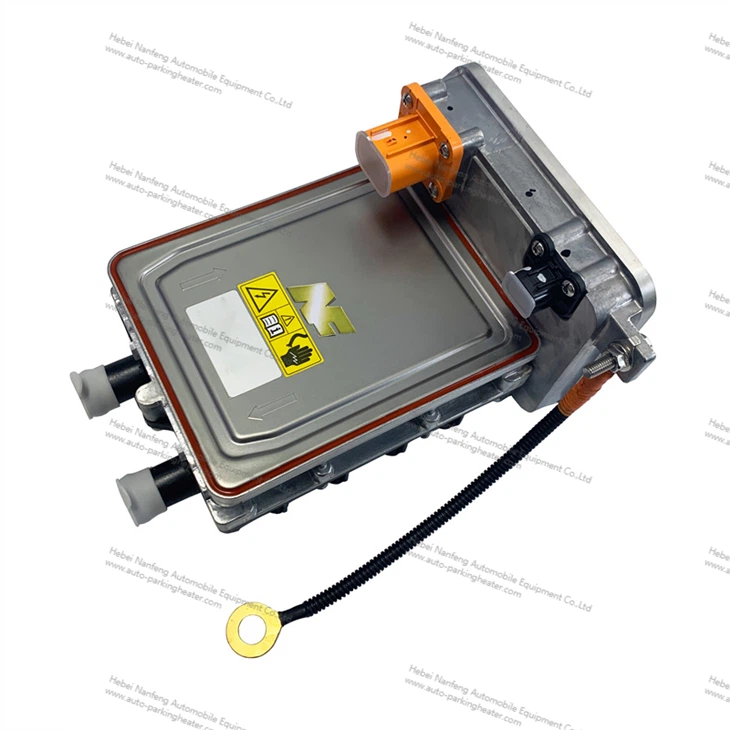

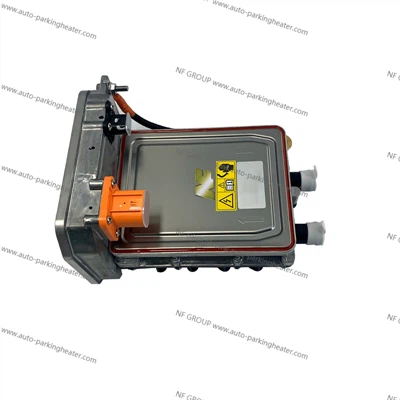

10kw High Voltage Electric Vehicle PTC Heater
Products Description
PTC coolant heater
The new energy vehicle PTC water heater is a device that uses PTC heating elements to heat vehicle coolant. Its main function is to provide heat energy to vehicles in low-temperature environments so that key components such as engines, motors, and batteries can operate normally. PTC heating element is a self-restoring thermistor element, which is efficient, stable and reliable. When current passes through the PTC heating element, a thermal effect will be generated, which will increase the surface temperature of the element and achieve the purpose of heating the coolant.
electric vehicle ptc coolant heater
The new energy vehicle PTC water heater is a device that uses PTC heating elements to heat vehicle coolant. Its main function is to provide heat energy to vehicles in low-temperature environments so that key components such as engines, motors, and batteries can operate normally.
PTC heating element is a self-restoring thermistor element, which is efficient, stable and reliable. When current passes through the PTC heating element, a thermal effect will be generated, which will increase the surface temperature of the element and achieve the purpose of heating the coolant. Compared with traditional electric heaters, PTC water heaters have the advantages of self-adjusting power and stable temperature.
| Item |
SR03-17 |
| Power |
10 KW (350VDC, 10L/min, 0℃)
|
| High voltage |
200~500VDC
|
| Low voltage | 9-16VDC |
| Communication method | CAN |
| IP grade | IP 6K9K & IP67 |
| Coolant | 50 ( water) +50 (ethylene glycol) |
|
Heating method
|
PTC positive temperature coefficient thermistor
|

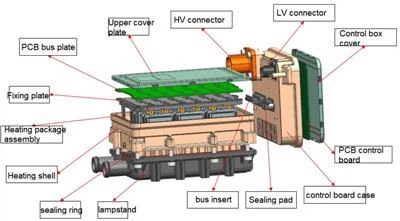

Product explosion diagram：
PTC water heater has 8 installation points , which are fixed to the installation bracket by 8 ST6 self-tapping screws . The installation bracket can be customized according to the installation space of the vehicle.
Products Details
Products Application
Certification
If you're looking for the 10kw high voltage electric vehicle ptc heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Hot Tags: 10kw high voltage electric vehicle ptc heater, China, factory, suppliers, manufacturers, seller, wholesale, quotation
