10kw EV PTC Coolant Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.10KW PTC coolant heater is specially designed for electric vehicles and has the advantages of fast heating and environmental protection
Description

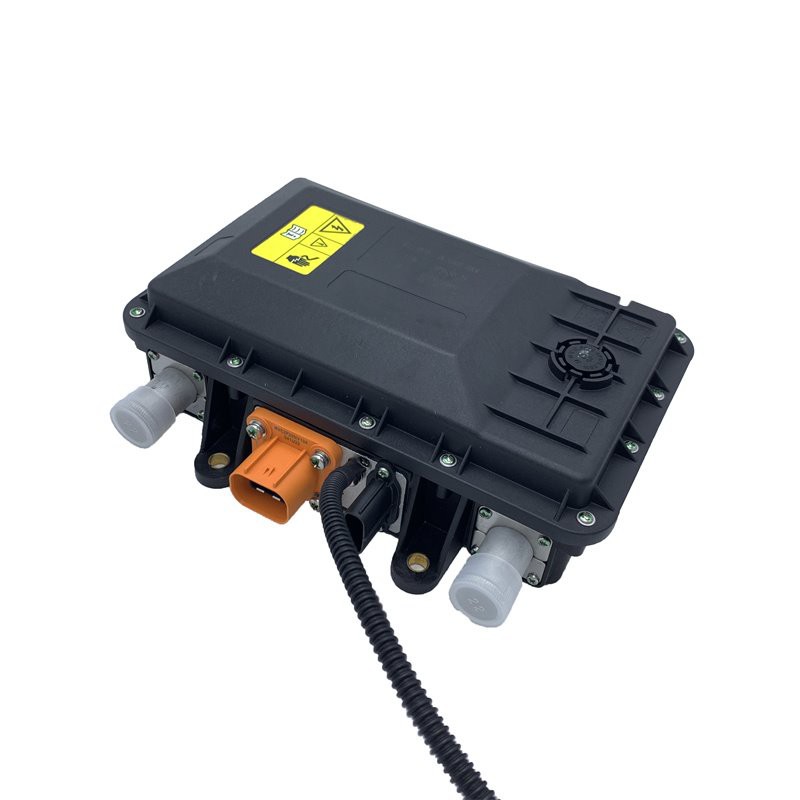

10kw EV PTC Coolant Heater
1、Product Introduction
PTC water heaters provide cab heat for New Energy vehicles and meet safe de-icing and demisting standards. At the same time, it provides heat for other vehicles (e.g. batteries) that require air conditioning.
2、Product Parameter
| Model | WPTC07-1 | WPTC07-2 |
| Rated power (kw) | 10KW±10%@20L/min，Tin=0℃ | |
| OEM Power(kw) | 6KW/7KW/8KW/9KW/10KW | |
| Rated Voltage(VDC) | 350v | 600v |
| Working Voltage | 250~450v | 450~750v |
| Controller low voltage (V) | 9-16 or 18-32 | |
| Communication protocol | CAN | |
| Power adjust method | Gear Control | |
| Connector IP ratng | IP67 | |
| Medium type | Water: ethylene glycol /50：50 | |
| Overall dimension (L*W*H) | 236*147*83mm | |
| Installation dimension | 154 (104)*165mm | |
| Joint dimension | φ20mm | |
| High voltage connector model | HVC2P28MV102, HVC2P28MV104 (Amphenol) | |
| Low voltage connector model | A02-ECC320Q60A1-LVC-4(A) (Sumitomo adaptive drive module) | |
3、Product Details
4、Precautions for use of PTC water heating heater
4.1 After the heater is connected correctly, it is recommended to turn on the low-voltage power first and then the high-voltage power when powering on; when powering off, turn off the high-voltage power first and then the low-voltage power.
4.2 The water flow in the water cycle is ≥4L/min, if the flow is too low, it will cause frequent temperature protection.
5、Appliction
